Bobcat
/
E80
/

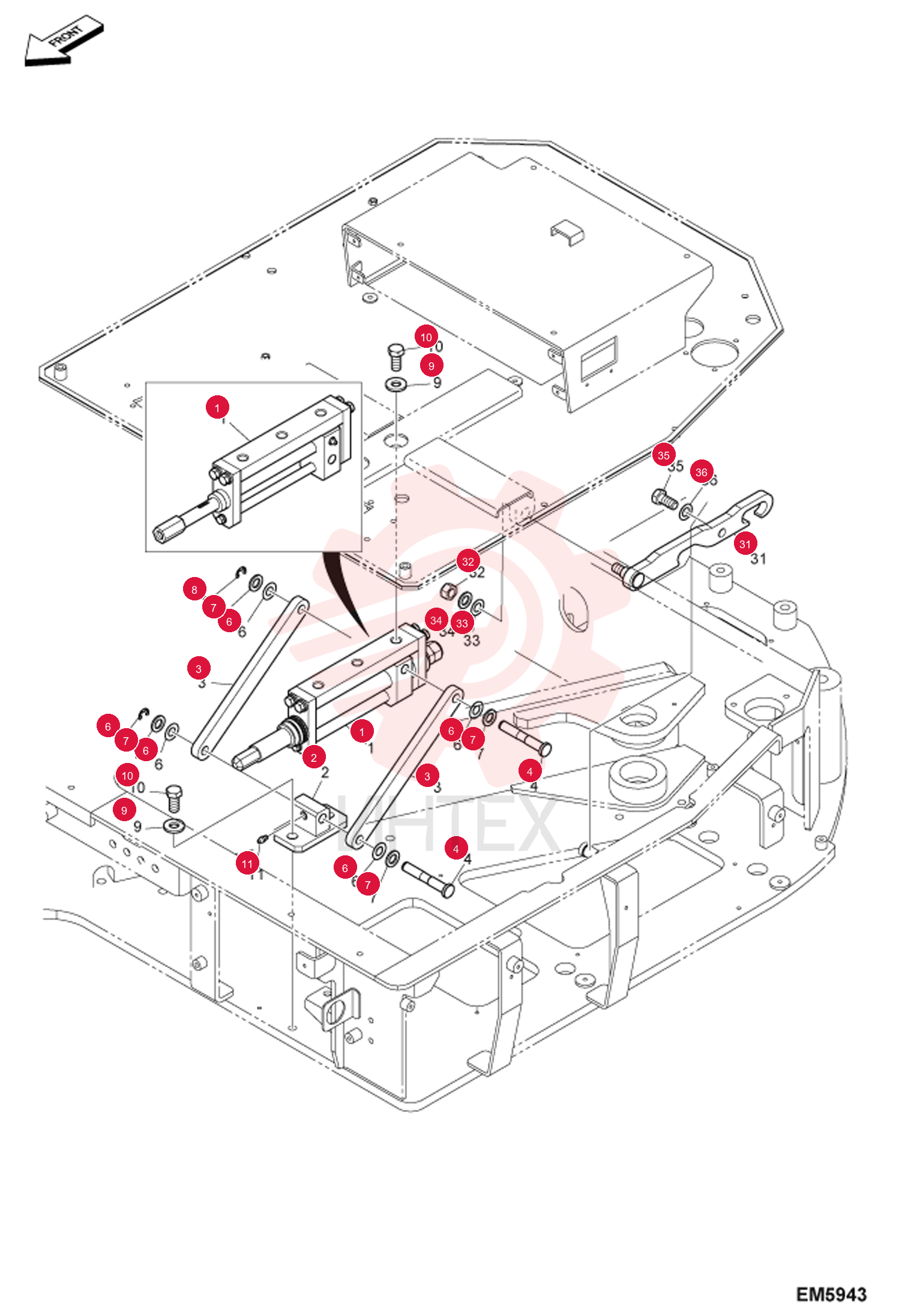

PLATE ASSEMBLY 7013288

PLATE ASSEMBLY 7013288

PLATE ASSEMBLY 7013288

1 7013288

  • 7013288 - PLATE ASSEMBLY

2 7006206

  • 7006206 - PLATE ASSEMBLY

3 7006136

  • 7006136 - BRACKET

4 7013241

  • 7013241 - LINK

5 7006137

  • 7006137 - LINK

6 7006138

  • 7006138 - PIN

7 7004497

  • 7004497 - SHIM

8 7007823

  • 7007823 - WASHER PLAIN

9 7007890

  • 7007890 - RING
  • RETAINER

10 7004519

  • 7004519 - WASHER

11 7007647

  • 7007647 - BOLT M16X2.0X35

12 6694227

  • 6694227 - FITTING
  • GREASE
  • Was 7010247

13 7006362

  • 7006362 - BAR

14 7013242

  • 7013242 - BAR

15 7004566

  • 7004566 - NUT

16 7005659

  • 7005659 - SHIM

17 7007823

  • 7007823 - WASHER PLAIN

18 7007647

  • 7007647 - BOLT M16X2.0X35

19 7004469

  • 7004469 - WASHER
