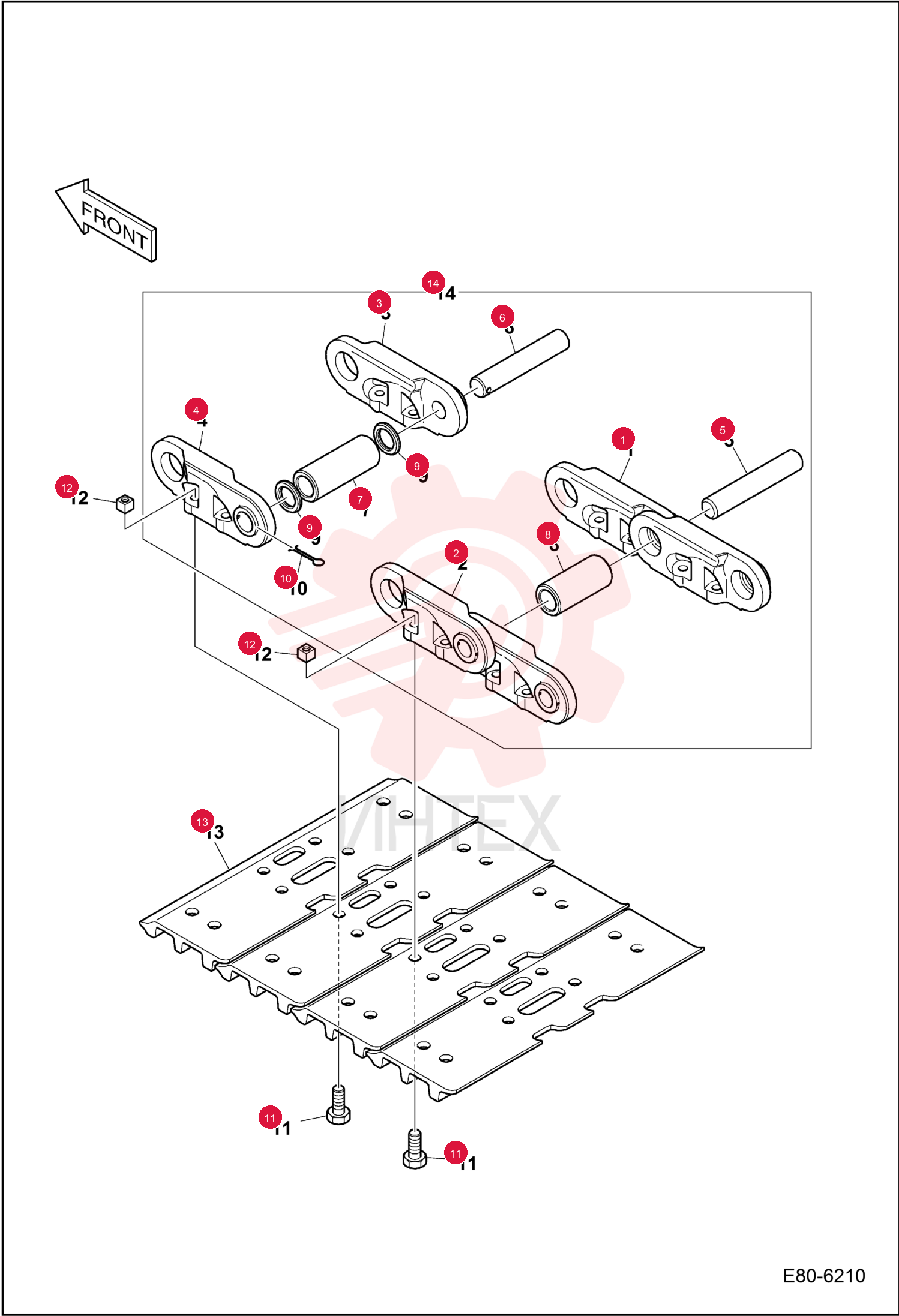

TRACK ASSEMBLY 7021921 (2)

TRACK ASSEMBLY 7021921 (2)

TRACK ASSEMBLY 7021921 (2)

1 7021921

  • 7021921 - TRACK ASSEMBLY
  • Was 7008209

2 7008156

  • 7008156 - LINK
  • TRACK RH

3 7008153

  • 7008153 - LINK
  • TRACK LH

4 7008154

  • 7008154 - LINK
  • MASTER RH

5 7008155

  • 7008155 - LINK
  • MASTER LH

6 7008139

  • 7008139 - PIN
  • TRACK

7 7008140

  • 7008140 - PIN
  • MASTER

8 7008134

  • 7008134 - BUSHING
  • TRACK

9 7008135

  • 7008135 - BUSHING
  • MASTER

10 7008136

  • 7008136 - SPACER

11 7008141

  • 7008141 - PIN
  • COTTER

12 7008137

  • 7008137 - BOLT

13 7008138

  • 7008138 - NUT

14 7024533

  • 7024533 - SHOE
  • Was 7008157

15 7349627

  • 7349627 - LINK ASSEMBLY
  • Ref. 1-10
