Bobcat
/
E80
/

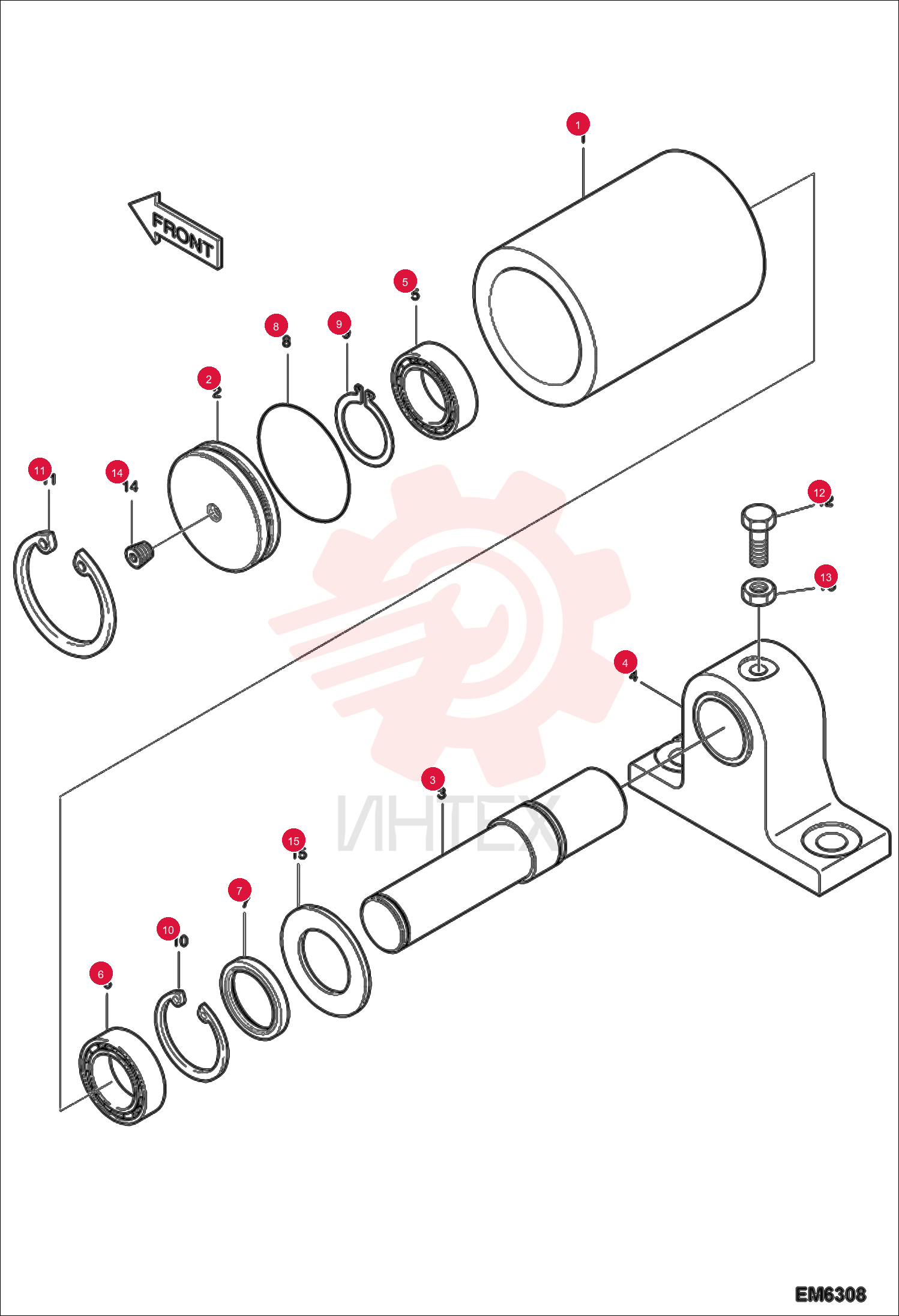

ROLLER,UPPER 7012275

ROLLER,UPPER 7012275

ROLLER,UPPER 7012275

1 7012275

  • 7012275 - ROLLER
  • UPPER
  • W/Ref. 2-14 - Was 7006091

2 7007865

  • 7007865 - BEARING BALL

3 7007866

  • 7007866 - BEARING BALL

4 7003941

  • 7003941 - SEAL OIL

5 7007938

  • 7007938 - O-RING

6 7007876

  • 7007876 - RING SNAP

7 7007867

  • 7007867 - RING SNAP

8 7007887

  • 7007887 - RING SNAP

9 7007639

  • 7007639 - BOLT

10 7007804

  • 7007804 - NUT

11 7004671

  • 7004671 - PLUG PT 1/8

12 7015432

  • 7015432 - PLATE
