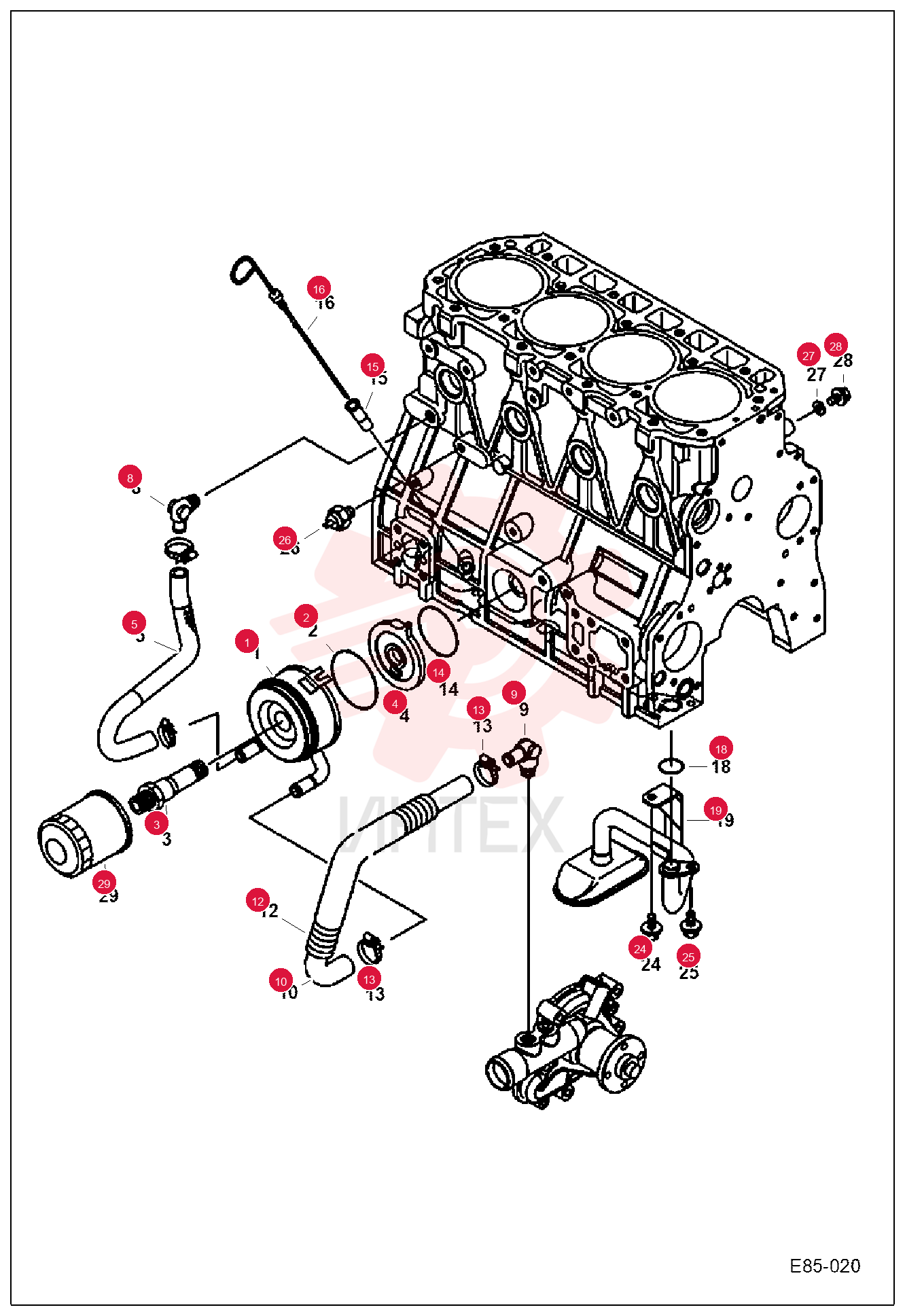

OIL COOLER 7028928

OIL COOLER 7028928

OIL COOLER 7028928

1 7028928

  • 7028928 - OIL COOLER

2 7029245

  • 7029245 - O-RING

3 7029429

  • 7029429 - STUD

4 7029281

  • 7029281 - PLATE

5 7028812

  • 7028812 - HOSE OIL

6 7029003

  • 7029003 - FITTING
  • ELBOW

7 7029004

  • 7029004 - FITTING
  • ELBOW

8 7029089

  • 7029089 - HOSE
  • WATER

9 7029470

  • 7029470 - TUBE

10 7028881

  • 7028881 - CLAMP

11 7029246

  • 7029246 - O-RING

12 7004418

  • 7004418 - GUIDE OIL GAUGE

13 7028992

  • 7028992 - DIPSTICK
  • OIL ENG

14 7007913

  • 7007913 - O-RING
  • Was 7007912

15 7007051

  • 7007051 - TUBELINE ASSY

16 7004093

  • 7004093 - BOLT M8X12

17 7004086

  • 7004086 - BOLT PLATED M8X16

18 7005076

  • 7005076 - SWITCH OIL PRESS

19 7004019

  • 7004019 - WASHER SEAL

20 7004093

  • 7004093 - BOLT M8X12

21 7010347

  • 7010347 - FILTER
  • OIL
