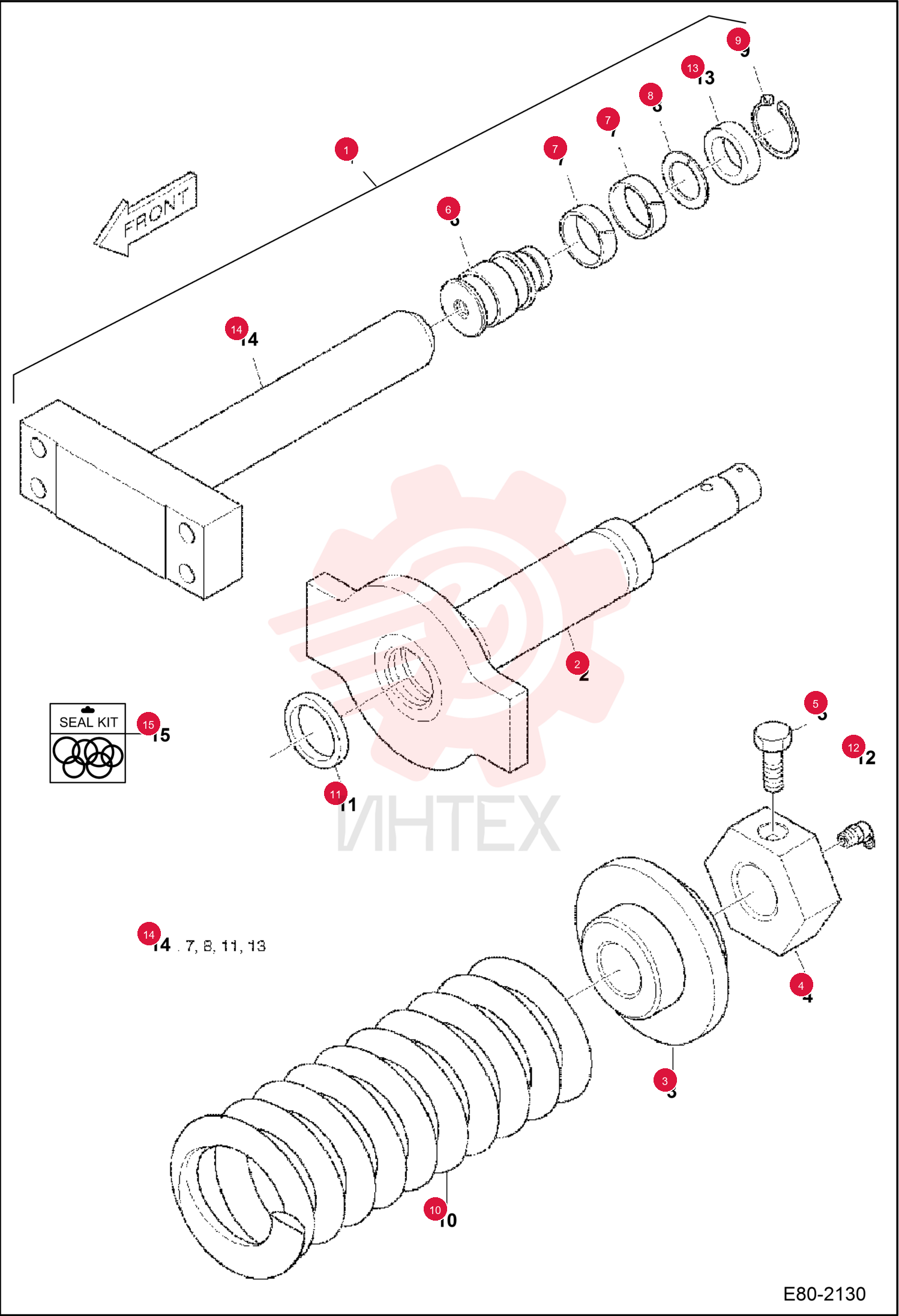

SPRING ASSY,TRACK 7012253

SPRING ASSY,TRACK 7012253

SPRING ASSY,TRACK 7012253

1 7012253

  • 7012253 - SPRING ASSY
  • TRACK
  • W/Ref. 2-14 - Was 7004598

2 7004559

  • 7004559 - NUT

3 7004526

  • 7004526 - BOLT

4 7007876

  • 7007876 - RING SNAP

5 7006795

  • 7006795 - SPRING

6 7010460

  • 7010460 - VALVE
  • GREASE
  • Was 7004977

7 7020395

  • 7020395 - SEAL KIT
  • Ref. 7
  • 8
  • 11 & 13 - Was 7004597
