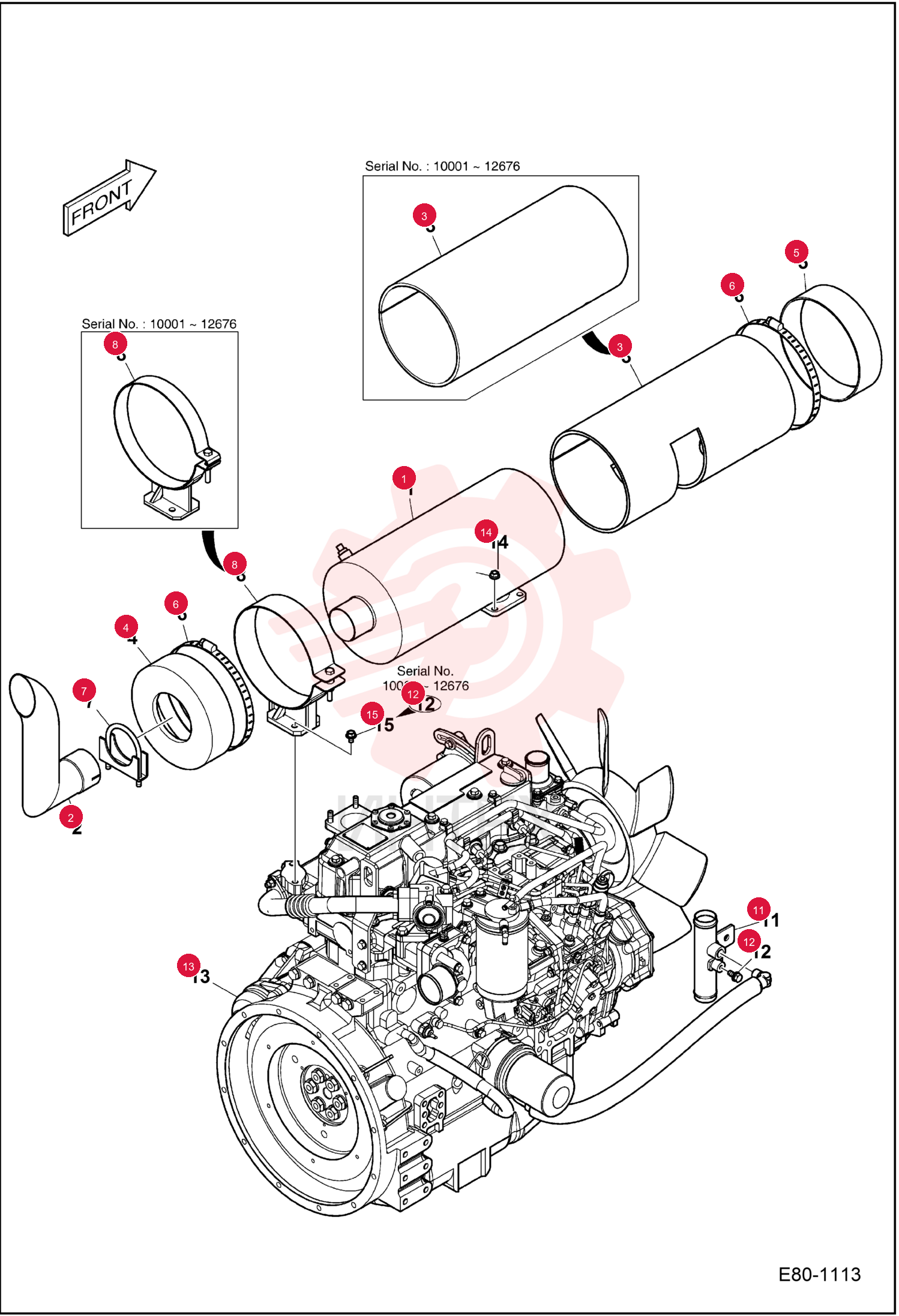

MUFFLER 7012732

MUFFLER 7012732

MUFFLER 7012732

1 7012732

  • 7012732 - MUFFLER

2 7012754

  • 7012754 - PIPE
  • EXHAUST
  • Was 7022839

3 7022839

  • 7022839 - PIPE
  • TUBE EXHAUST

4 7012737

  • 7012737 - INSULATION EXHAUST

5 7283706

  • 7283706 - INSULATION

6 7012738

  • 7012738 - INSULATION EXHAUST

7 7012739

  • 7012739 - INSULATION EXHAUST

8 7012740

  • 7012740 - CLAMP HOSE

9 7282925

  • 7282925 - CLAMP

10 7012735

  • 7012735 - CLAMP

11 7012734

  • 7012734 - BAND MUFFLER

12 7283707

  • 7283707 - CLAMP
  • MUFFLER

13 7012736

  • 7012736 - PIPE WATER

14 7005629

  • 7005629 - BOLT

15 7012753

  • 7012753 - ENGINE ASSEMBLY

16 7004561

  • 7004561 - NUT

17 7024711

  • 7024711 - BOLT
