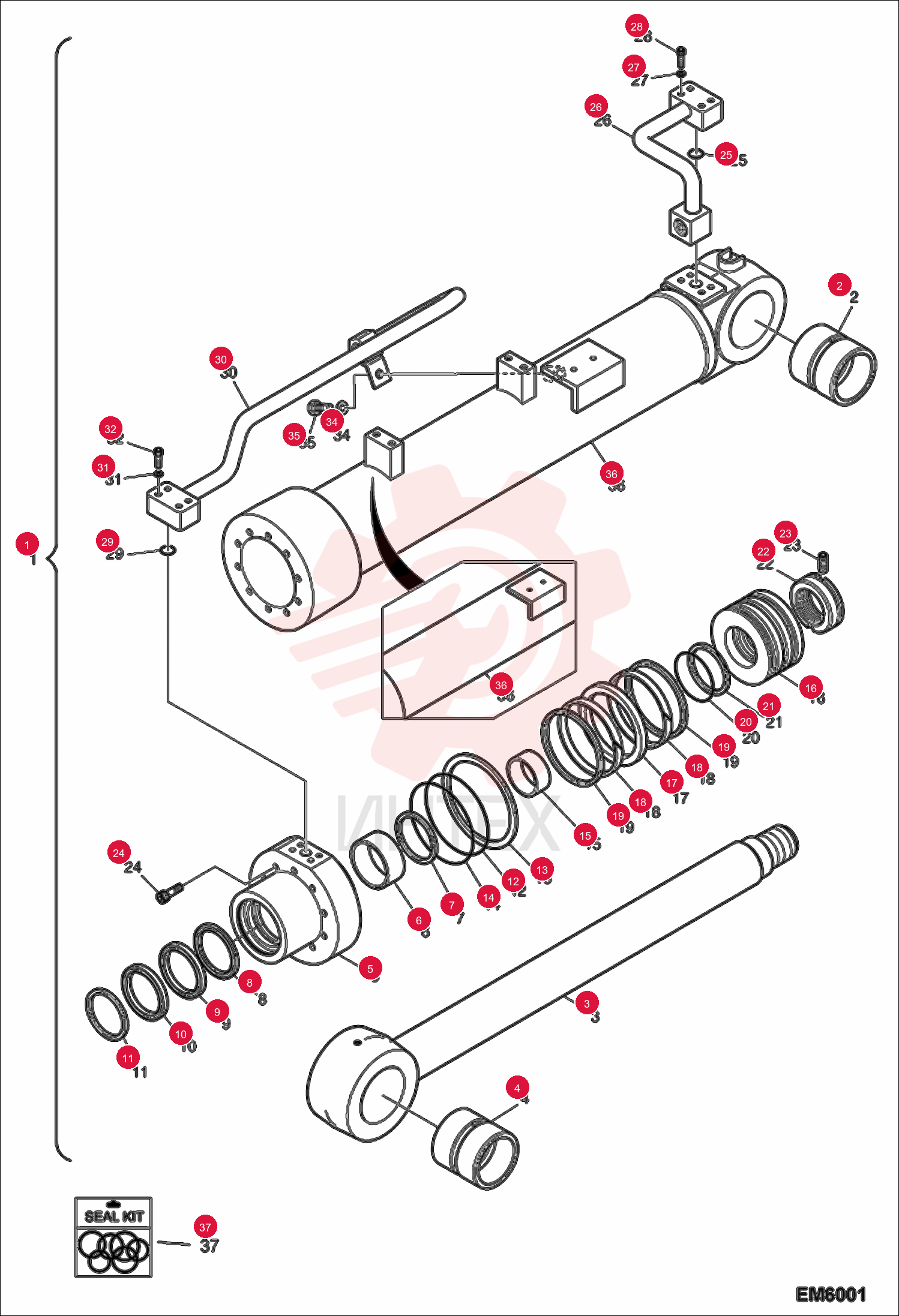

CYLINDER 7027065 (2)
1 7027065
- 7027065 - CYLINDER
- W/Ref. 2-36 - Was 7022860
2 7006004
- 7006004 - BUSHING
3 7029340
- 7029340 - ROD
- CYL
- Was 7007537
4 7006004
- 7006004 - BUSHING
5 7028964
- 7028964 - HEAD
- CYL HYD
- Was 7027066
6 7003708
- 7003708 - BUSHING DD
7 7003864
- 7003864 - RING RETAINING
8 7003948
- 7003948 - SEAL BUFFER
9 7003797
- 7003797 - SEAL
10 7003789
- 7003789 - WIPER DUST
11 7006832
- 7006832 - RING RETAINING
12 7007950
- 7007950 - O-RING
13 7006833
- 7006833 - RING BACK-UP
14 7007951
- 7007951 - O-RING
15 7006933
- 7006933 - RING CUSHION
16 7007512
- 7007512 - PISTON
17 7003779
- 7003779 - RING GLYD
18 7003783
- 7003783 - RING WEAR
19 7006834
- 7006834 - RING DUST
20 7003754
- 7003754 - O-RING
21 7003765
- 7003765 - RING BACK-UP
22 7003735
- 7003735 - NUT PISTON
23 7022907
- 7022907 - NUT
24 7007792
- 7007792 - SCREW SET
25 7022908
- 7022908 - SCREW
26 7007775
- 7007775 - BOLT HEX SOCKET
27 7007919
- 7007919 - O-RING
28 7007541
- 7007541 - TUBELINE ASSY-H
29 7022909
- 7022909 - TUBELINE HYDRAULIC
30 7007830
- 7007830 - WASHER SPRING
31 7007754
- 7007754 - BOLT SOCKET
- Was 7007753
32 7022910
- 7022910 - BOLT
33 7007913
- 7007913 - O-RING
- Was 7007912
34 7007542
- 7007542 - TUBELINE ASSY-R
35 7022911
- 7022911 - TUBELINE HYDRAULIC
36 7007829
- 7007829 - WASHER
37 7007742
- 7007742 - BOLT SOCKET
38 7007830
- 7007830 - WASHER SPRING
39 7007626
- 7007626 - BOLT
- Was 7007625
40 7022906
- 7022906 - TUBE CYLINDER
41 7022060
- 7022060 - KIT
- SEAL
- Ref. 8-10
- 12-14 & 17-21 - Was 7004992
