Bobcat
/
E80
/

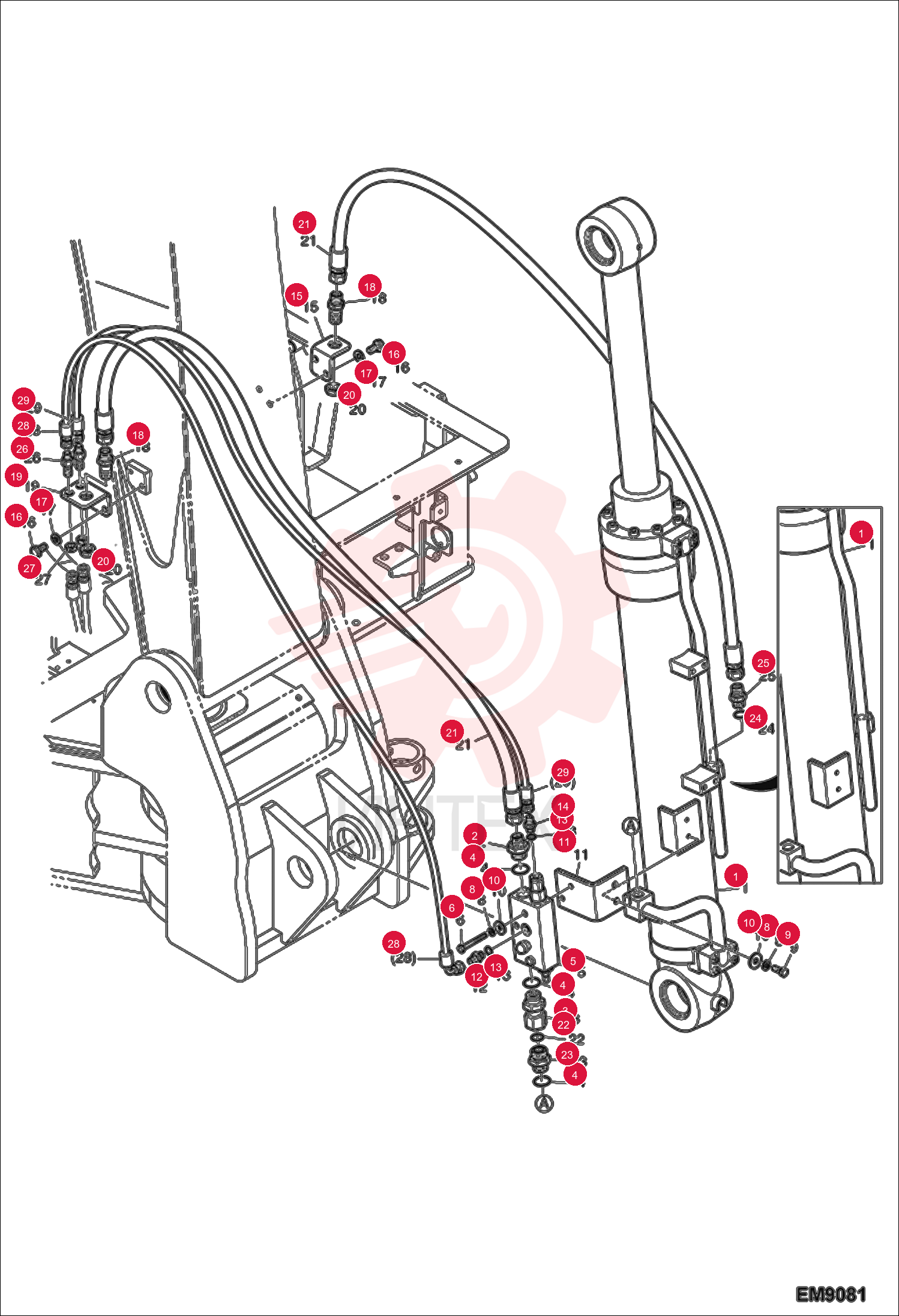

CYLINDER 7027065 (1)

CYLINDER 7027065 (1)

CYLINDER 7027065 (1)

1 7027065

  • 7027065 - CYLINDER
  • Was 7022860

2 7004686

  • 7004686 - ADAPTER

3 7005552

  • 7005552 - ADAPTER

4 7007917

  • 7007917 - O-RING

5 7281401

  • 7281401 - VALVE
  • LOCK
  • Was 7004980

6 7007663

  • 7007663 - BOLT

7 7276756

  • 7276756 - WASHER
  • Was 7007834

8 7007618

  • 7007618 - BOLT

9 7004470

  • 7004470 - WASHER PLAIN

10 7006146

  • 7006146 - BRACKET

11 7004683

  • 7004683 - ADAPTER

12 7283267

  • 7283267 - O-RING
  • Was 7007906

13 7004683

  • 7004683 - ADAPTER

14 7005925

  • 7005925 - BRACKET LH

15 7007626

  • 7007626 - BOLT

16 7007835

  • 7007835 - WASHER SPRING

17 7003950

  • 7003950 - ADAPTER

18 7006753

  • 7006753 - BRACKET RH

19 7003876

  • 7003876 - NUT

20 7015633

  • 7015633 - HOSE

21 7007960

  • 7007960 - O-RING

22 7004775

  • 7004775 - ADAPTER

23 7284557

  • 7284557 - O-RING
  • Was 7007911

24 7004699

  • 7004699 - ADAPTER

25 7005567

  • 7005567 - ADAPTER

26 7003878

  • 7003878 - NUT

27 7015634

  • 7015634 - HOSE

28 7015635

  • 7015635 - HOSE
