(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

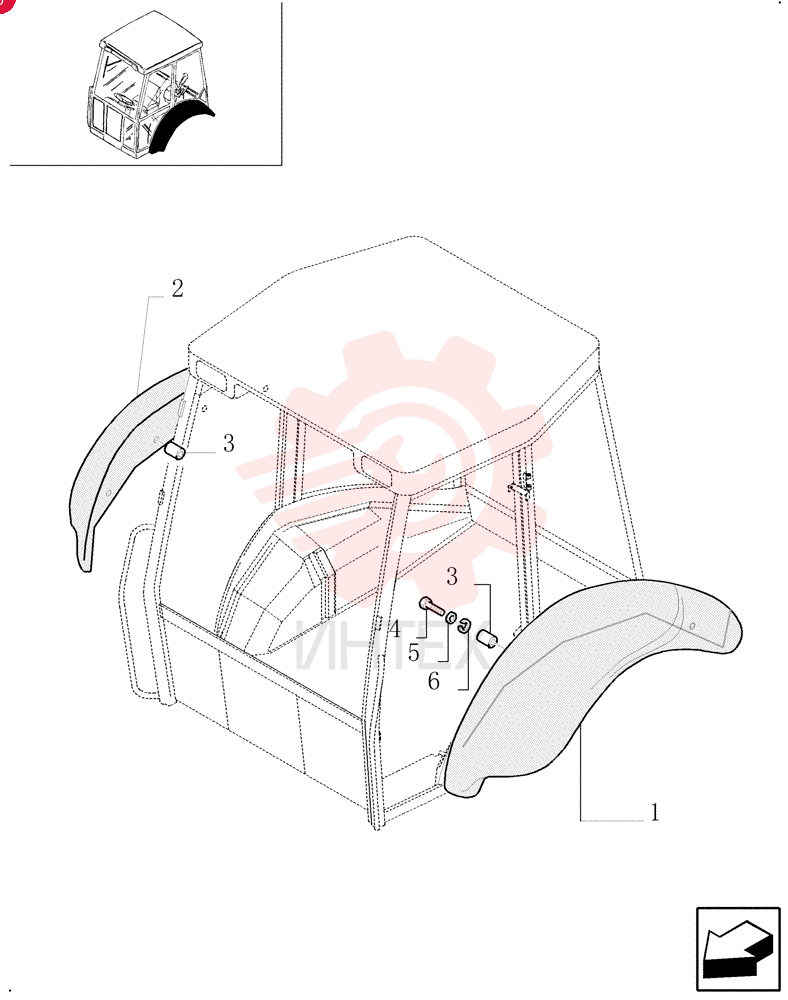

REAR FENDER 85801611

REAR FENDER 85801611

REAR FENDER 85801611

1 85801611

  • 85801611 - REAR FENDER

2 85817211

  • 85817211 - REAR FENDER

3 85801610

  • 85801610 - REAR FENDER

4 85817210

  • 85817210 - REAR FENDER

5 85812338

  • 85812338 - THREADED INSERT

6 16044124

  • 16044124 - BOLT
  • Hex
  • M8 x 1.25 x 45mm
  • Cl 8.8

7 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

8 12646204

  • 12646204 - WASHER
  • 8.15mm ID x 35mm OD x 3mm Thk
