New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

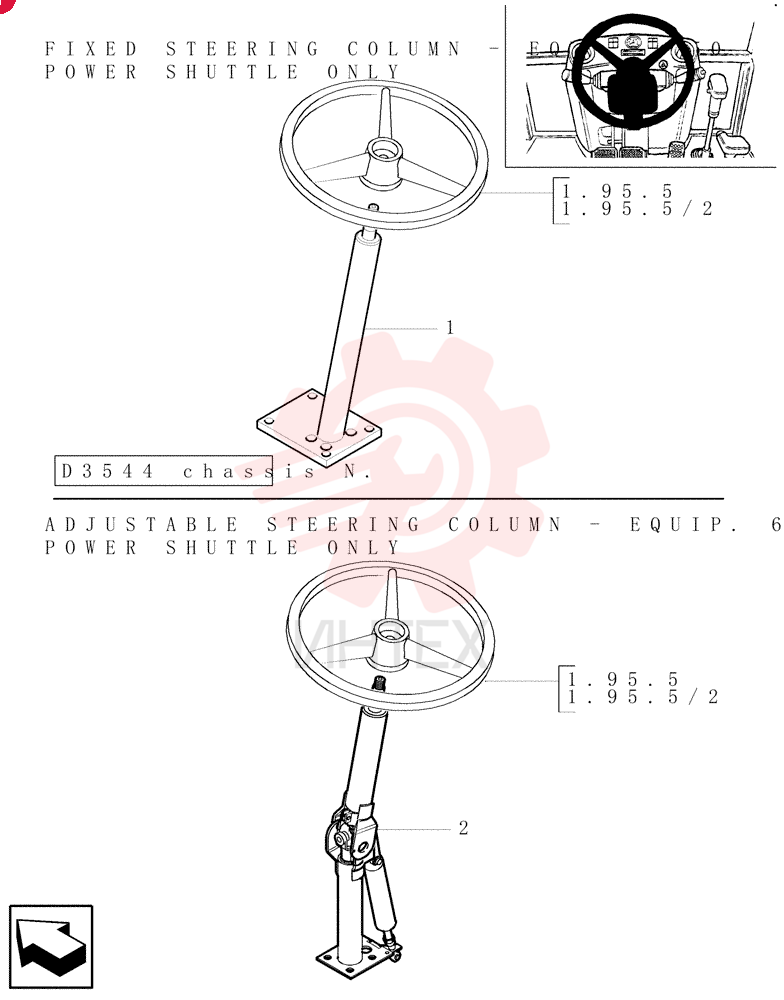

STEERING COLUMN 85801600

STEERING COLUMN 85801600

STEERING COLUMN 85801600

1 85801600

  • 85801600 - STEERING COLUMN
  • Assy (SIAC)
  • Serial Range: -31003958

2 85804706

  • 85804706 - STEERING COLUMN
  • Assy (CORAM)
  • Start Serial: 31003959

3 85805545

  • 85805545 - STEERING COLUMN
  • Assy (CORAM)
  • Incl. 3
  • 4
  • Will sub to 87560586
  • See Figure 650-651-02

4 85824197

  • 85824197 - GAS STRUT
  • Not Illustrated

5 85826261

  • 85826261 - POWER STEERING KIT
  • Not Illustrated
