New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

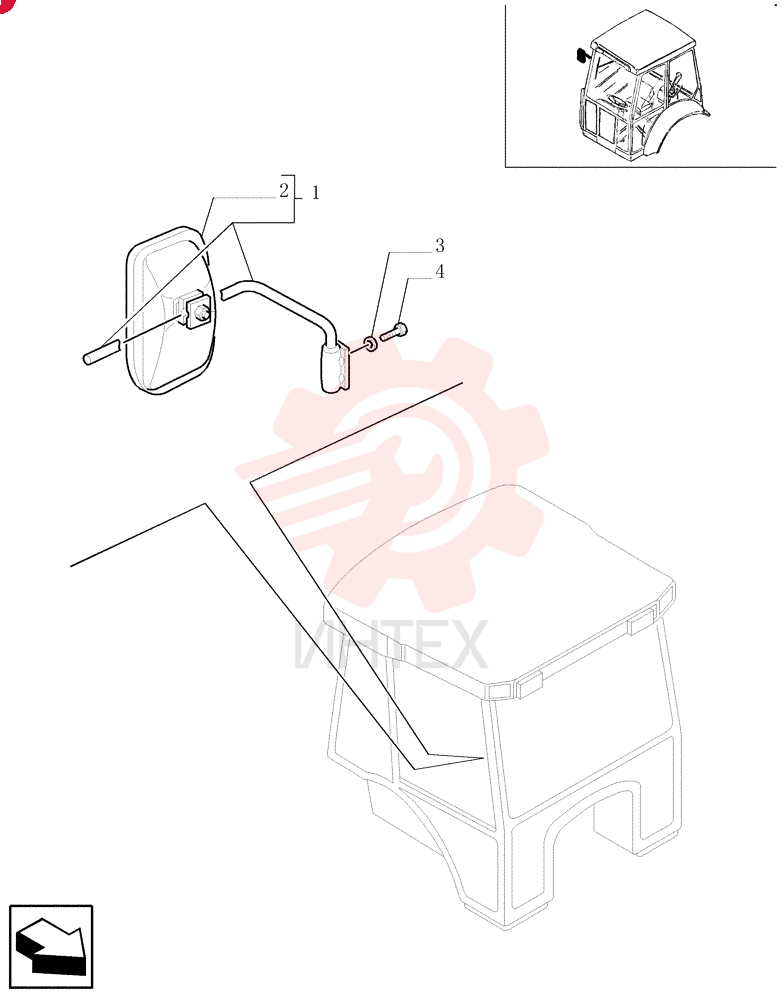

REAR VIEW MIRROR 85801974 (2)

REAR VIEW MIRROR 85801974 (2)

REAR VIEW MIRROR 85801974 (2)

1 85801974

  • 85801974 - REAR VIEW MIRROR
  • Assy
  • RH
  • Illustrated
  • Incl. 9968590 Mirror
  • Canopy Models
  • Serial Range: -C4640

2 85807931

  • 85807931 - REAR VIEW MIRROR
  • Assy
  • Incl. 85812008 Mirror
  • Cab Models
  • Start Serial: D4640

3 9968590

  • 9968590 - REAR VIEW MIRROR
  • RH
  • ROPS Canopy Models
  • Serial Range: -C4640

4 85812008

  • 85812008 - REAR VIEW MIRROR
  • RH
  • Cab Models
  • Start Serial: D4640

5 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk
  • Serial Range: -C4640

6 10902127

  • 10902127 - BOLT
  • M6 x 14
  • Serial Range: -C4640
