New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

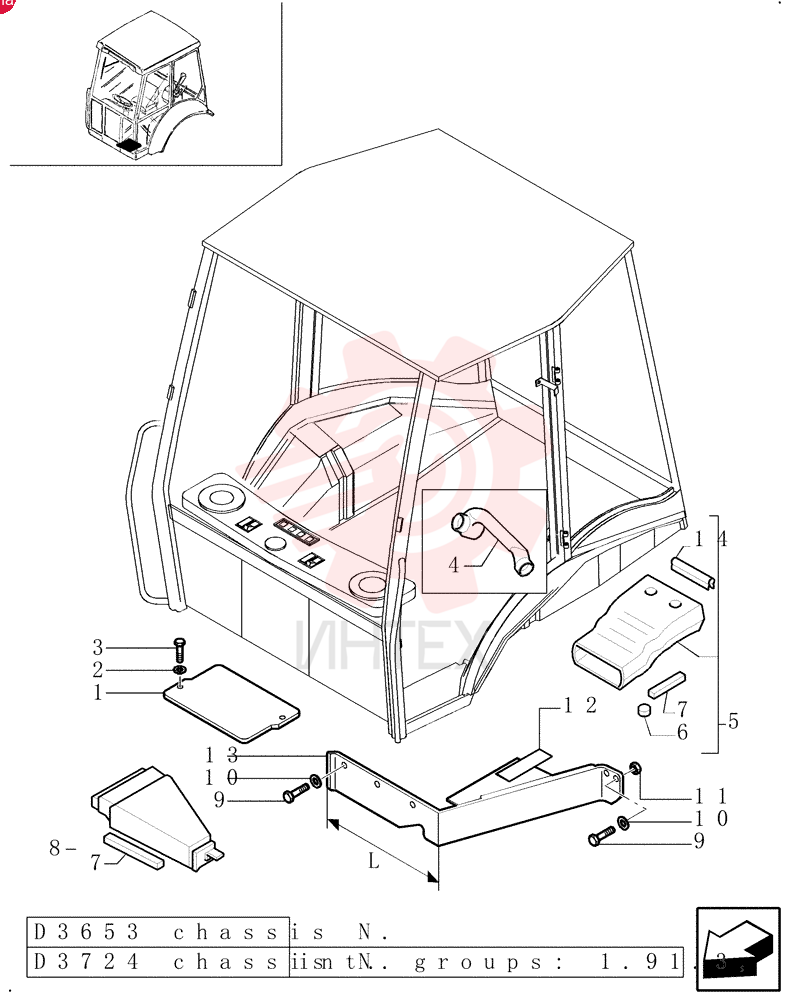

PLATE 85801968

PLATE 85801968

PLATE 85801968

1 85801968

  • 85801968 - PLATE

2 11198071

  • 11198071 - BELLEVILLE WASHER
  • M8 Bolt Size x 15mm OD x 1.8mm Thk

3 16043424

  • 16043424 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

4 85805202

  • 85805202 - AIR DUCT

5 85805201

  • 85805201 - AIR DUCT

6 85806210

  • 85806210 - PLUG

7 85806023

  • 85806023 - SEALING STRIP

8 85805200

  • 85805200 - AIR DUCT

9 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

10 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

11 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8

12 85802284

  • 85802284 - RUBBER SEAL

13 85804423

  • 85804423 - HOUSING

14 85805437

  • 85805437 - HOUSING

15 85812021

  • 85812021 - SEAL
  • 555mm L x 25mm W x 13mm Thk
