New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

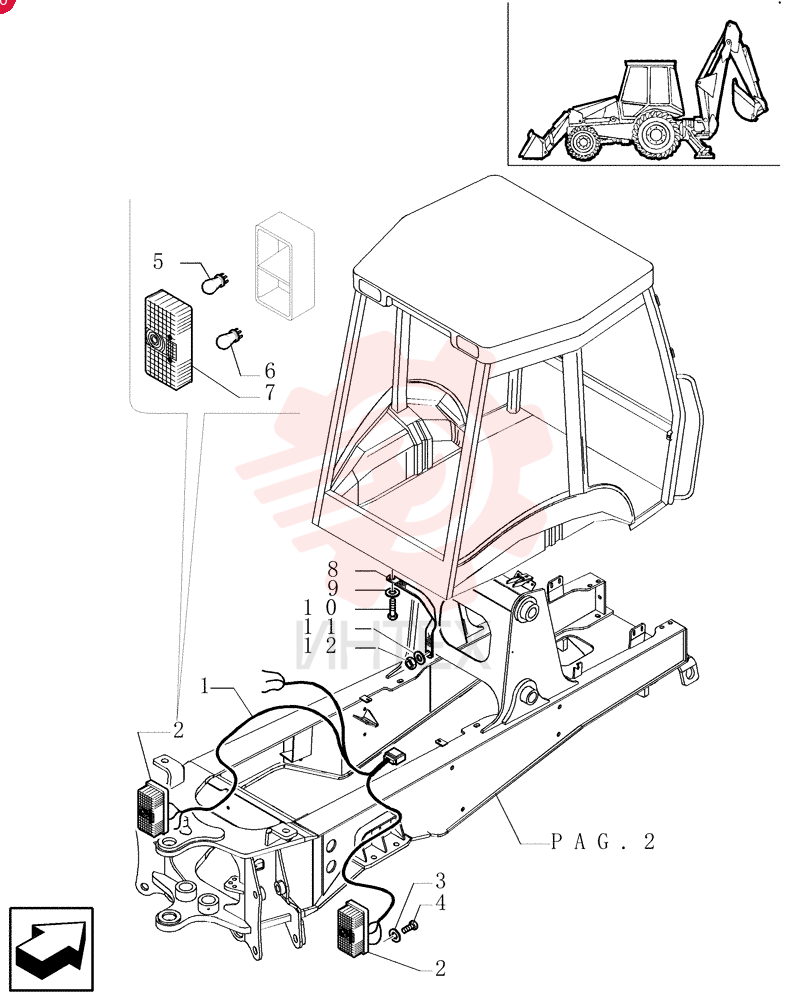

WIRE HARNESS 85802374

WIRE HARNESS 85802374

WIRE HARNESS 85802374

1 85802374

  • 85802374 - WIRE HARNESS

2 85803854

  • 85803854 - TAIL LAMP
  • 12V
  • 21W
  • Amber/Red

3 12647601

  • 12647601 - WASHER
  • 6.15mm ID x 16mm OD x 2mm Thk

4 14305324

  • 14305324 - HEX SOC SCREW
  • M6 x 20mm
  • Cl 8.8

5 9970121

  • 9970121 - BULB

6 9970122

  • 9970122 - BULB

7 9969267

  • 9969267 - LENS

8 85803884

  • 85803884 - GROUND STRAP

9 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

10 16043024

  • 16043024 - SCREW
  • Hex
  • M8 x 1.25 x 12mm
  • Cl 8.8
  • Full Thd

11 12637811

  • 12637811 - WASHER

12 10788811

  • 10788811 - NUT
  • M5
  • Cl 8
