(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

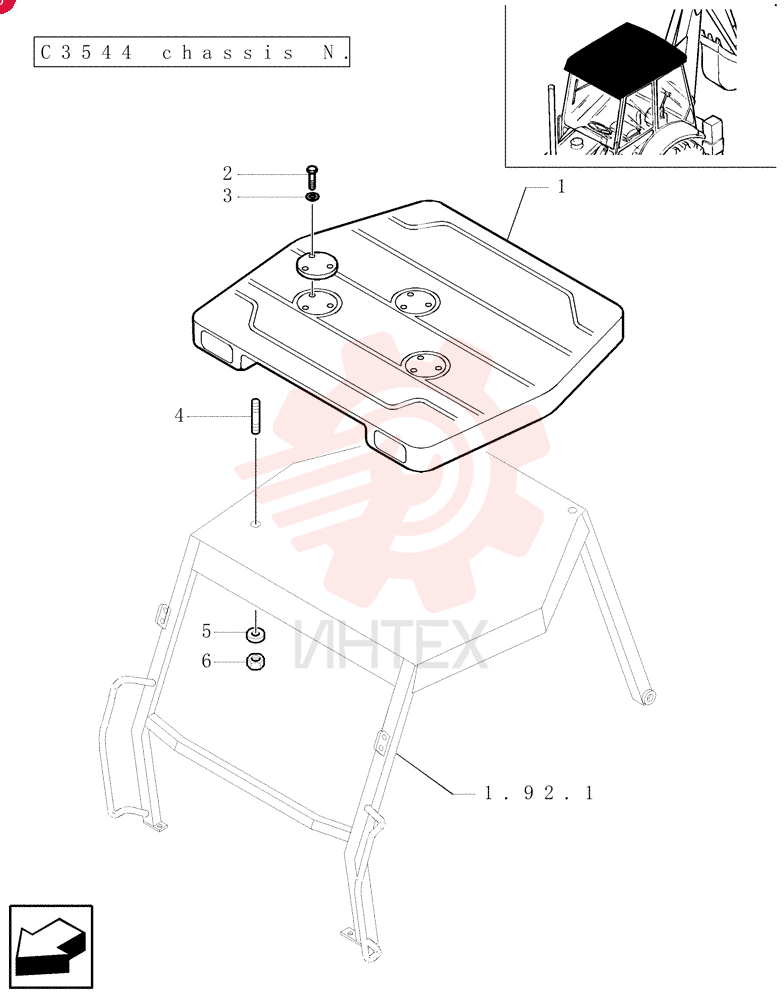

ROOF 85802459

ROOF 85802459

ROOF 85802459

1 85802459

  • 85802459 - ROOF

2 13276017

  • 13276017 - SCREW
  • Pozidriv Pan Hd
  • M6 x 12mm
  • Cl 5.8
  • Full Thd

3 10519404

  • 10519404 - WASHER
  • 6.4mm ID x 11.95mm OD x 1.6mm Thk

4 13516821

  • 13516821 - STUD

5 12646904

  • 12646904 - WASHER
  • 12.2mm ID x 28mm OD x 3mm Thk

6 14048221

  • 14048221 - NUT
  • M8 x 1.25
  • Cl 10
