(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

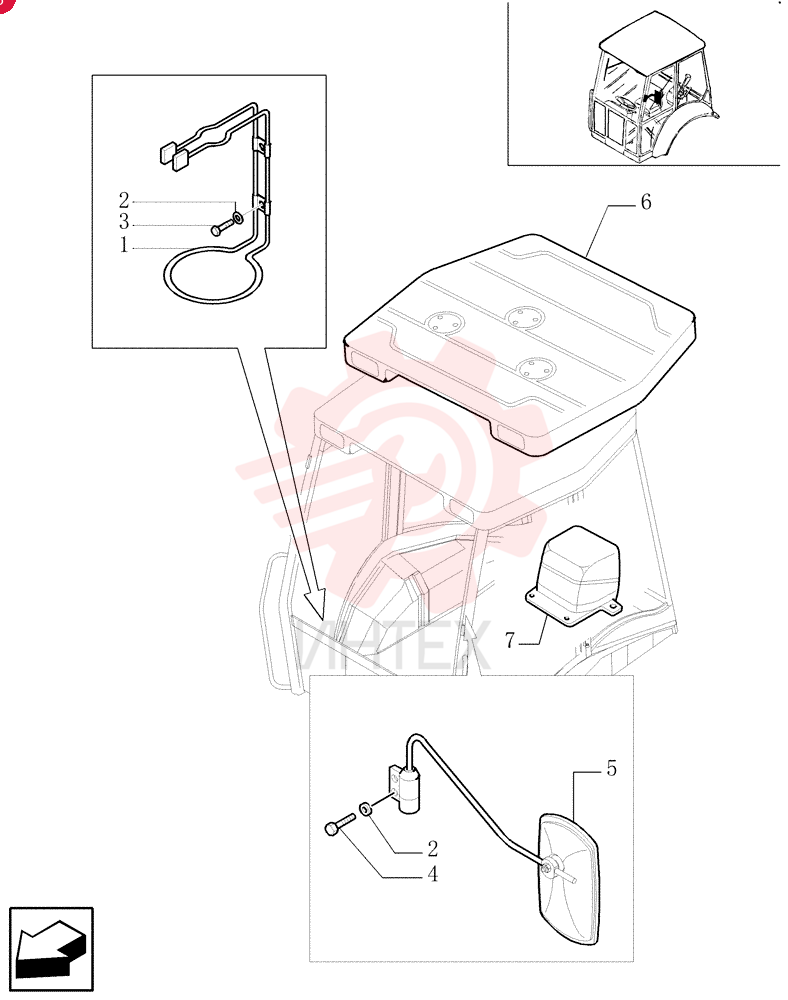

SUPPORT 85802276

SUPPORT 85802276

SUPPORT 85802276

1 85802276

  • 85802276 - SUPPORT

2 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

3 13275911

  • 13275911 - SCREW
  • Pozidriv Pan Hd
  • M6 x 10mm

4 10902127

  • 10902127 - BOLT

5 85801975

  • 85801975 - REAR VIEW MIRROR

6 85805758

  • 85805758 - ROOF

7 85807915

  • 85807915 - CONSOLE
