(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

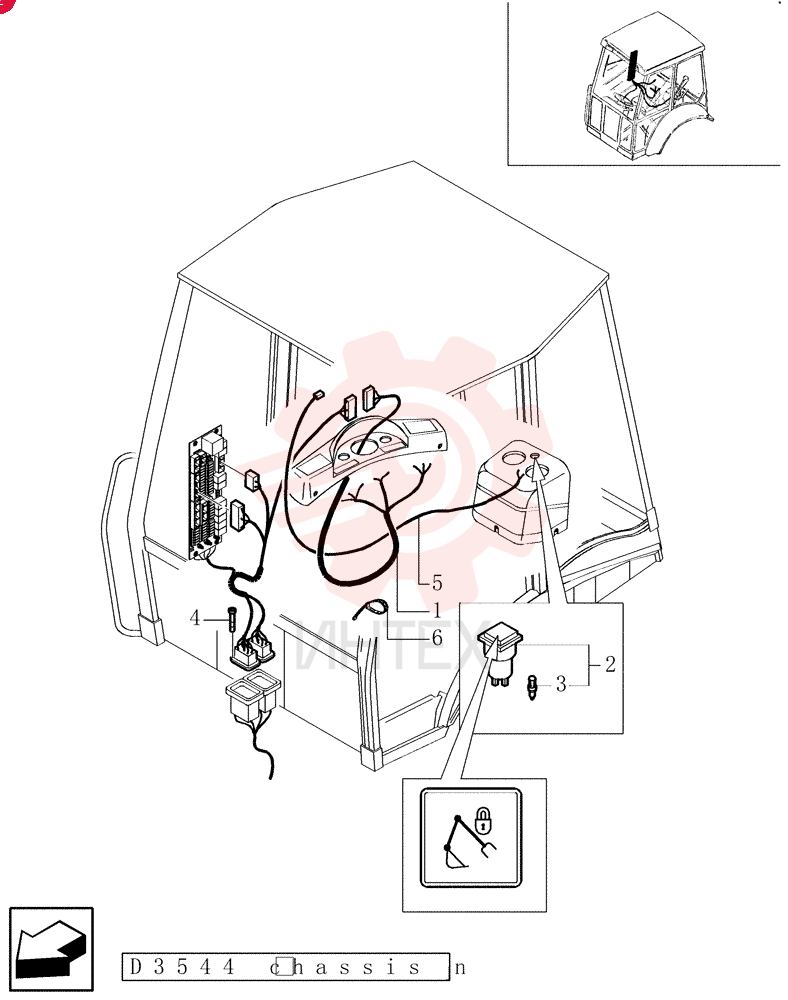

WIRE HARNESS 85802591

WIRE HARNESS 85802591

WIRE HARNESS 85802591

1 85802591

  • 85802591 - WIRE HARNESS

2 85802160

  • 85802160 - WARNING LIGHT

3 14143990

  • 14143990 - BULB
  • 12V
  • 3W

4 13272214

  • 13272214 - SCREW
  • Pozidriv Pan Hd
  • M4 x 16mm
  • Cl 5.8
  • Full Thd

5 85802596

  • 85802596 - WIRE HARNESS

6 85804729

  • 85804729 - WIRE HARNESS

7 5143428

  • 5143428 - CABLE TIE
  • 116mm L
