(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

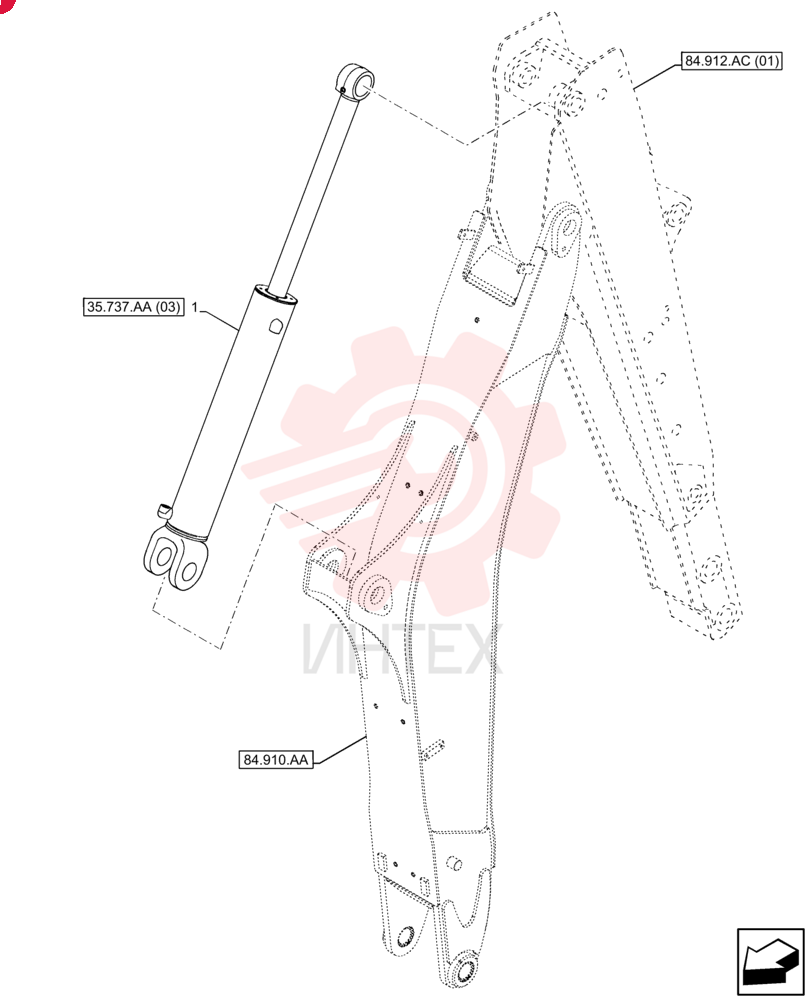

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (2)

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (2)

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (2)

1 47401832

  • 47401832 - HYDRAULIC CYLINDER
  • Double Acting
  • 63.5mm Rod
  • 127mm Bore
  • 701mm Stroke

2 47401832R

  • 47401832R - REMAN-HYD CYLINDER

3 47401832C

  • 47401832C - CORE-HYD CYLINDER
