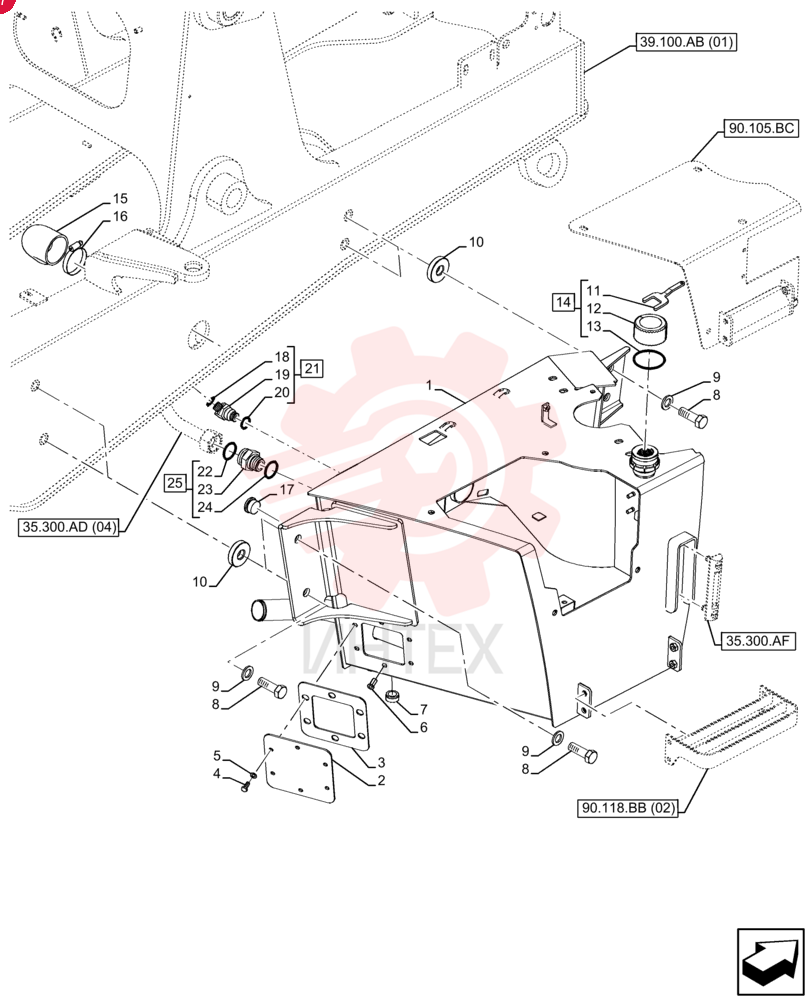

TANK 47473617
1 47473617
- 47473617 - TANK
2 47559574
- 47559574 - PLATE
3 47568287
- 47568287 - GASKET
- 180mm W x 180mm L x 3.2mm Thk
4 120104
- 120104 - BOLT
- Hex
- M8 x 1.25 x 20mm
- Cl 8.8
5 86624184
- 86624184 - WASHER
- 9mm ID x 16mm OD x 1.6mm Thk
6 379184A1
- 379184A1 - RIVET
- Flng
- 10.97mm OD x 27.5mm L
7 86625138
- 86625138 - PLUG
- 7/18" - 14
8 374890
- 374890 - BOLT
- Hex
- M20 x 2.5 x 60mm
- Cl 8.8
- Full Thd
9 86625260
- 86625260 - WASHER
- 21.8mm ID x 37.5mm OD x 4mm Thk
10 47574412
- 47574412 - SPACER
11 85802580
- 85802580 - SPECIAL WRENCH
12 NSS
- NSS - NOT SOLD SEPARAT
13 85813351
- 85813351 - O-RING
14 85813350
- 85813350 - SERVICE KIT
15 47513007
- 47513007 - HOSE
- 70mm ID x 100mm L
16 87313786
- 87313786 - HOSE CLAMP
- Worm Gear
- 70mm/90mm x 12mm W
- CST ZND
17 87363628
- 87363628 - PLUG
- 1 - 5/16" - 12
18 9992298
- 9992298 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
19 NSS
- NSS - NOT SOLD SEPARAT
20 167269
- 167269 - O-RING
- 0.097" Thk x 0.755" ID
- -910
- Cl 6
- 90 Duro
21 87026877
- 87026877 - ELBOW
- 45 Degree
- 13/16"-16 x 7/8"-14
- Adj
- ORFS
22 89824051
- 89824051 - O-RING
- 0.07" Thk x 1.176" ID
- -25
- Cl 6
- 90 Duro
23 NSS
- NSS - NOT SOLD SEPARAT
24 167268
- 167268 - O-RING
- 0.116" Thk x 1.171" ID
- -916
- Cl 6
- 90 Duro
25 85802801
- 85802801 - HYD CONNECTOR
- 1-11/16-12 ORFS x 1-5/16-12 ORB
