New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

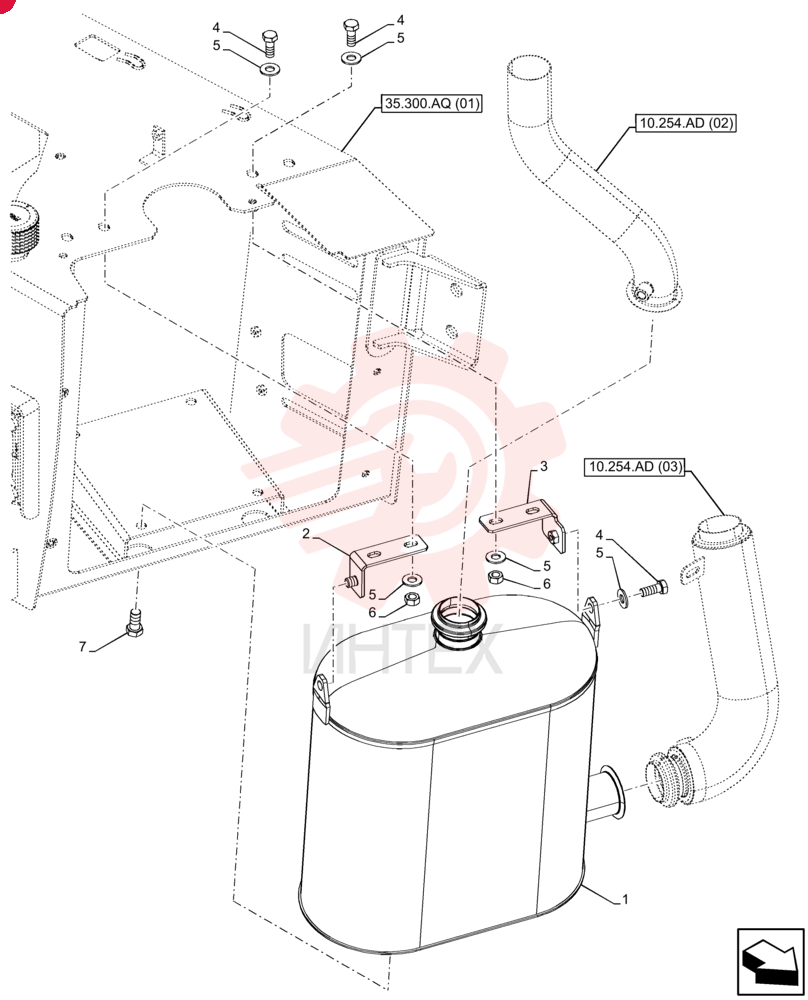

SPARK ARRESTER 47524982

SPARK ARRESTER 47524982

SPARK ARRESTER 47524982

1 47524982

  • 47524982 - SPARK ARRESTER

2 47801967

  • 47801967 - BRACKET

3 47801968

  • 47801968 - BRACKET

4 43139

  • 43139 - BOLT
  • M10 x 1.5 x 25mm
  • Cl 8.8

5 86625253

  • 86625253 - WASHER
  • 11mm ID x 24mm OD x 2mm Thk

6 86500689

  • 86500689 - NUT
  • M10 x 1.5
  • Cl 10

7 300388

  • 300388 - BOLT
  • Hex
  • M12 x 1.75 x 25mm
  • Cl 8.8
