(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

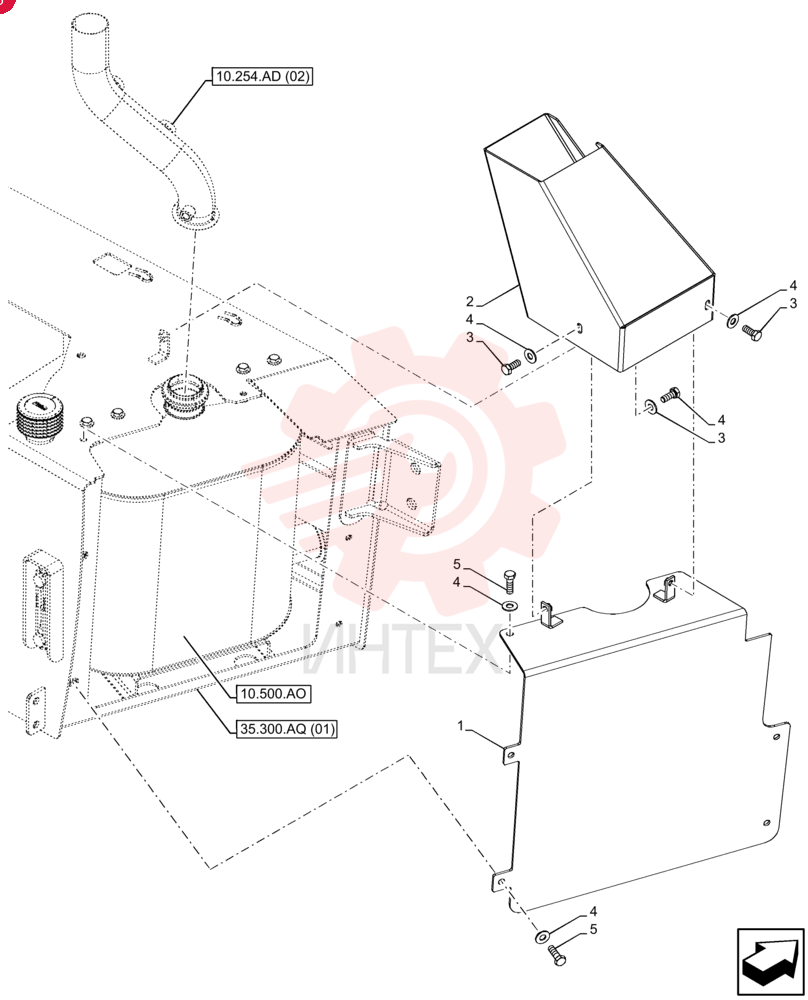

PLATE 47484540

PLATE 47484540

PLATE 47484540

1 47484540

  • 47484540 - PLATE

2 47821669

  • 47821669 - SHIELD

3 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

4 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk

5 43127

  • 43127 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
