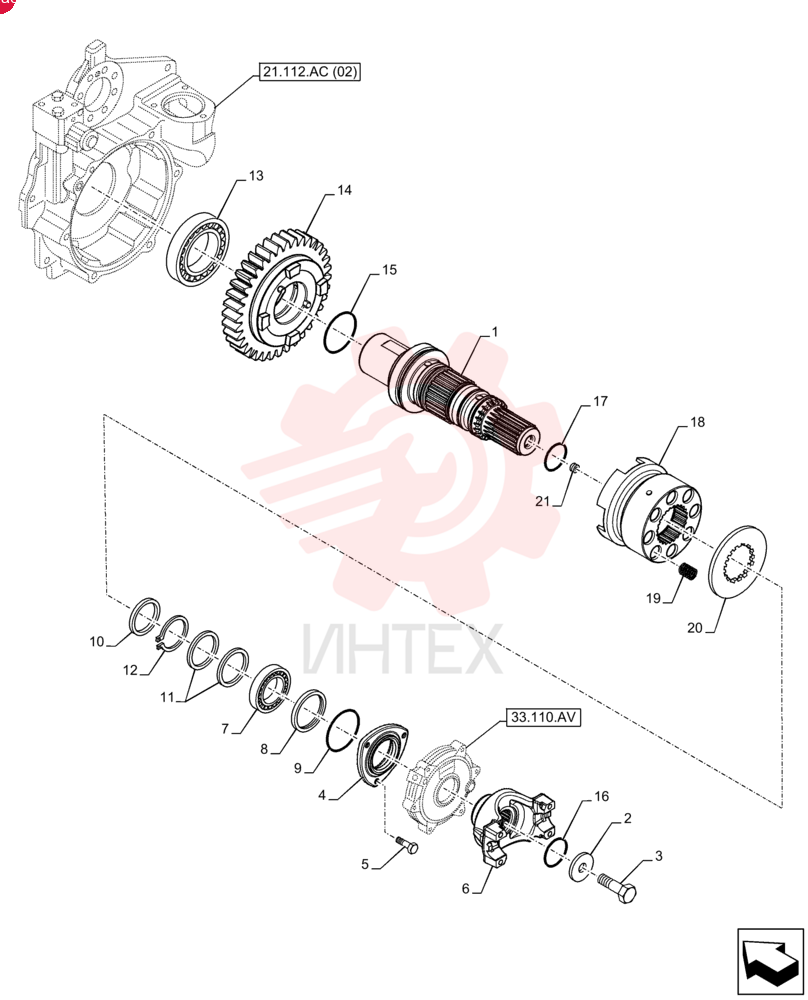

SHAFT 366230A1
1 366230A1
- 366230A1 - SHAFT
2 P2745466
- P2745466 - WASHER
3 P3533055
- P3533055 - SCREW
- M12 x 1.25 x 25mm
4 181198A1
- 181198A1 - COVER
5 614-8022
- 614-8022 - BOLT
- Hex
- M8 x 1.25 x 22mm
- Cl 8.8
- Full Thd
6 87704971
- 87704971 - YOKE
7 ST205A
- ST205A - BEARING
- BALL
- 35 mm ID x 72 mm OD x 17 mm
8 181122A1
- 181122A1 - OIL SEAL
- 50mm ID x 65mm OD x 8mm Thk
9 112517A1
- 112517A1 - O-RING
- 0.103" Thk x 2.8" ID
- -149
- Cl 5
- 75 Duro
10 P2745478Q
- P2745478Q - WASHER
11 358645A1
- 358645A1 - SEALING RING
12 800-5145
- 800-5145 - SNAP RING
- M45
- Ext
13 181126A1
- 181126A1 - BEARING
- BALL
- 45 mm ID x 85 mm OD x 19 mm
14 366234A1
- 366234A1 - PINION
- 36T
15 366235A1
- 366235A1 - O-RING
16 238-8217
- 238-8217 - O-RING
- 0.139" Thk x 1.171" ID
- -217
- Cl 8
- 90 Duro
17 366236A1
- 366236A1 - O-RING
- 3.53mm Thk x 42.85mm ID
18 366232A1
- 366232A1 - TRANSMISSION SLEEVE
19 100753A1
- 100753A1 - SPRING
- Compression
- 15mm OD x 41.2mm L
20 366231A1
- 366231A1 - WASHER
21 D142898
- D142898 - PLUG
- M10 x 1
