Главная
/
Бренды
/
New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

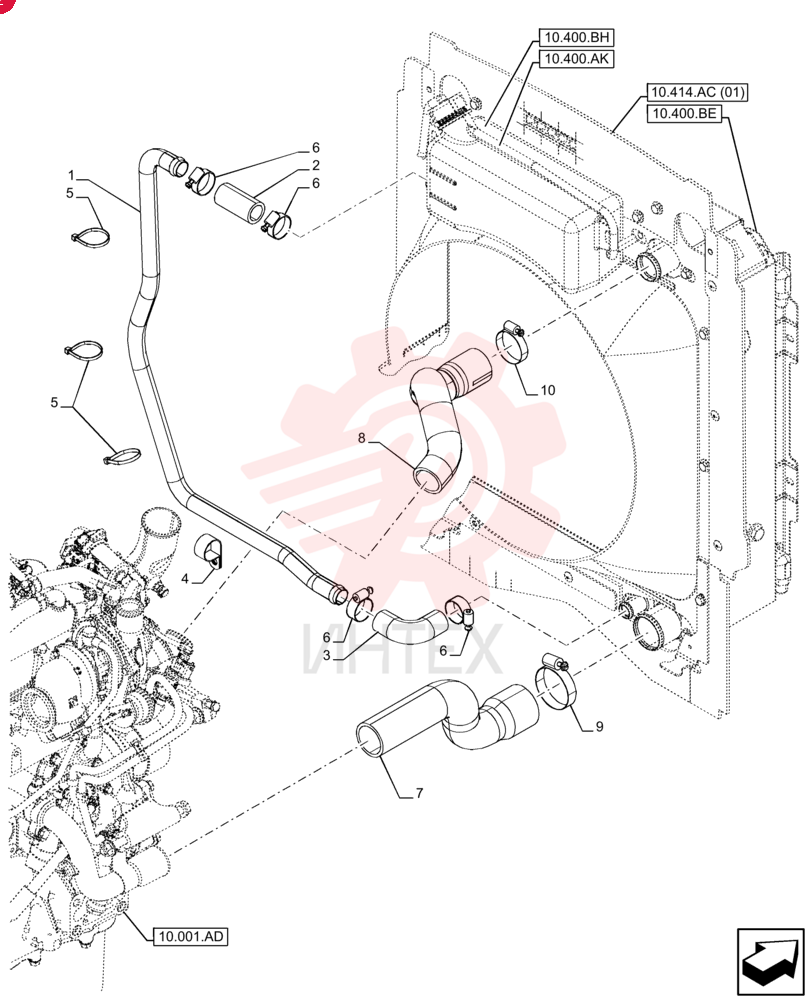

TUBE 47506717 (2)

TUBE 47506717 (2)

TUBE 47506717 (2)

1 47506717

  • 47506717 - TUBE

2 87367622

  • 87367622 - HOSE
  • 25.40 mm ID x 60.00 mm
  • SAE 20R3 CLASS D-1 Or D-2

3 87454376

  • 87454376 - HOSE
  • 25mm ID
  • 29.95mm OD
  • 90 Degree

4 86637977

  • 86637977 - CLAMP
  • 25.4mm
  • Coat
  • 8.7mm Bolt Hole
  • P Type

5 87000312

  • 87000312 - CABLE TIE
  • 4.8mm W x 203.2mm OAL
  • Nylon

6 514920

  • 514920 - HOSE CLAMP
  • 20.6mm - 38.1mm
  • Worm Gear

7 47564006

  • 47564006 - HOSE
  • 46mm ID
  • 57mm ID
  • 315mm L
  • 116.4mm L

8 84329358

  • 84329358 - RADIATOR HOSE

9 45014

  • 45014 - HOSE CLAMP
  • 2.06" - 3"
  • Worm

10 87647029

  • 87647029 - HOSE CLAMP
  • 40-64mm
