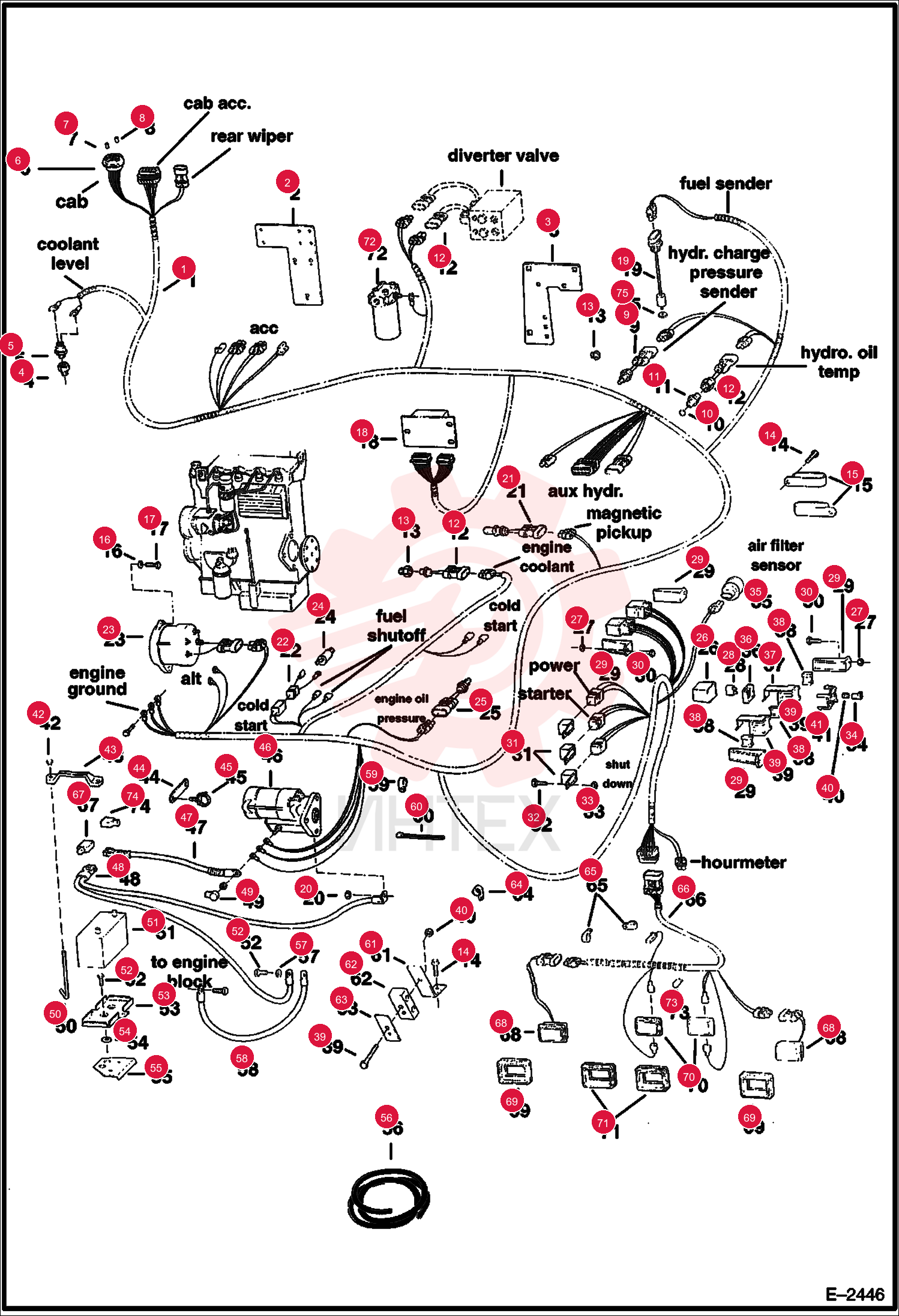

HARNESS 6714885
1 6714885
- 6714885 - HARNESS
- engine - Was 6597800
2 6715461
- 6715461 - MOUNT
3 6800809
- 6800809 - BRACKET
4 19F3
- 19F3 - BUSHING
5 6648326
- 6648326 - SWITCH
- coolant level - Was 6658818
6 6664585
- 6664585 - CONNECTOR
- Also Order Ref. 7 & 8 - Was 6665682
7 6664828
- 6664828 - SOCKET
8 6664041
- 6664041 - PIN 10
9 99K6
- 99K6 - O-RING
10 6805045
- 6805045 - FITTING
11 6654200
- 6654200 - SWITCH
- hydro. temp. & engine temp
12 6715732
- 6715732 - BUSHING
- reducing - 1/2'' OD X 9/16'' ID
13 84G3712
- 84G3712 - SCREW THD ROLLING TT
14 31H46
- 31H46 - CLAMP
15 27E5
- 27E5 - WASHER
16 35C512
- 35C512 - SCREW FLGD HEX CAP
17 6669685
- 6669685 - BOSS COMP
- uninitalized
- Not Initialized - Programming by Dealer Required
18 7297324
- 7297324 - SENSOR
- FUEL
- - Was 7216514
19 7297326
- 7297326 - SENSOR
- FUEL
- - fuel - Was 7216516
20 97D6
- 97D6 - NUT 10
21 6684037
- 6684037 - SENSOR
- SPEED ENG
- rpm - Was 6658260
22 8D12
- 8D12 - NUT
23 6715000
- 6715000 - HARNESS
- WIRE
- cold start
24 6672321
- 6672321 - SWITCH
- switch - Cold Weather Start
25 6660204
- 6660204 - SENSOR
- PRESS OIL ENG
- eng. oil press. - Was 6631010
26 6665358
- 6665358 - COVER
- FUSE
27 95D5
- 95D5 - NUT
28 6707620
- 6707620 - FUSE
- 10A MINI 5
29 6707621
- 6707621 - FUSE
- 15A MINI 5
30 6707623
- 6707623 - FUSE
- 25A MINI 5
31 6674099
- 6674099 - BREAKER
- 25A
32 6665369
- 6665369 - MOUNT
- FUSE
- fuse
33 17C540
- 17C540 - BOLT
34 6670312
- 6670312 - SWITCH
- MAGNETIC
- starter relay
35 35C412
- 35C412 - SCREW FLGD HEX CAP
36 61D4
- 61D4 - NUT 5
37 6668720
- 6668720 - PIN
- female - Use W/ 14 ga wire
38 6668719
- 6668719 - PIN
- female - for 14 gauge wire
39 6665371
- 6665371 - SWITCH
- VACUUM
- condition indicator
40 6708437
- 6708437 - SPRG CLIP
- fuse cover
41 6665356
- 6665356 - FUSEBLOCK
- fuse-w/green square seal - Ref. 36
42 6665411
- 6665411 - WEDGE
- red
43 6650107
- 6650107 - SEAL
44 6665357
- 6665357 - 2ND LOCK
- yellow
45 59D5
- 59D5 - NUT LOCK HEX PT
46 6569203
- 6569203 - CLAMP BATTERY
47 6567596
- 6567596 - MOUNT
48 6630586
- 6630586 - CLIP
49 6715374
- 6715374 - CABLE
- POSITIVE
- less conduit - positive
50 6715338
- 6715338 - CABLE
- NEGATIVE
- negative
51 6560172
- 6560172 - COVER
52 6576280
- 6576280 - BOLT BENT
53 7312553
- 7312553 - BATTERY 1000 CCA DRY
- - Was 6665427
54 7269857
- 7269857 - BATTERY WET 1000 CCA
55 84G3716
- 84G3716 - SCREW THD ROLLING TT
56 6712536
- 6712536 - BATTRYPAN
- battery
57 6555455
- 6555455 - WASHER
58 6597595
- 6597595 - BRACKET
59 6563505
- 6563505 - CONDUIT
- bulk - sold per foot
60 6E6
- 6E6 - WASHER
61 6563025
- 6563025 - CABLE
- negative - 22'' (558.80) long
62 30H50
- 30H50 - CLAMP
63 6665527
- 6665527 - TIE
- never modify
64 6715307
- 6715307 - BRACKET
65 6715197
- 6715197 - CLAMP
66 6715132
- 6715132 - RETAINER
67 30H60
- 30H60 - CLIP INSULATED
68 30H35
- 30H35 - CLIP INSULATED
69 6708278
- 6708278 - HARNESS
- light
70 2356058
- 2356058 - BOOT
71 6707789
- 6707789 - LIGHT ASSEMBLY
72 6666568
- 6666568 - BULB
- 21W
73 6667887
- 6667887 - BULB
- 21/5W
74 6668007
- 6668007 - SCREW
75 6668010
- 6668010 - LENS
76 6705980
- 6705980 - MOUNT
77 898731
- 898731 - LAMP
- threaded bulb
78 6661353
- 6661353 - LIGHT
- HOUSING ASSY
- worklight - Ref. 35
79 6703796
- 6703796 - MOUNT
- light
80 6668818
- 6668818 - FILTER ASSEMBLY
81 6668819
- 6668819 - FILTER
- OIL HYD
- hydrostatic - 241
- 3 mm (9.5") long
82 898731
- 898731 - LAMP
83 6599652
- 6599652 - BOOT
84 79K14
- 79K14 - O RING 10
85 6717579
- 6717579 - GASKET
