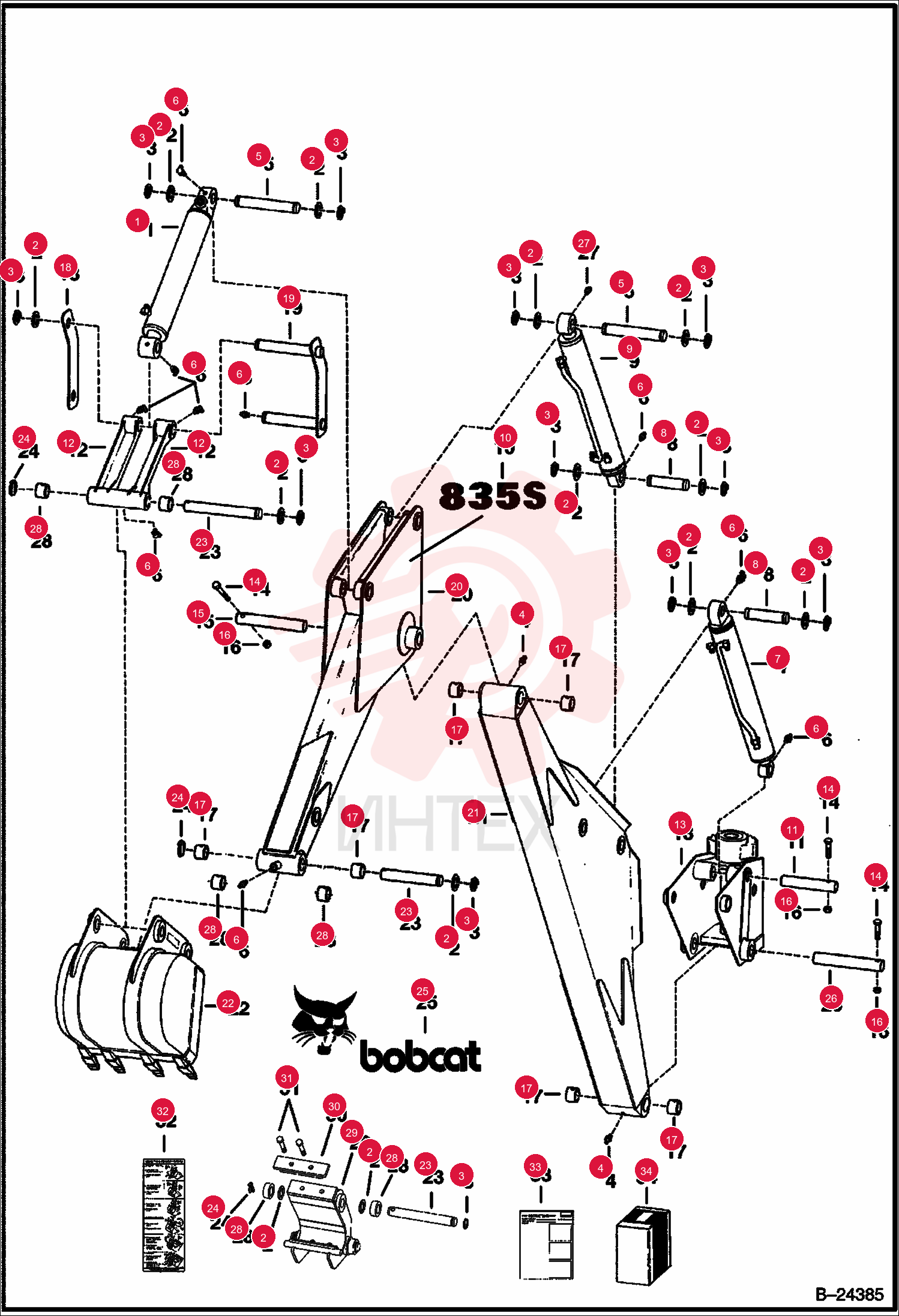

WASHER 5 6584872 (3)

WASHER 5 6584872 (3)

WASHER 5 6584872 (3)

1 6584872

  • 6584872 - WASHER 5

2 22J24

  • 22J24 - RING
  • SNAP
  • Was 6538285

3 12H15

  • 12H15 - FTG GREASE 90

4 6560349

  • 6560349 - PIN

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6560350

  • 6560350 - PIN

7 6539352

  • 6539352 - DECAL
  • 835S

8 6560351

  • 6560351 - PIN

9 6716264

  • 6716264 - LINK
  • BUCKET MACHINED
  • Also order (2) of Ref. 28 if using Standard Buckets - Was 6537182

10 17C648

  • 17C648 - SCREW HEX CAP

11 6533340

  • 6533340 - PIN

12 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

13 6560334

  • 6560334 - BUSHING
  • Press-in

14 7114802

  • 7114802 - LINK
  • Was 6716262

15 6716263

  • 6716263 - LINK
  • Was 6532528

16 6716257

  • 6716257 - ARM
  • Also order (2) of Ref. 28 if using Standard Buckets - Was 6533346

17 6533283

  • 6533283 - BOOM

18 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

19 6560382

  • 6560382 - PIN
  • LOCK

20 6808545

  • 6808545 - DECAL
  • Bobcat - R.H. - Was 6557412

21 6808546

  • 6808546 - DECAL
  • Bobcat - L.H. - Was 6557413

22 6537746

  • 6537746 - PIN

23 12H15

  • 12H15 - FTG GREASE 90

24 6716402

  • 6716402 - SPACER

25 6714921

  • 6714921 - FRAME
  • X-Change

26 6804485

  • 6804485 - PLATE
  • BOLT-ON

27 17C1052

  • 17C1052 - BOLT

28 6806121

  • 6806121 - DECAL
  • Bolt-on X-Change

29 6900862

  • 6900862 - INSTRUCTIONS
