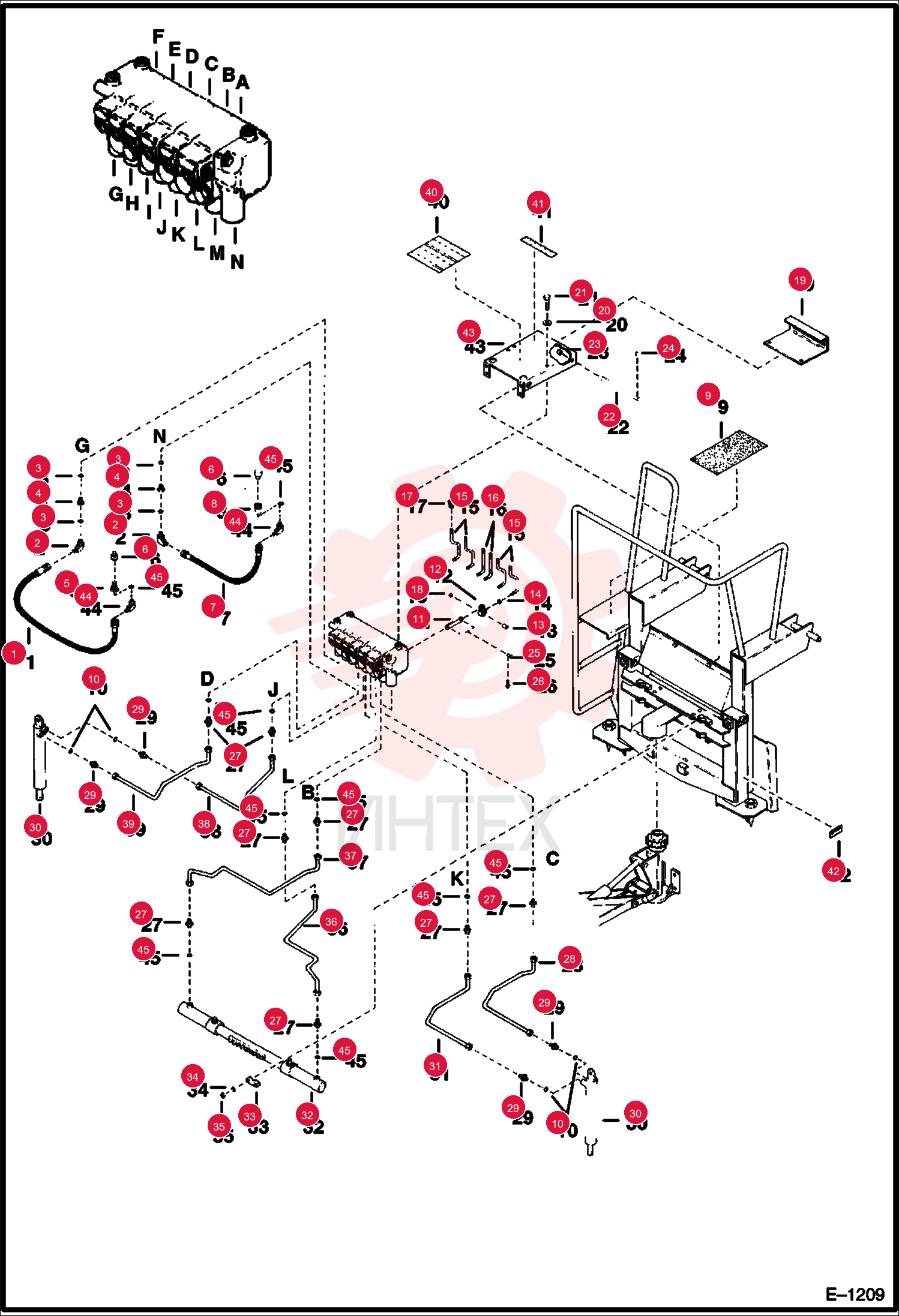

HOSE 6560315

HOSE 6560315

HOSE 6560315

1 6560315

  • 6560315 - HOSE

2 17K7

  • 17K7 - ELBOW
  • W/Ref. 3

3 79K10

  • 79K10 - O RING 10

4 93F7

  • 93F7 - CONNCTR
  • W/Ref. 3

5 6513634

  • 6513634 - COUPLER
  • male - poppet

6 7246789

  • 7246789 - COUPLER FF MALE HTMA
  • - Was 6667806

7 7246789EF

  • 7246789EF - COUPLER FF MALE 3/8 BODY 1/2 SAE THREAD

8 7251808

  • 7251808 - SEAL
  • Was 6669659

9 6513709

  • 6513709 - CAP AND PLUG
  • assy. - rubber

10 6515168

  • 6515168 - CAP
  • steel

11 6515167

  • 6515167 - CAP
  • steel

12 6560316

  • 6560316 - ASSY
  • HOSE

13 7246788

  • 7246788 - COUPLER
  • FF FEMALE
  • - straight - case drain - Was 6667805

14 7246788EF

  • 7246788EF - COUPLER FF FEMALE 3/8 BDY 1/2 SAE THREAD

15 58K211

  • 58K211 - O RING 10
  • Use with poppet coupler

16 6512159

  • 6512159 - COUPLER
  • female - poppet

17 6557902

  • 6557902 - TREAD
  • SAFETY

18 79K6

  • 79K6 - O RING 10

19 6510131

  • 6510131 - LINKS

20 6510132

  • 6510132 - LEVER

21 6510315

  • 6510315 - BUSHING

22 7D6

  • 7D6 - NUT

23 6557857

  • 6557857 - ROD

24 6510130

  • 6510130 - KNOB

25 6518005

  • 6518005 - COVER

26 25E20

  • 25E20 - WASHER

27 17C712

  • 17C712 - BOLT

28 6518000

  • 6518000 - LEVER

29 6518001

  • 6518001 - SPACER

30 659648

  • 659648 - PIN
  • Was 654724

31 6518002

  • 6518002 - PIN

32 1F208

  • 1F208 - PIN

33 15K6

  • 15K6 - ADAPTER
  • W/Ref. 45

34 755056

  • 755056 - CONNECTR
  • W/Ref. 10

35 6518012

  • 6518012 - CYLINDER
  • SWING

36 6518969

  • 6518969 - RING
  • RETAINER

37 4E6

  • 4E6 - WASHER

38 61D6

  • 61D6 - NUT HEX FINISHED GR5

39 6557855

  • 6557855 - TUBE

40 6558291

  • 6558291 - DECAL
  • mtg. instructions

41 6561627

  • 6561627 - DECAL
  • levers

42 6558051

  • 6558051 - DECAL
  • caution

43 6518004

  • 6518004 - BRACKET
  • valve mtg.

44 17K6

  • 17K6 - ELBOW
  • W/Ref. 45

45 79K8

  • 79K8 - O RING 10
