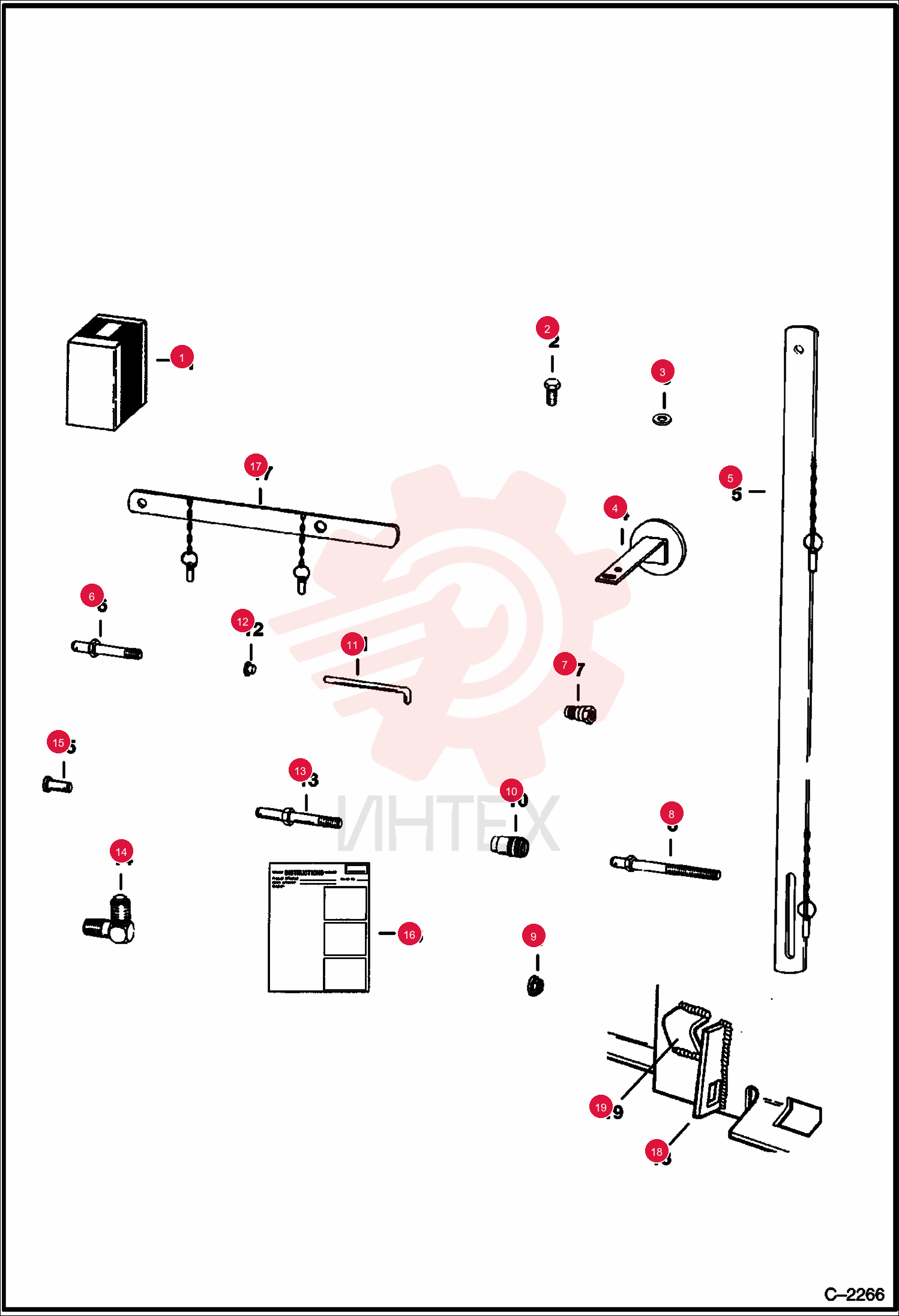

NLA C /FT 6558063

NLA C /FT 6558063

NLA C /FT 6558063

1 6558063

  • 6558063 - NLA C /FT
  • backhoe mtg. - Ref. 2-17

2 17C820

  • 17C820 - BOLT 5

3 25E25

  • 25E25 - WASHER FLAT PLAIN

4 6557922

  • 6557922 - BRAKE
  • pad

5 6513696

  • 6513696 - BAR ASSY
  • limiting - lift

6 6554418

  • 6554418 - BOLT
  • pivot

7 6519318

  • 6519318 - COUPLER
  • male

8 6558074

  • 6558074 - BOLT
  • pivot

9 6512896

  • 6512896 - NUT

10 58K116

  • 58K116 - O RING 10

11 6519317

  • 6519317 - COUPLER
  • female

12 6561183

  • 6561183 - ROD
  • aux. pedal

13 6553907

  • 6553907 - FASTNER
  • push-on

14 6558075

  • 6558075 - BOLT
  • pivot

15 669499

  • 669499 - ELBOW

16 6512359

  • 6512359 - PIN

17 6556213

  • 6556213 - INSTRUCTIONS
  • installation

18 6513693

  • 6513693 - NLA C F/T
  • lockout - tilt

19 6594048

  • 6594048 - PLATE
  • required when backhoe is used on 300 series
  • but must be removed for 553F - See Serviceletter of 2 April 1998

20 6594049

  • 6594049 - ANGLE
  • required when backhoe is used on 300 series
  • but must be removed for 553F - See Serviceletter of 2 April 1998
