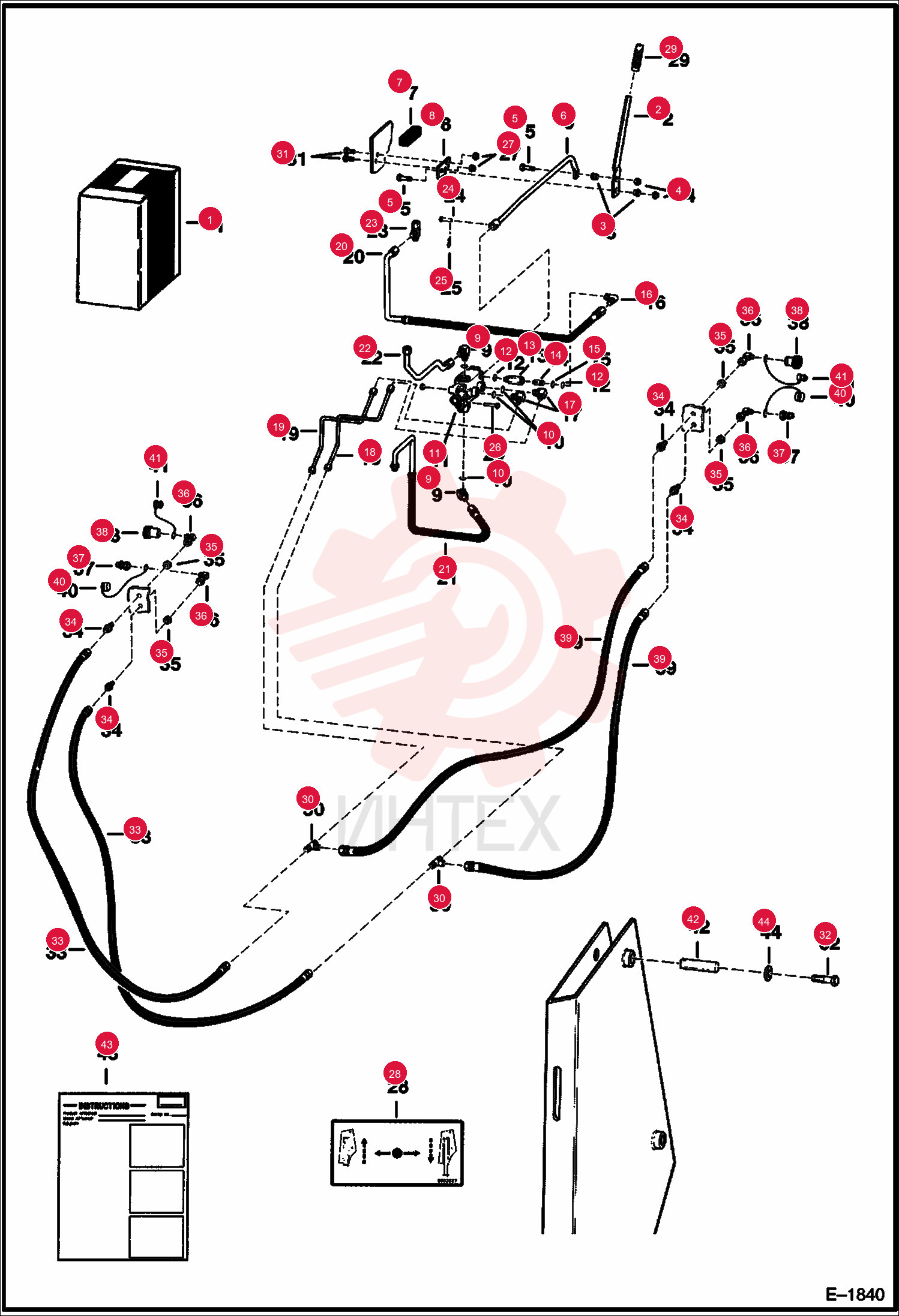

LEVER 6564395

LEVER 6564395

LEVER 6564395

1 6564395

  • 6564395 - LEVER

2 6630081

  • 6630081 - BUSHING

3 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

4 17C624

  • 17C624 - BOLT 5

5 6560824

  • 6560824 - ROD

6 6560849

  • 6560849 - FOAMSTRIP

7 6560825

  • 6560825 - MOUNT

8 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW
  • W/Ref. 10 - Was 1302104B

9 79K12

  • 79K12 - O RING 10

10 6513713

  • 6513713 - VALVE

11 79K10

  • 79K10 - O RING 10

12 6559571

  • 6559571 - VALVE
  • CHECK

13 25K20022

  • 25K20022 - O RING 10

14 17K7

  • 17K7 - ELBOW

15 1300913

  • 1300913 - ELBOW
  • W/Ref. 10

16 6563561

  • 6563561 - TUBE

17 6563562

  • 6563562 - TUBE

18 6563935

  • 6563935 - TUBE

19 6563937

  • 6563937 - TUBE

20 13K7

  • 13K7 - FITTING

21 1319560

  • 1319560 - PIN

22 6513495

  • 6513495 - PIN 5

23 17C640

  • 17C640 - BOLT

24 61D6

  • 61D6 - NUT HEX FINISHED GR5

25 6562627

  • 6562627 - DECAL

26 6557730

  • 6557730 - GRIP

27 10K5

  • 10K5 - TEE

28 17C616

  • 17C616 - BOLT 5

29 35C816

  • 35C816 - BOLT

30 6563438

  • 6563438 - HOSE

31 45K5

  • 45K5 - FITTING

32 86F5

  • 86F5 - NUT

33 1631632

  • 1631632 - ELBOW

34 2341398

  • 2341398 - COUPLER
  • male

35 2342026

  • 2342026 - COUPLING
  • female

36 25K30018

  • 25K30018 - O RING 10

37 6563437

  • 6563437 - HOSE

38 1513549

  • 1513549 - CAP

39 1519324

  • 1519324 - PLUG

40 6567702

  • 6567702 - PIN

41 6570550

  • 6570550 - INSTRUCTIONS

42 6564692

  • 6564692 - WASHER
