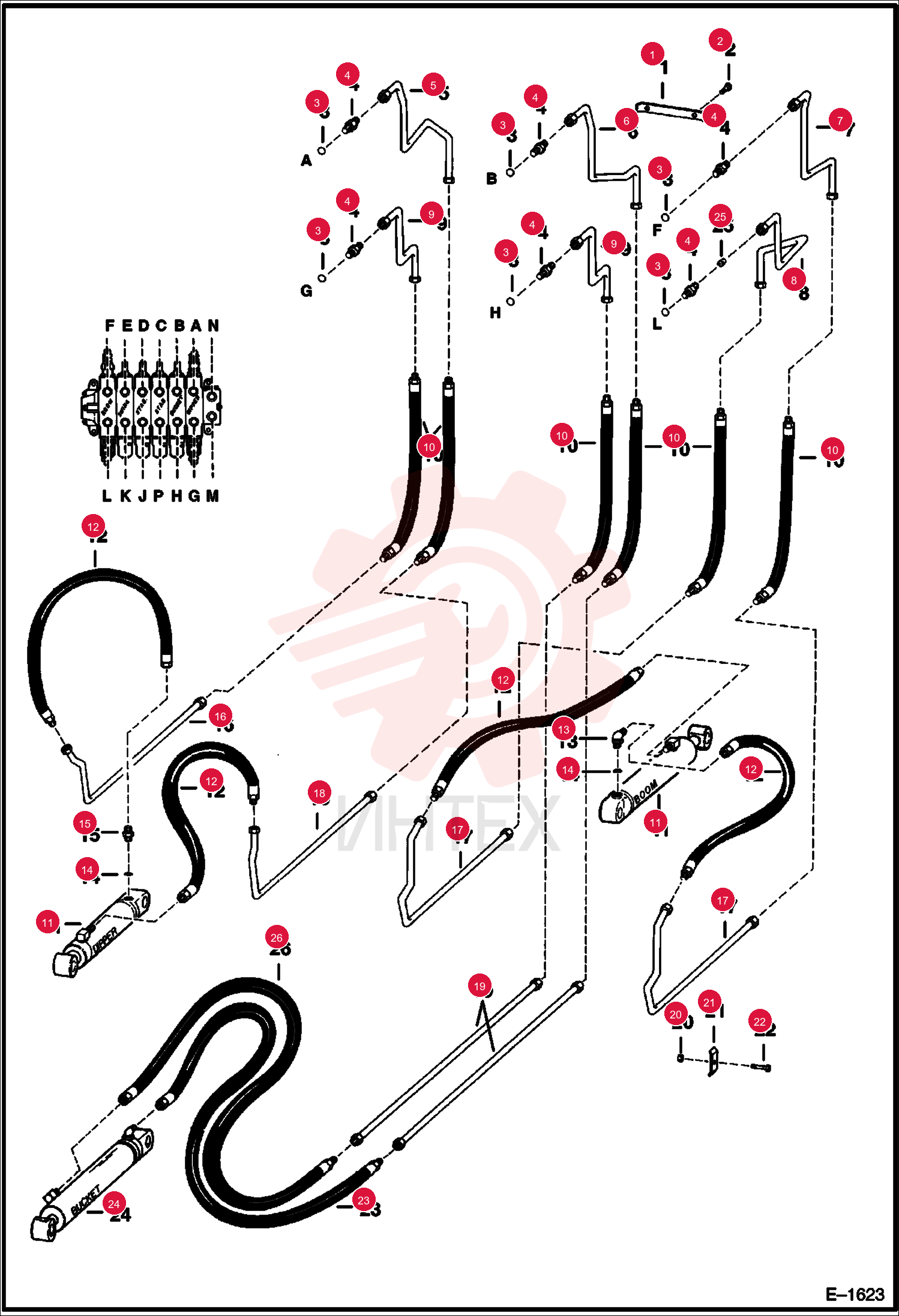

CLAMP 6560554 (1)

CLAMP 6560554 (1)

CLAMP 6560554 (1)

1 6560554

  • 6560554 - CLAMP

2 84G3724

  • 84G3724 - SCREW THD ROLLING TT

3 79K8

  • 79K8 - O RING 10

4 731793

  • 731793 - CONNECTR
  • W/Ref. 3

5 6592818

  • 6592818 - TUBE

6 6592817

  • 6592817 - TUBE

7 6592819

  • 6592819 - TUBE

8 6592814

  • 6592814 - TUBE

9 6592822

  • 6592822 - TUBE

10 6562130

  • 6562130 - HOSE

11 6560363

  • 6560363 - HOSE

12 17K7

  • 17K7 - ELBOW
  • W/Ref. 14

13 79K10

  • 79K10 - O RING 10

14 15K7

  • 15K7 - FITTING
  • W/Ref. 14

15 6560365

  • 6560365 - TUBE

16 6560364

  • 6560364 - TUBE

17 6560644

  • 6560644 - TUBE

18 6560366

  • 6560366 - TUBE

19 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

20 6502426

  • 6502426 - CLAMP

21 84G3728

  • 84G3728 - SCREW THD ROLLING TT

22 6561444

  • 6561444 - HOSE

23 6592852

  • 6592852 - ORIFICE
  • .187" (4
  • 75 mm) dia. - Was 6592825

24 6529333

  • 6529333 - HOSE
