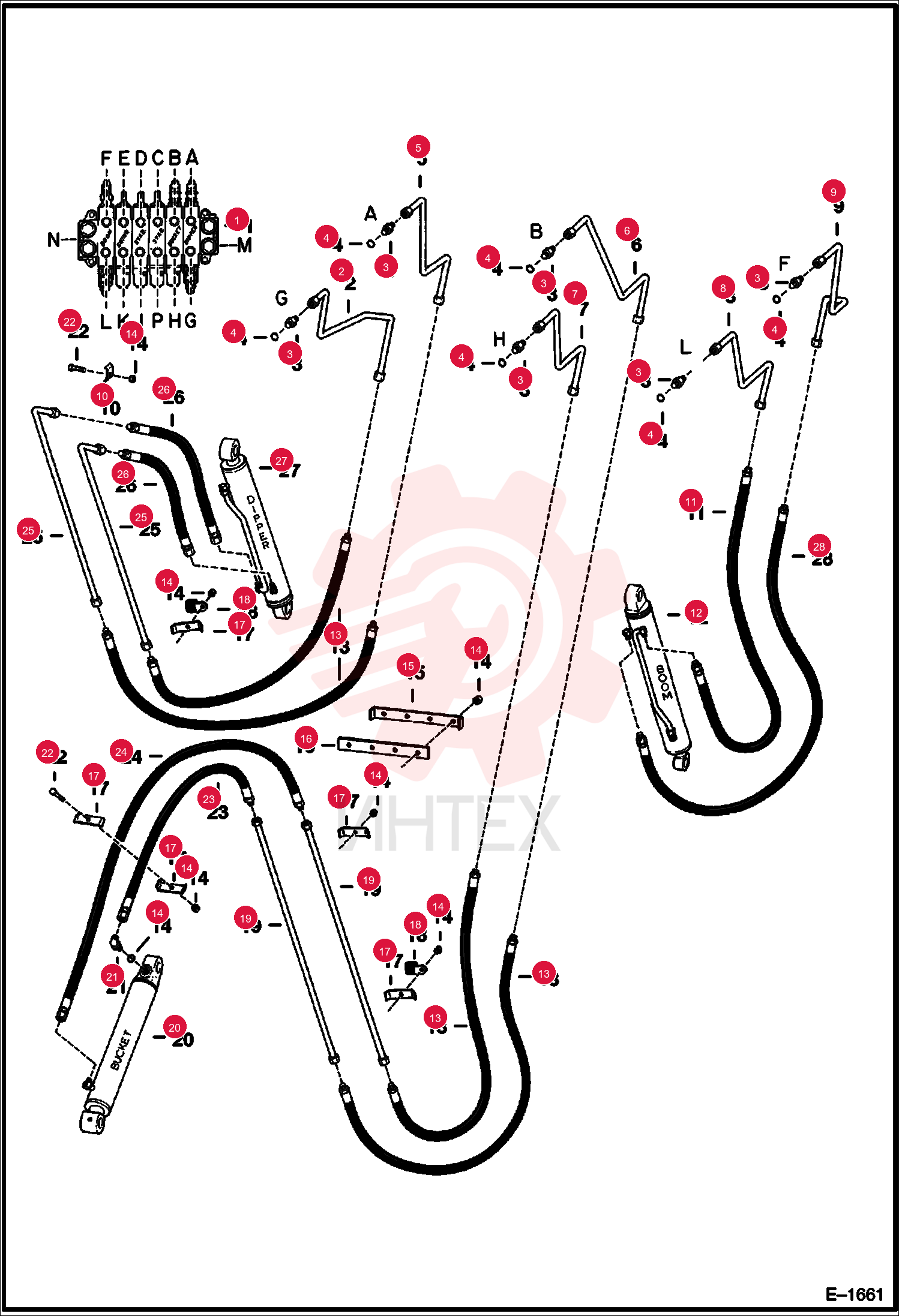

TUBE 6530956 (1)

TUBE 6530956 (1)

TUBE 6530956 (1)

1 6530956

  • 6530956 - TUBE

2 15K7

  • 15K7 - FITTING
  • W/Ref. 4

3 79K10

  • 79K10 - O RING 10

4 6530957

  • 6530957 - TUBE

5 6530954

  • 6530954 - TUBE

6 6530955

  • 6530955 - TUBE

7 6530952

  • 6530952 - TUBE

8 6530953

  • 6530953 - TUBE

9 6562266

  • 6562266 - CLAMP TUBE

10 6588171

  • 6588171 - ASSY
  • HOSE

11 6588170

  • 6588170 - ASSY
  • HOSE

12 81D6

  • 81D6 - NUT

13 6593781

  • 6593781 - SPACER

14 6502426

  • 6502426 - CLAMP

15 30H50

  • 30H50 - CLAMP

16 6593871

  • 6593871 - TUBE

17 17K7

  • 17K7 - ELBOW
  • W/Ref. 4

18 17C632

  • 17C632 - BOLT 5

19 6588173

  • 6588173 - ASSY
  • HOSE

20 6588174

  • 6588174 - ASSY
  • HOSE

21 6593870

  • 6593870 - TUBE

22 742961

  • 742961 - HOSE ASY

23 6588172

  • 6588172 - ASSY
  • HOSE
