963
/

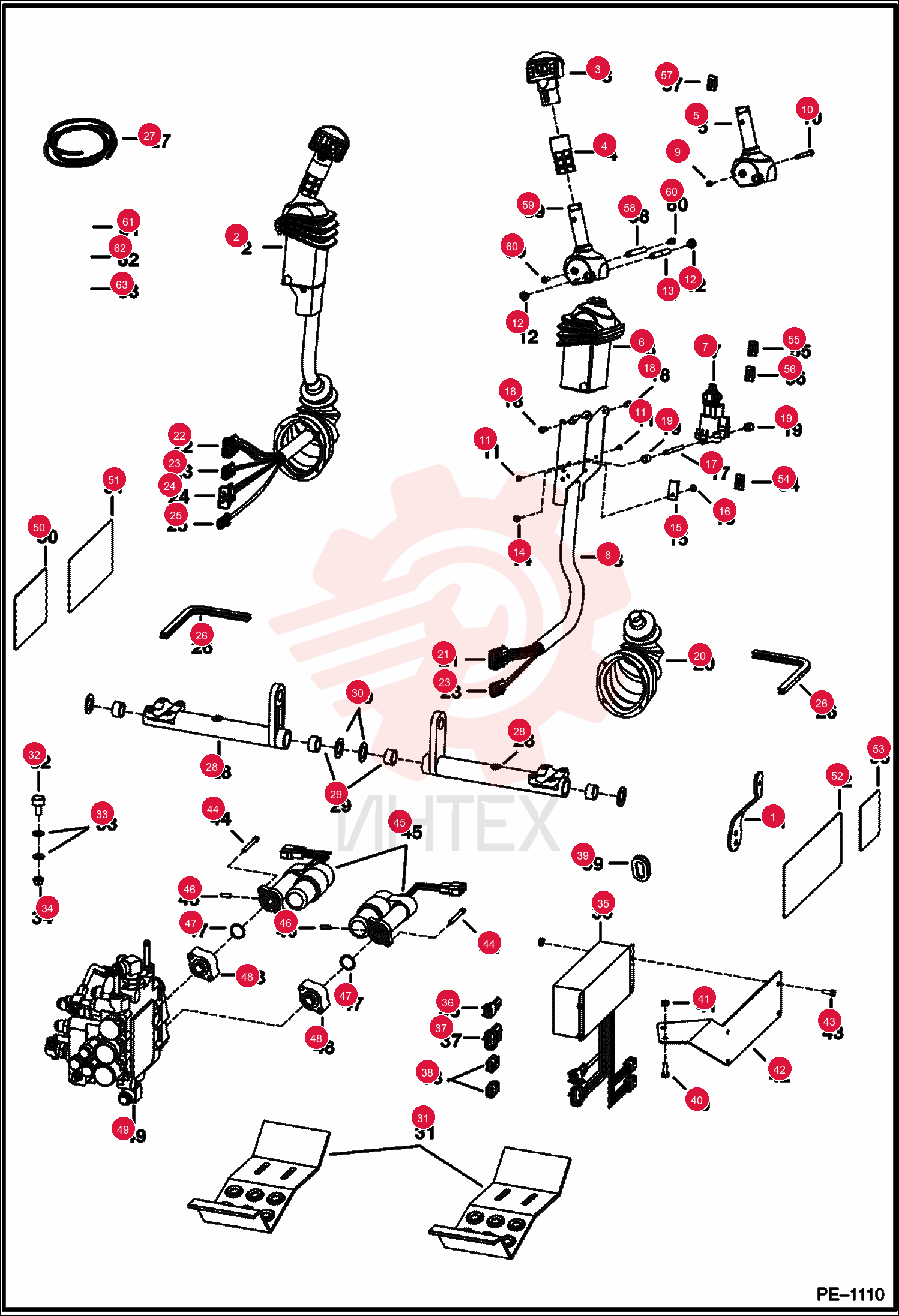

LEVER 6717393

LEVER 6717393

LEVER 6717393

1 6717393

  • 6717393 - LEVER
  • throttle

2 6684913

  • 6684913 - LEVER
  • tilt - RH - Was 6675742

3 6684914

  • 6684914 - LEVER
  • lift - LH - Was 6675750

4 6680417

  • 6680417 - HANDLE
  • AHC
  • lift - LH - Was 6675749

5 6680471

  • 6680471 - BOOT
  • Was 6713898

6 6684910

  • 6684910 - SENSOR
  • ELEC AHC
  • Was 6675741

7 6670706

  • 6670706 - CONNECTOR

8 6670715

  • 6670715 - SOCKET

9 6670710

  • 6670710 - PLUG

10 6680481

  • 6680481 - CHANNEL
  • RH - Was 6719712

11 6680480

  • 6680480 - CHANNEL
  • LH - Was 6719711

12 12D10

  • 12D10 - NUT

13 6716826

  • 6716826 - BOLT

14 25GT410

  • 25GT410 - SCREW

15 6702990

  • 6702990 - BUSHING

16 6713043

  • 6713043 - SPACER

17 6665321

  • 6665321 - RIVET PLASTIC MALE
  • male

18 6665000

  • 6665000 - BRACKET MOUNTING

19 6665322

  • 6665322 - RIVET PLASTIC FEMALE
  • female

20 6719834

  • 6719834 - SPACER
  • threaded

21 6727065

  • 6727065 - SCREW

22 6719835

  • 6719835 - SLEEVE

23 6532127

  • 6532127 - BOOT AND PLATE ASSY

24 6641176

  • 6641176 - SEAL

25 6646582

  • 6646582 - PLUG
  • cavity

26 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

27 6640690

  • 6640690 - PIN

28 6640692

  • 6640692 - CONNECTOR
  • 10-pin

29 6640692

  • 6640692 - CONNECTOR
  • 10-pin

30 6640690

  • 6640690 - PIN

31 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

32 6641176

  • 6641176 - SEAL

33 6646582

  • 6646582 - PLUG
  • cavity

34 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin

35 6640690

  • 6640690 - PIN

36 6641176

  • 6641176 - SEAL

37 6640700

  • 6640700 - LOCK METRI PACK

38 6640690

  • 6640690 - PIN

39 6641176

  • 6641176 - SEAL

40 6646582

  • 6646582 - PLUG
  • cavity

41 6667145

  • 6667145 - LOCK
  • Use W/ 5-pin connector

42 6667144

  • 6667144 - CONNECTOR
  • 5-pin

43 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

44 6640690

  • 6640690 - PIN

45 6641176

  • 6641176 - SEAL

46 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

47 6654139

  • 6654139 - MOULDING BULK/FT
  • sold per foot

48 6716977

  • 6716977 - BELLCRANK

49 6673710

  • 6673710 - BEARING
  • NEEDLE

50 6716916

  • 6716916 - WASHER
  • plastic

51 6712365

  • 6712365 - STEP

52 6673789

  • 6673789 - BEARING
  • ROLLER

53 27E6

  • 27E6 - WASHER HARDEN PLAIN

54 98D6

  • 98D6 - NUT

55 6676153

  • 6676153 - CONTROLLER
  • AHC METAL
  • metal

56 6640692

  • 6640692 - CONNECTOR
  • 10-pin

57 6640690

  • 6640690 - PIN

58 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

59 6641176

  • 6641176 - SEAL

60 6646582

  • 6646582 - PLUG
  • cavity

61 6648307

  • 6648307 - CONNECTOR
  • 2-pin

62 6670709

  • 6670709 - CONNECTOR
  • 8-pin

63 6714726

  • 6714726 - PLUG

64 17C612

  • 17C612 - SCREW HEX CAP

65 61D6

  • 61D6 - NUT HEX FINISHED GR5

66 6725165

  • 6725165 - MOUNT

67 17C412

  • 17C412 - BOLT 5

68 69G436

  • 69G436 - BOLT

69 7104842

  • 7104842 - ACTUATOR
  • W/Ref. 47 (58K120 O-ring) - Use W/Ref. 48 (7101705 adapter)

70 7108236

  • 7108236 - PIN
  • Was 6718506

71 6686220

  • 6686220 - O-RING
  • Use W/Ref. 45 (NLA/ 7103129 actuator)

72 58K120

  • 58K120 - O-RING
  • Use W/Ref. 45 (NLA/ 6678775 actuator & 7104842 actuator)

73 7101705

  • 7101705 - ADAPTER
  • ACTUATOR
  • W/O O-ring groove - Use W/Ref. 45 (NLA/ 7103129 actuator & 7104842 actuator)

74 6725128

  • 6725128 - ADAPTER
  • actuator - W/ O-ring groove - Use W/Ref. 45 (NLA/ 6678775 actuator)

75 6718704

  • 6718704 - DECAL

76 6727155

  • 6727155 - DECAL

77 6728328

  • 6728328 - DECAL

78 6728539

  • 6728539 - DECAL
  • WARNING
  • Was 6718699

79 6718706

  • 6718706 - DECAL
  • WARNING
  • raising cab

80 6670707

  • 6670707 - CONNECTOR
  • 3-pin

81 6670715

  • 6670715 - SOCKET

82 6670711

  • 6670711 - LOCK

83 6677364

  • 6677364 - CONNECTOR
  • 3-pin

84 6676640

  • 6676640 - PLUG
  • SEAL

85 6676870

  • 6676870 - CONNECTOR
  • 3-pin

86 6670715

  • 6670715 - SOCKET

87 6670711

  • 6670711 - LOCK

88 6676640

  • 6676640 - PLUG
  • SEAL

89 6676537

  • 6676537 - SWITCH
  • ACS

90 6680469

  • 6680469 - SPACER
  • 2.285" - thread on both ends - Was 6729600

91 6729594

  • 6729594 - HANDLE
  • RH

92 6729595

  • 6729595 - HANDLE
  • LH

93 6727065

  • 6727065 - SCREW
  • button head - 24UNC

94 6728742

  • 6728742 - HARN.JUMPER
  • jumper - to enhance boom lift

95 6808364

  • 6808364 - HRNSS 963G AHC

96 6733430

  • 6733430 - HARNESS
  • Was 6729023

97 6729054

  • 6729054 - HARNESS
  • AHC
  • W/capacitor - Use W/Ref. 35 (6676153 Controller)
