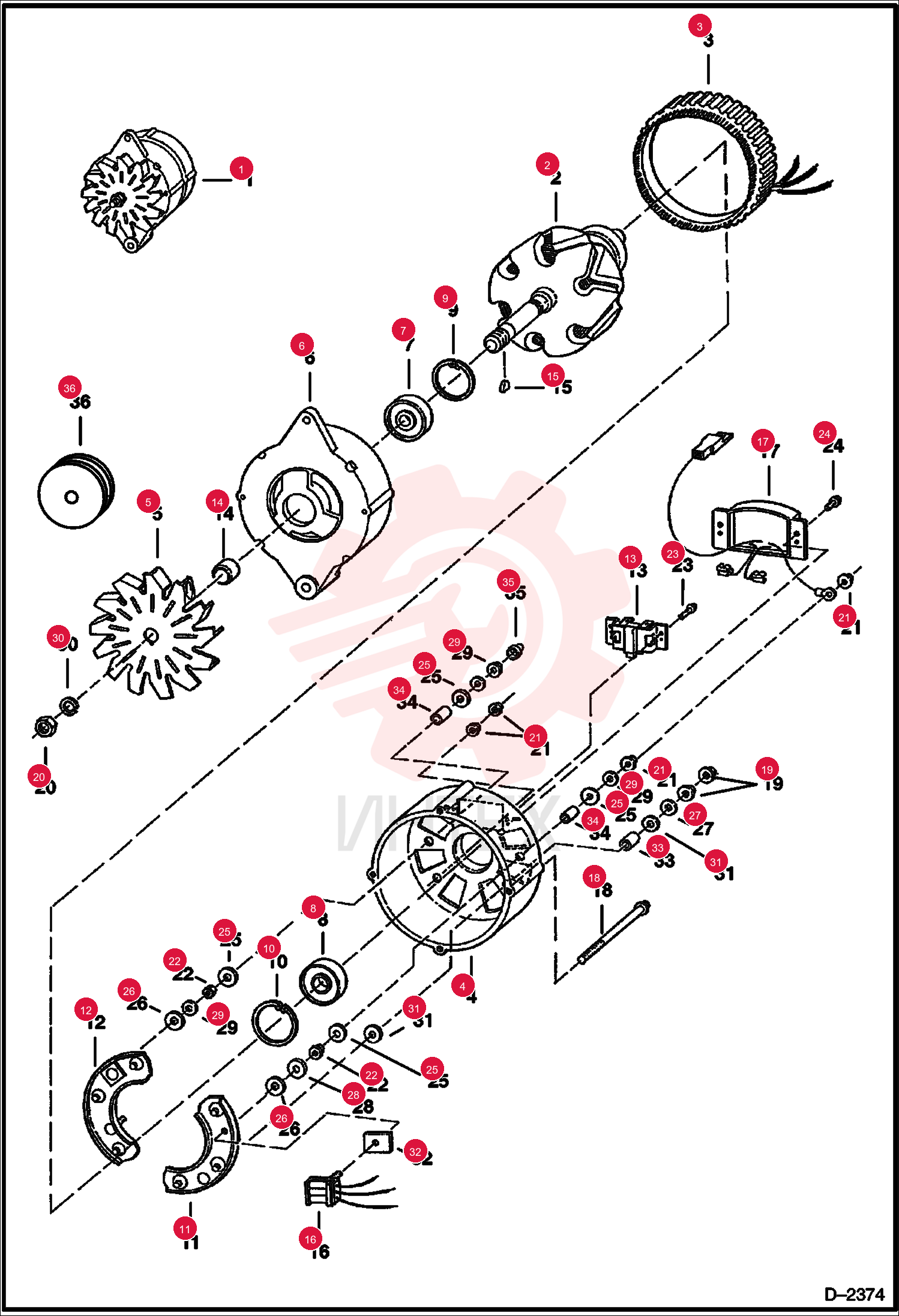

ALTERNATOR 6667811REM (2)

ALTERNATOR 6667811REM (2)

ALTERNATOR 6667811REM (2)

1 6667811REM

  • 6667811REM - ALTERNATOR
  • Was 6667811

2 6669246

  • 6669246 - ROTOR ASSEMBLY

3 6669247

  • 6669247 - STATOR

4 6668839

  • 6668839 - HOUSING
  • rear

5 6634083

  • 6634083 - FAN

6 6669245

  • 6669245 - FRT HSG
  • front - 8AR2015F

7 6668833

  • 6668833 - HOUSING
  • front - 8AR2160F

8 1991037

  • 1991037 - BEARING
  • front

9 1991038

  • 1991038 - BEARING

10 6634084

  • 6634084 - RETAINER
  • bearing
  • front

11 896992

  • 896992 - RETAINER
  • bearing
  • rear

12 6668837

  • 6668837 - DIODE
  • rectifier
  • neg.

13 6669248

  • 6669248 - RECTIFIER
  • DIODE
  • rectifier
  • pos.

14 6668841

  • 6668841 - BRUSH ASSEMBLY
  • 8AR2160F

15 6669249

  • 6669249 - BRUSH ASSEMBLY
  • 8AR2015F

16 6668832

  • 6668832 - SPACER
  • fan & pulley

17 6J405

  • 6J405 - KEY

18 6668851

  • 6668851 - DIODE
  • trio

19 6668843

  • 6668843 - REGULATOR
  • voltage

20 6634091

  • 6634091 - BOLT

21 6635498

  • 6635498 - NUT

22 6635526

  • 6635526 - NUT

23 6668852

  • 6668852 - NUT

24 6668845

  • 6668845 - NUT

25 6668842

  • 6668842 - SCREW

26 6668840

  • 6668840 - SCREW

27 6668840

  • 6668840 - SCREW

28 896990

  • 896990 - WASHER
  • insulator

29 6668853

  • 6668853 - WASHER
  • flat

30 6635531

  • 6635531 - WASHER
  • flat

31 6668854

  • 6668854 - WASHER
  • flat

32 6665557

  • 6665557 - RING
  • BACK-UP
  • lock

33 6668846

  • 6668846 - WASHER

34 897245

  • 897245 - INSULATOR
  • square

35 6668849

  • 6668849 - SLEEVE
  • sleeve

36 6668850

  • 6668850 - SLEEVE
  • sleeve

37 6668847

  • 6668847 - CAP

38 6520554

  • 6520554 - PULLEY
  • 4" (101
  • 6 mm) O.D.

39 6634856

  • 6634856 - PULLEY
  • 2.86" (72
  • 6 mm) O.D.
