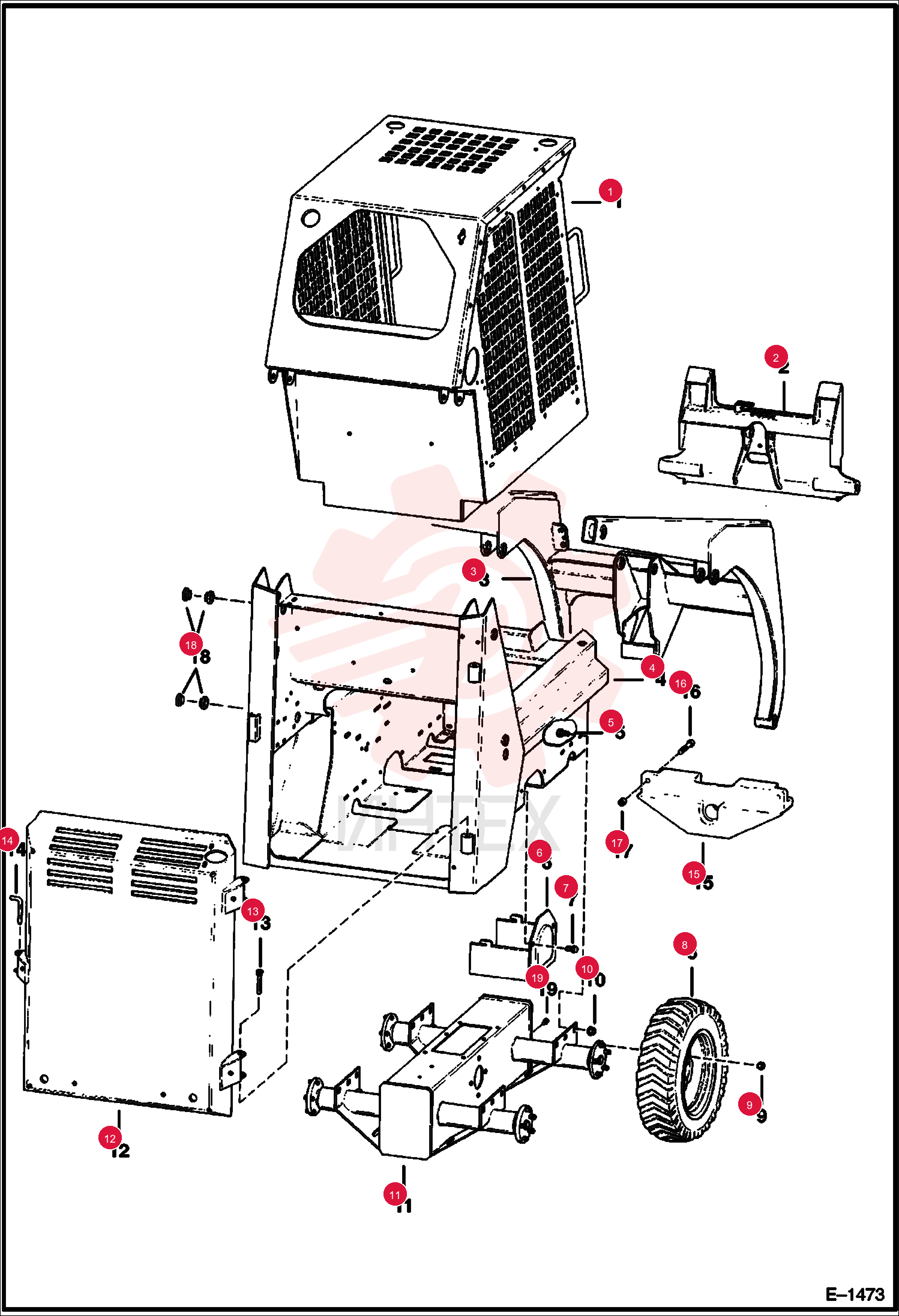

FRAME, MAIN 6708125

FRAME, MAIN 6708125

FRAME, MAIN 6708125

1 6708125

  • 6708125 - FRAME
  • MAIN
  • Was 6594288

2 37C820

  • 37C820 - BOLT SQ NECK RND HD
  • Was 6560578

3 6564185

  • 6564185 - SHIELD

4 84G3712

  • 84G3712 - SCREW THD ROLLING TT

5 6561152

  • 6561152 - NUT
  • WHEEL 5

6 83D8

  • 83D8 - LKNUT HEX FLG GR8

7 6564340

  • 6564340 - PIN HINGE

8 6564192

  • 6564192 - PIN LATCH

9 6564681

  • 6564681 - COUNTERWEIGHT

10 17C828

  • 17C828 - BOLT

11 57D8

  • 57D8 - NUT 10

12 6563829

  • 6563829 - BUSHING
  • weld-on

13 6731121

  • 6731121 - PLUG RECESSED PIPE
  • Was 11F12
