Bobcat
/
443
/

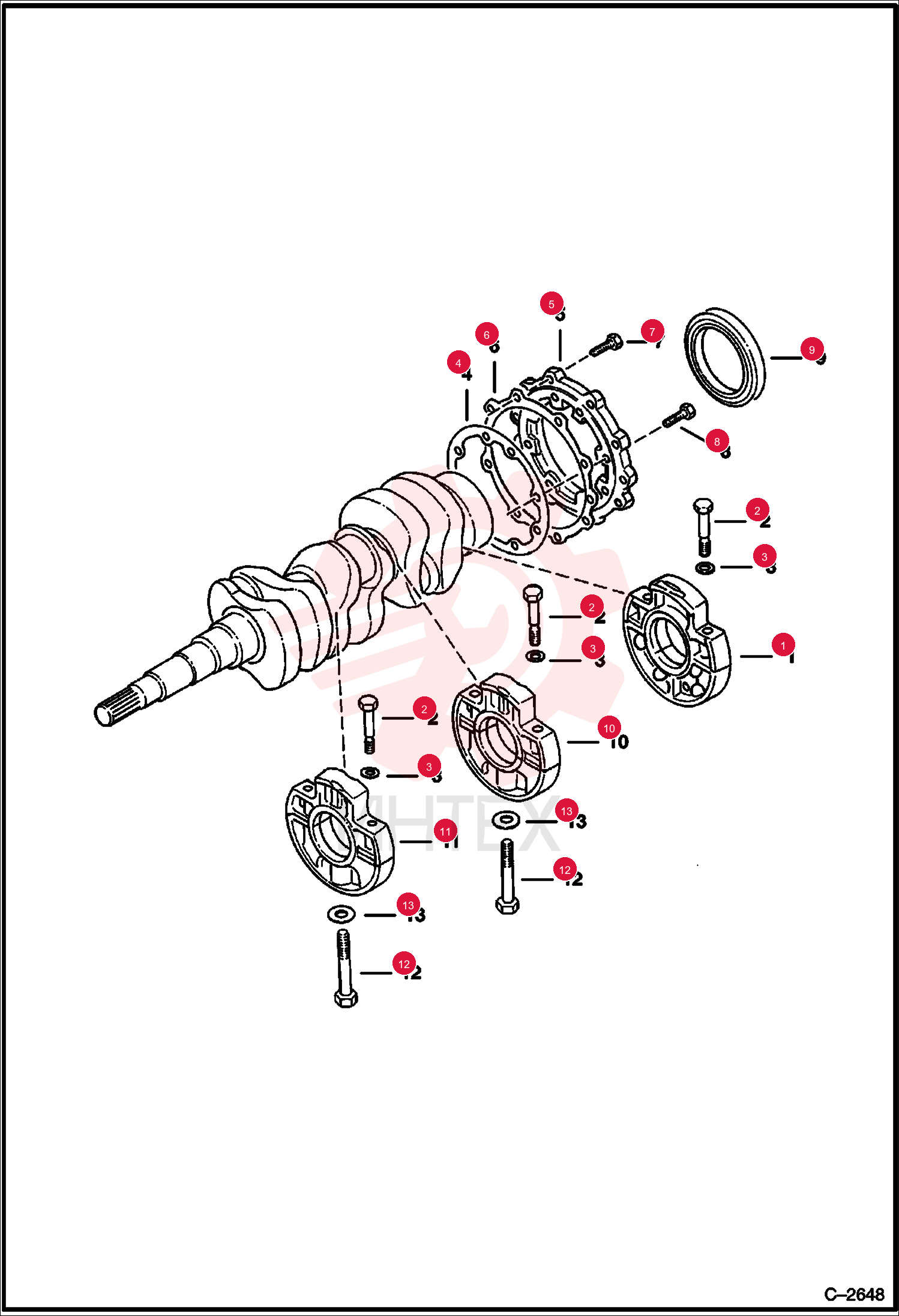

CASE 6598968 (2)

CASE 6598968 (2)

CASE 6598968 (2)

1 6598968

  • 6598968 - CASE

2 6652601

  • 6652601 - BOLT
  • Washer Head - Was 6649307

3 3974098

  • 3974098 - WASHER

4 6666793

  • 6666793 - GASKET
  • Was 6599106

5 6630198

  • 6630198 - COVER
  • Was 6666768

6 6666768

  • 6666768 - GASKET
  • Was 6599107

7 1CM625

  • 1CM625 - BOLT
  • Was 4CM625

8 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

9 3986831

  • 3986831 - OIL SEAL

10 6652604

  • 6652604 - HOUSING
  • Was 3974103B

11 6652608

  • 6652608 - HOUSING
  • Was 6598994

12 6632561

  • 6632561 - BOLT
  • Washer Head - Was 6652607

13 1CM845

  • 1CM845 - BOLT
  • Use W/Ref. 13

14 3974105

  • 3974105 - WASHER
