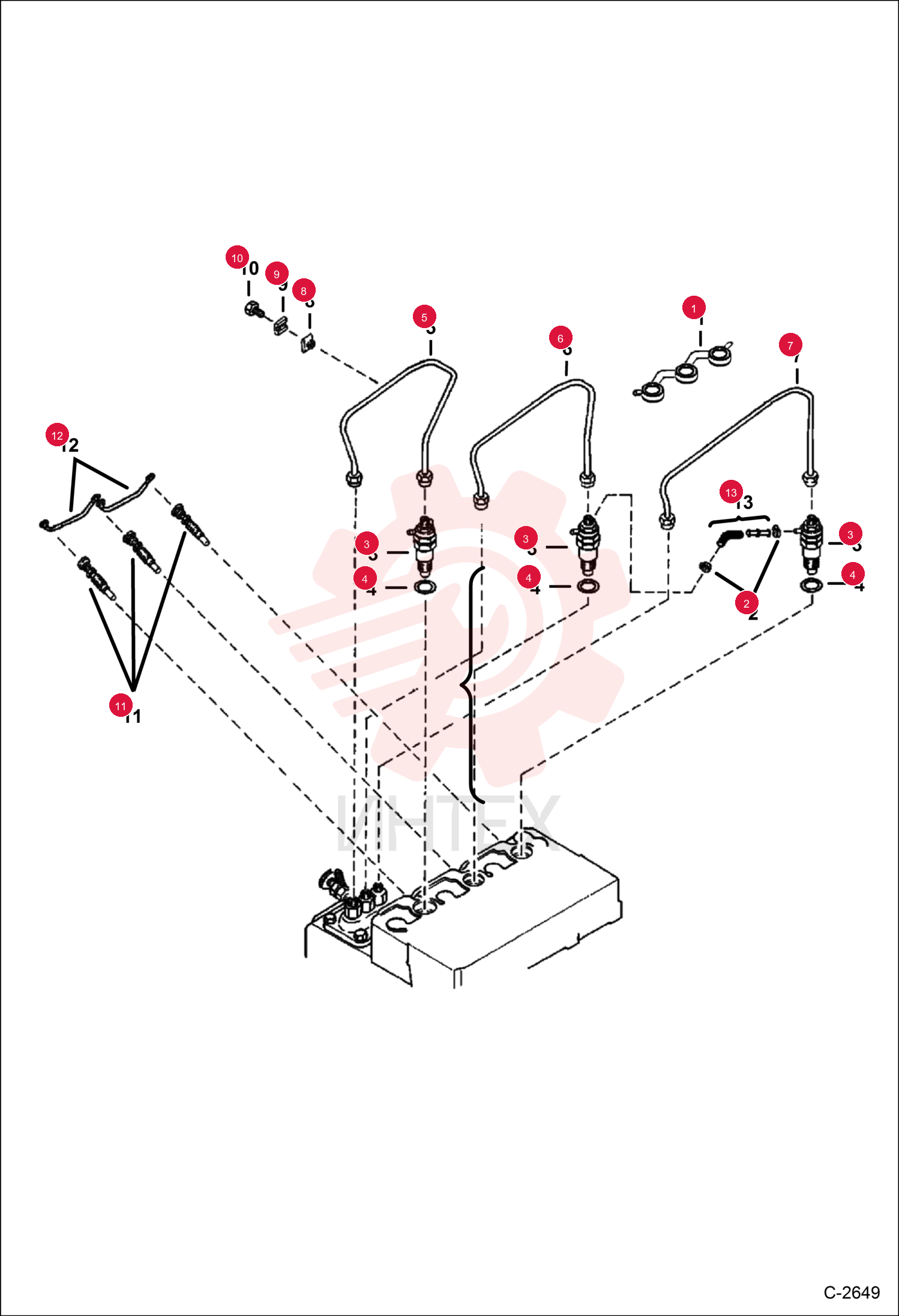

PIPE 6649315

PIPE 6649315

PIPE 6649315

1 6649315

  • 6649315 - PIPE
  • injector return line

2 6654718

  • 6654718 - CLAMP 5
  • pipe - Was 6680795

3 3974254

  • 3974254 - INJECTOR
  • FUEL ASSY

4 1527153020

  • 1527153020 - ФОРСУНКА
  • KUBOTA

5 9430610328

  • 9430610328 - ФОРСУНКА
  • BOSCH

6 7000065209

  • 7000065209 - ФОРСУНКА
  • KUBOTA

7 3974254REM

  • 3974254REM - INJECTOR FUEL

8 3974255

  • 3974255 - WASHER

9 6599129

  • 6599129 - TUBE

10 6599130

  • 6599130 - PIPE

11 6599132

  • 6599132 - PIPE

12 6652688

  • 6652688 - CLAMP
  • Was 3974258B

13 6652689

  • 6652689 - CLAMP

14 3974260

  • 3974260 - SCREW

15 6599047

  • 6599047 - GLOW PLUG
  • 10.5 V

16 6653575

  • 6653575 - GLOW PLUG
  • 12.5 V - heats up faster

17 6652742

  • 6652742 - WIRE
  • Was 3974262B
