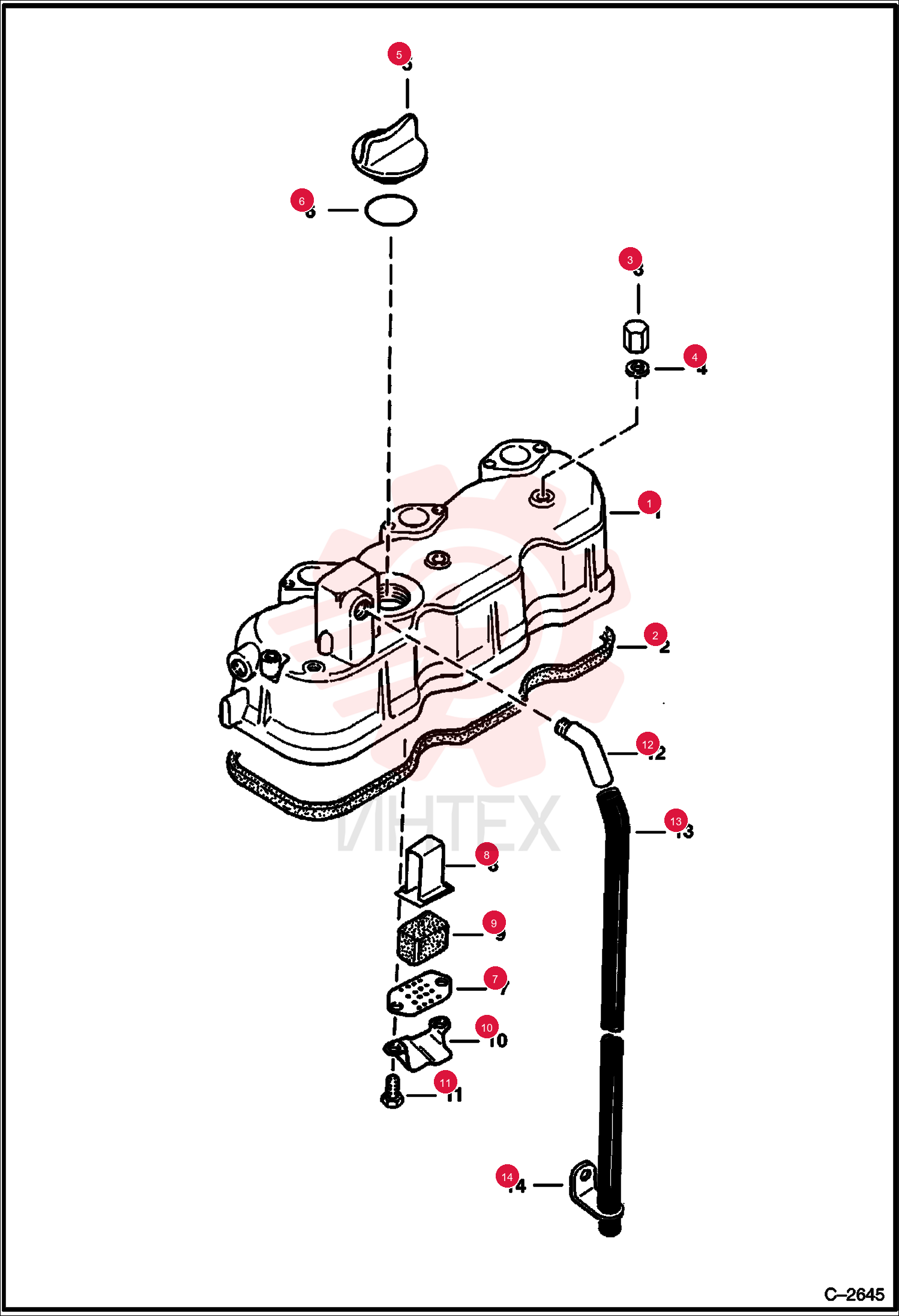

COVER 6657054 (1)

COVER 6657054 (1)

COVER 6657054 (1)

1 6657054

  • 6657054 - COVER
  • Was 6630199

2 6599112

  • 6599112 - GASKET

3 6657050

  • 6657050 - CAP

4 6599116

  • 6599116 - GASKET

5 6685924

  • 6685924 - OIL FILL CAP
  • oil filler - Was 6652653

6 3966602

  • 3966602 - O RING
  • oil fill plug

7 6599045

  • 6599045 - PLATE

8 3974925

  • 3974925 - PLATE

9 3974926

  • 3974926 - BREATHER

10 6599046

  • 6599046 - SHIELD

11 3975436

  • 3975436 - SCREW
  • W/washer

12 6652624

  • 6652624 - CONNECTOR
  • Was 3974929B

13 3974930

  • 3974930 - PIPE
  • Was 6599998

14 6599125

  • 6599125 - CLAMP
