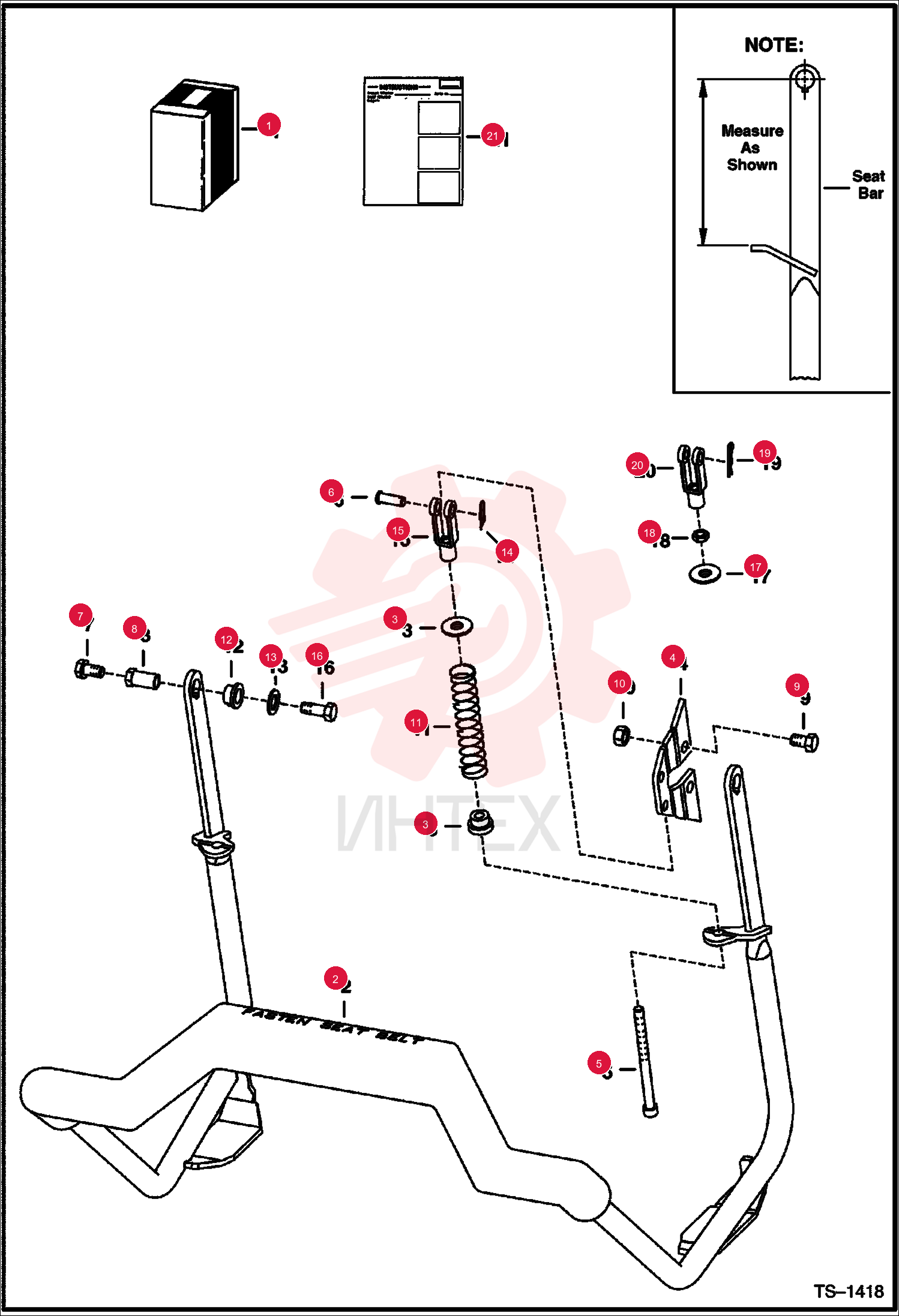

KIT, SEAT BAR 6713852 (1)

KIT, SEAT BAR 6713852 (1)

KIT, SEAT BAR 6713852 (1)

1 6713852

  • 6713852 - KIT
  • SEAT BAR
  • Ref. 2 - 18 & 21

2 6713886

  • 6713886 - ARM ASSY SEAT BAR

3 6710659

  • 6710659 - BUSHING

4 6710660

  • 6710660 - MOUNT SPRING

5 6713887

  • 6713887 - SCREW SOCKET CAP
  • Was 6711897

6 4F6106

  • 4F6106 - PIN HARDENED CLEVIS

7 35C608

  • 35C608 - BOLT

8 6706962

  • 6706962 - BUSHING PIVOT

9 17C712

  • 17C712 - BOLT

10 91D7

  • 91D7 - NUT

11 6701535

  • 6701535 - SPRING CENTERING

12 6680441

  • 6680441 - BUSHING KEYED
  • Was 6664882

13 25E17

  • 25E17 - WASHER FLAT PLAIN

14 6631418

  • 6631418 - RING RUE
  • Use W/ 6713886 seat bar

15 6713589

  • 6713589 - CLEVIS ROD END
  • Use W/ 6713886 seat bar - 2
  • 09" (53
  • 1 mm) long

16 17C612

  • 17C612 - SCREW HEX CAP

17 6571991

  • 6571991 - GUIDE

18 8D6

  • 8D6 - NUT HEX JAM
  • jam

19 1306637

  • 1306637 - PIN HAIR
  • Cotter - Use W/ NLA 6711870 seat bar - not in kit

20 2J6208

  • 2J6208 - YOKE
  • Use W/ NLA 6711870 seat bar - 2.85" (72
  • 4 mm) long - not in kit

21 6900096

  • 6900096 - INSTRUCTIONS
