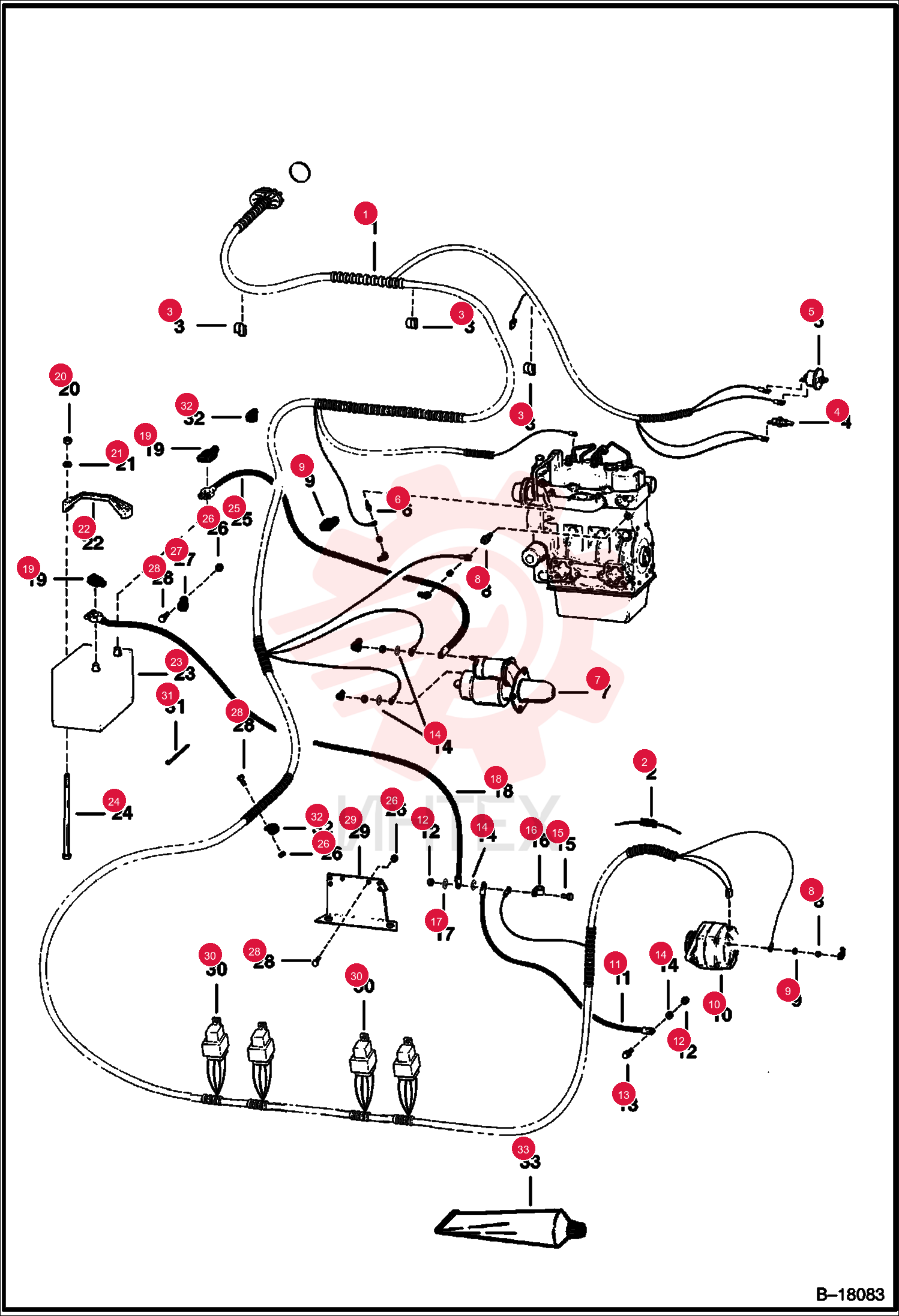

HARNESS 6703688

HARNESS 6703688

HARNESS 6703688

1 6703688

  • 6703688 - HARNESS
  • engine

2 6705156

  • 6705156 - HARNESS
  • engine

3 3675725

  • 3675725 - DIODE

4 6599698

  • 6599698 - CLIP

5 7251584

  • 7251584 - SWITCH
  • TEMP
  • hyd temp - Was 6632633

6 6671062

  • 6671062 - SWITCH
  • PRESS OIL HYD
  • hydro. pressure - Was 6664577

7 6658818

  • 6658818 - SENDER TEMP
  • eng temp - threaded connector

8 6969775

  • 6969775 - SWITCH
  • OIL PRESSURE
  • engine oil pressure - Was 6652576

9 31H42

  • 31H42 - CLIP

10 6565170

  • 6565170 - CABLE
  • neg

11 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

12 84G3712

  • 84G3712 - SCREW THD ROLLING TT

13 6E6

  • 6E6 - WASHER

14 17C618

  • 17C618 - BOLT

15 30H42

  • 30H42 - CLAMP

16 25E17

  • 25E17 - WASHER FLAT PLAIN

17 6514559

  • 6514559 - CABLE

18 2356058

  • 2356058 - BOOT

19 59D5

  • 59D5 - NUT LOCK HEX PT

20 25E15

  • 25E15 - WASHER FLAT PLAIN

21 6569203

  • 6569203 - CLAMP BATTERY

22 6630155

  • 6630155 - CAP
  • gang - Poison

23 7312552

  • 7312552 - BATTERY 650 CCA DRY
  • - Was 6674687

24 6630154

  • 6630154 - CAP
  • gang - Danger

25 6557450

  • 6557450 - CABLE

26 85D4

  • 85D4 - NUT 5

27 31H17

  • 31H17 - CLAMP

28 17C410

  • 17C410 - BOLT 10

29 6564401

  • 6564401 - MOUNT

30 6651975

  • 6651975 - SWITCH
  • RELAY MAGNETIC

31 6610510

  • 6610510 - STRAP
  • TIE 10
  • Was 6591255

32 30H54

  • 30H54 - CLIP

33 6599360

  • 6599360 - SEALANT
  • ELEC .3 OZ
  • electrical - tube - 3 oz
