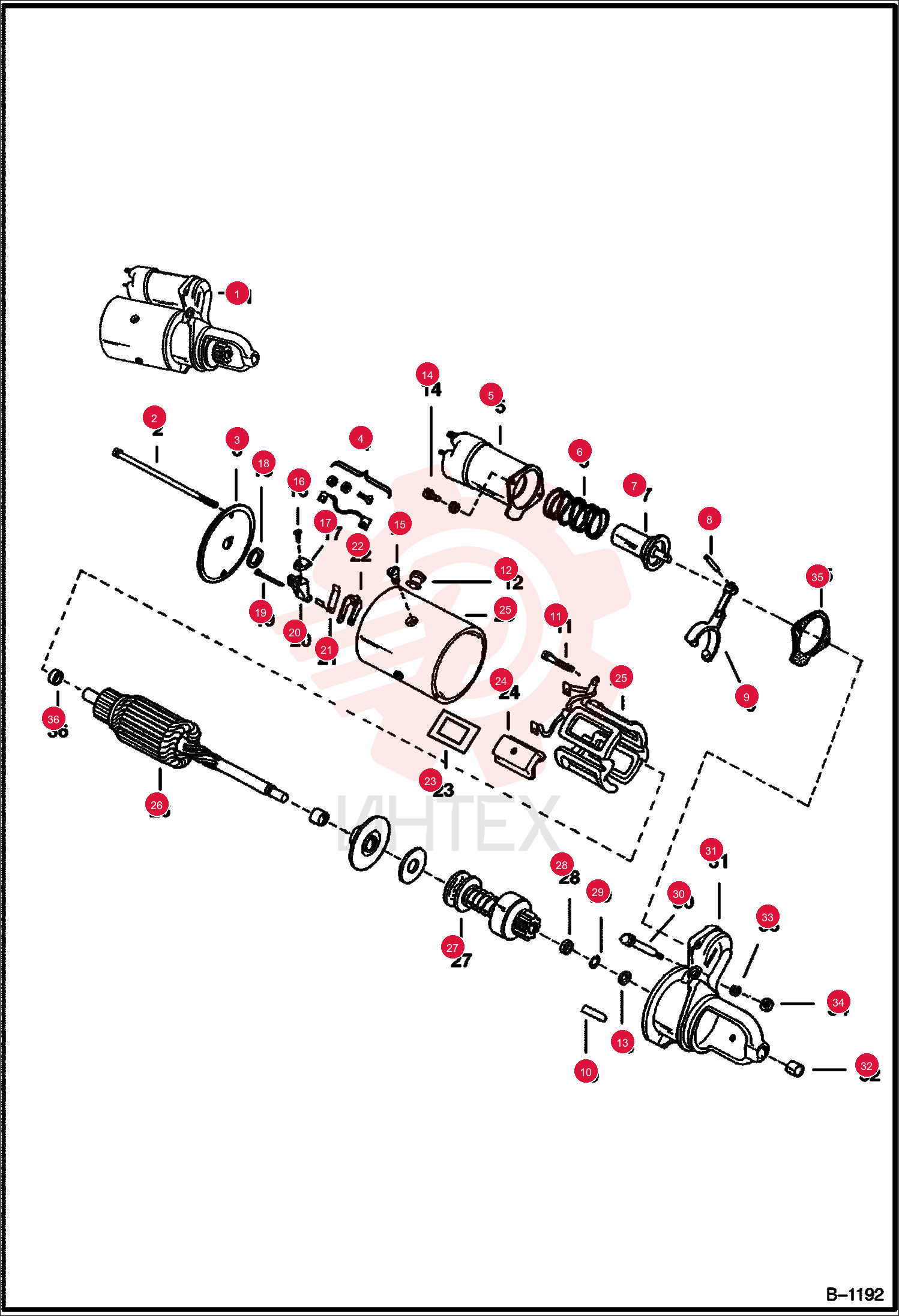

STARTER 108/40 6671014REM (2)

STARTER 108/40 6671014REM (2)

STARTER 108/40 6671014REM (2)

1 6671014REM

  • 6671014REM - STARTER 108/40
  • 1998281 - remanufactured - Was 6599152REM

2 6671014

  • 6671014 - STARTER
  • REM
  • 10465417 - remanufactured

3 880609

  • 880609 - BOLT

4 877650

  • 877650 - SUPPORT

5 6599449

  • 6599449 - SOLENOID

6 888968

  • 888968 - SPRING

7 6630417

  • 6630417 - PLUNGER
  • 1998281

8 6658903

  • 6658903 - PLUNGER
  • 10455340 - Was 6659803

9 896126

  • 896126 - LEVER

10 850313

  • 850313 - PIN

11 60G1008

  • 60G1008 - SCREW

12 850363

  • 850363 - COLLAR

13 43G412

  • 43G412 - SCREW

14 859377

  • 859377 - SCREW

15 85G808

  • 85G808 - SCREW

16 871518

  • 871518 - BRUSH

17 871521

  • 871521 - PIN

18 6630402

  • 6630402 - BR HOLDER

19 6656399

  • 6656399 - SPRING

20 880603

  • 880603 - HOLDER

21 6658901

  • 6658901 - COIL
  • 10455340

22 884569

  • 884569 - ARMATURE
  • 1998281

23 6598231

  • 6598231 - DRIVE
  • drive - 1998281

24 6658902

  • 6658902 - DRIVE
  • drive - 10455340

25 942142

  • 942142 - SNAP RING

26 884576

  • 884576 - BOLT.

27 6598476

  • 6598476 - HSG DRIVE
  • drive - 1998281

28 860669

  • 860669 - BUSHING
  • D.E.

29 23E5

  • 23E5 - L WASHER

30 991374

  • 991374 - GASKET

31 874935

  • 874935 - BUSHING
  • W/Ref. 3
