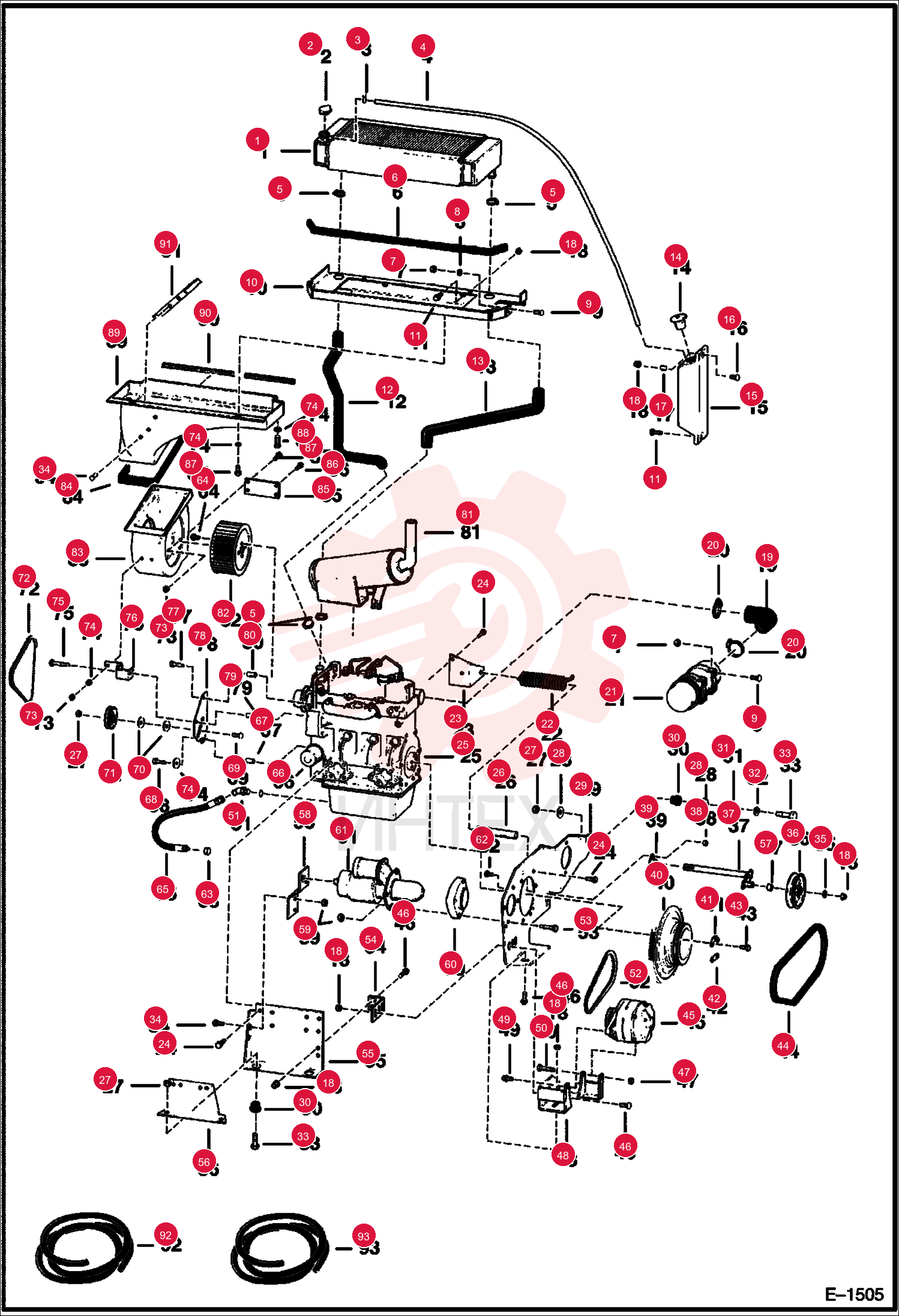

RAD CAP 6666606 (2)

RAD CAP 6666606 (2)

RAD CAP 6666606 (2)

1 6666606

  • 6666606 - RAD CAP
  • Was 6630156

2 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

3 42H16

  • 42H16 - CLAMP
  • HOSE 5
  • worm gear

4 61D5

  • 61D5 - NUT HEX FINISHED GR5

5 6565433

  • 6565433 - WASHER

6 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

7 6564382

  • 6564382 - MOUNT

8 84G3716

  • 84G3716 - SCREW THD ROLLING TT

9 6564052

  • 6564052 - HOSE

10 6564053

  • 6564053 - HOSE

11 6702797

  • 6702797 - CAP
  • Was 6558658

12 6593012

  • 6593012 - TANK

13 7C620

  • 7C620 - BOLT

14 6593013

  • 6593013 - BUSHING

15 83D6

  • 83D6 - LKNUT HEX FLG GR8

16 6702304

  • 6702304 - HOSE

17 42H32

  • 42H32 - HS CLAMP5
  • Was 6513595

18 6678782

  • 6678782 - SPRING
  • Was 6564892

19 6564584

  • 6564584 - BRACKET

20 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP

21 6564788

  • 6564788 - TUBE

22 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

23 6564692

  • 6564692 - WASHER

24 6565273

  • 6565273 - MTG PLATE

25 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • Rubber

26 6565472

  • 6565472 - WASHER

27 25E31

  • 25E31 - WASHER

28 17C844

  • 17C844 - BOLT

29 6630207

  • 6630207 - RIVET POP
  • Was 6512797

30 27E6

  • 27E6 - WASHER HARDEN PLAIN
  • Use W/NLA 6564011

31 6689692

  • 6689692 - PULLEY
  • IDLER
  • Was 6689645

32 6532348

  • 6532348 - BRACKET
  • W/stud

33 61D4

  • 61D4 - NUT 5

34 6599468

  • 6599468 - BEARING

35 6563960

  • 6563960 - FLYWHEEL
  • W/Ring Gear

36 6562279

  • 6562279 - RING GEAR

37 6598847

  • 6598847 - WASHER

38 6598846

  • 6598846 - WASHER

39 6661636

  • 6661636 - BOLT
  • Washer face

40 6564091

  • 6564091 - BELT

41 6557432

  • 6557432 - BOLT

42 85D6

  • 85D6 - NUT PRETRQ HEX LOCK
  • For Motorola Alternator

43 6564548

  • 6564548 - BRACKET

44 35C520

  • 35C520 - BOLT
  • For Motorola Alternator

45 17C652

  • 17C652 - BOLT
  • For Motorola Alternator

46 18K6

  • 18K6 - FITTING
  • W/79K-8 O-Ring

47 6520553

  • 6520553 - BELT
  • 28.5'' (723
  • 9 mm) - Motorola

48 17C636

  • 17C636 - BOLT

49 6565062

  • 6565062 - BRACE

50 6563925

  • 6563925 - MOUNT

51 6564401

  • 6564401 - MOUNT

52 6532347

  • 6532347 - TUBE SPACER
  • Use W/NLA 6564011

53 6564383

  • 6564383 - BRACKET

54 61D6

  • 61D6 - NUT HEX FINISHED GR5

55 6562480

  • 6562480 - BLOCK

56 17C412

  • 17C412 - BOLT 5

57 29CM612

  • 29CM612 - BOLT
  • FLANGED
  • Was 6652762

58 36K6

  • 36K6 - CAP

59 6529958

  • 6529958 - HOSE

60 6564971

  • 6564971 - SPACER

61 1CM690

  • 1CM690 - BOLT

62 37C828

  • 37C828 - BOLT

63 27E10

  • 27E10 - WASHER

64 6564012

  • 6564012 - PULLEY

65 6564738

  • 6564738 - BELT
  • FAN

66 83D5

  • 83D5 - LKNUT HEX FLG GR8

67 25E15

  • 25E15 - WASHER FLAT PLAIN

68 17C556

  • 17C556 - BOLT

69 6564374

  • 6564374 - MOUNT

70 1CM640

  • 1CM640 - SCREW HEX CAP

71 6564378

  • 6564378 - MOUNT

72 6564972

  • 6564972 - SPACER

73 6564970

  • 6564970 - SPACER

74 6564564

  • 6564564 - MUFFLER
  • spark arrestor

75 6564993

  • 6564993 - BLOWER
  • WHEEL

76 6565070

  • 6565070 - HOUSING

77 6564375

  • 6564375 - MOUNT

78 1CM812

  • 1CM812 - SCREW HEX HD 8.8

79 17C512

  • 17C512 - BOLT 5

80 17C508

  • 17C508 - BOLT

81 6565069

  • 6565069 - HOUSING

82 6565060

  • 6565060 - SCREEN
  • baffle

83 6513152

  • 6513152 - SEAL
  • BULK/FT 25
  • bulk - sold per foot

84 6511855

  • 6511855 - TAPE BULK/FT 25'
  • self adhesive - sold per foot
