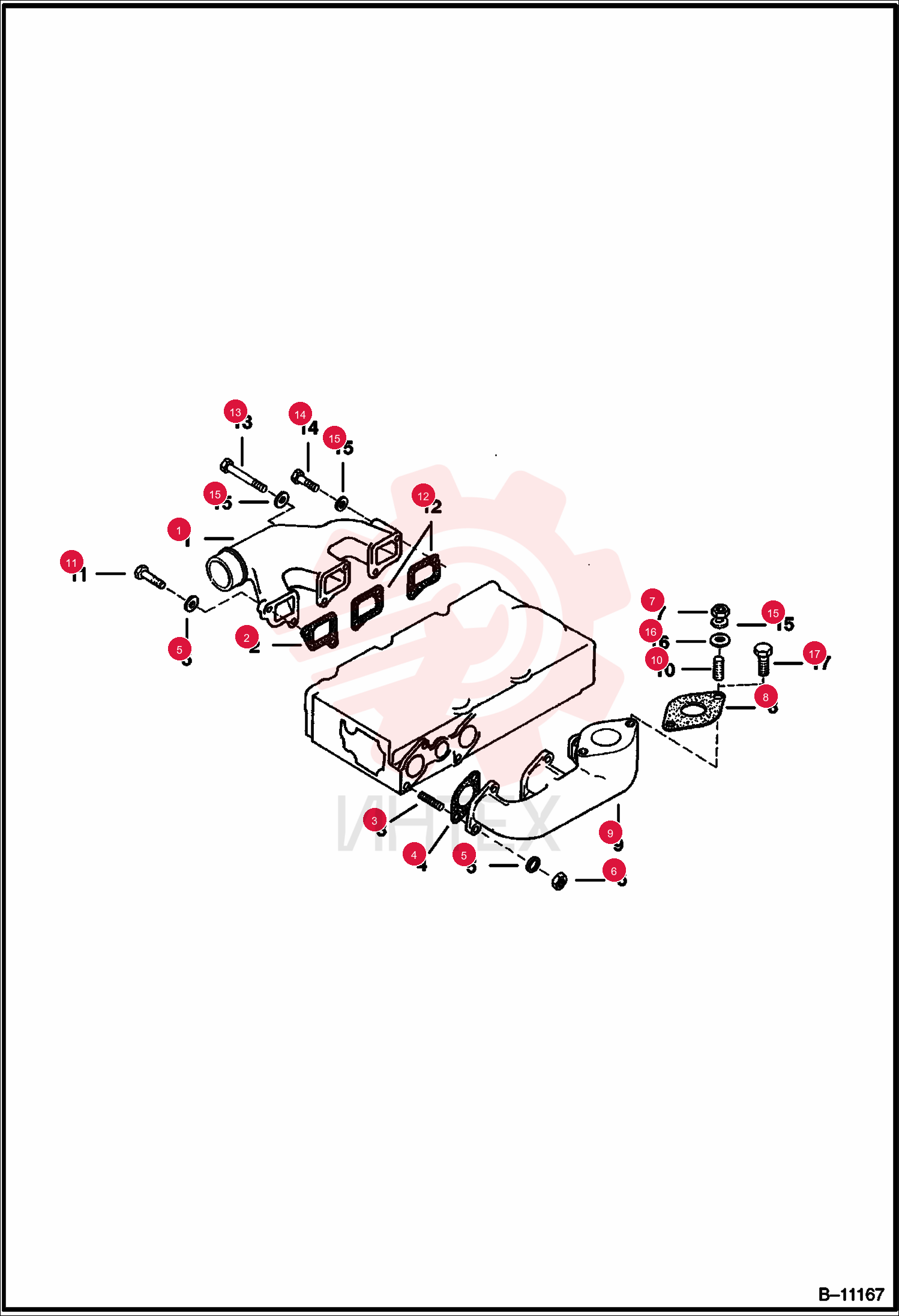

MANIFOLD 6630009 (2)

MANIFOLD 6630009 (2)

MANIFOLD 6630009 (2)

1 6630009

  • 6630009 - MANIFOLD
  • intake - Was 6658501

2 6666770

  • 6666770 - GASKET
  • Was 3974147B

3 6599076

  • 6599076 - STUD

4 6666796

  • 6666796 - GASKET
  • Was 6652613

5 6EM60

  • 6EM60 - WASHER

6 1DM6

  • 1DM6 - NUT

7 2DM10

  • 2DM10 - NUT

8 3974507

  • 3974507 - GASKET

9 6599997

  • 6599997 - MANIFOLD
  • exhaust

10 6630195

  • 6630195 - STUD

11 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

12 6666771

  • 6666771 - GASKET
  • Was 3974148B

13 6599068

  • 6599068 - BOLT

14 8EM100

  • 8EM100 - WASHER

15 1EM100

  • 1EM100 - WASHER PLAIN

16 6653582

  • 6653582 - BOLT
