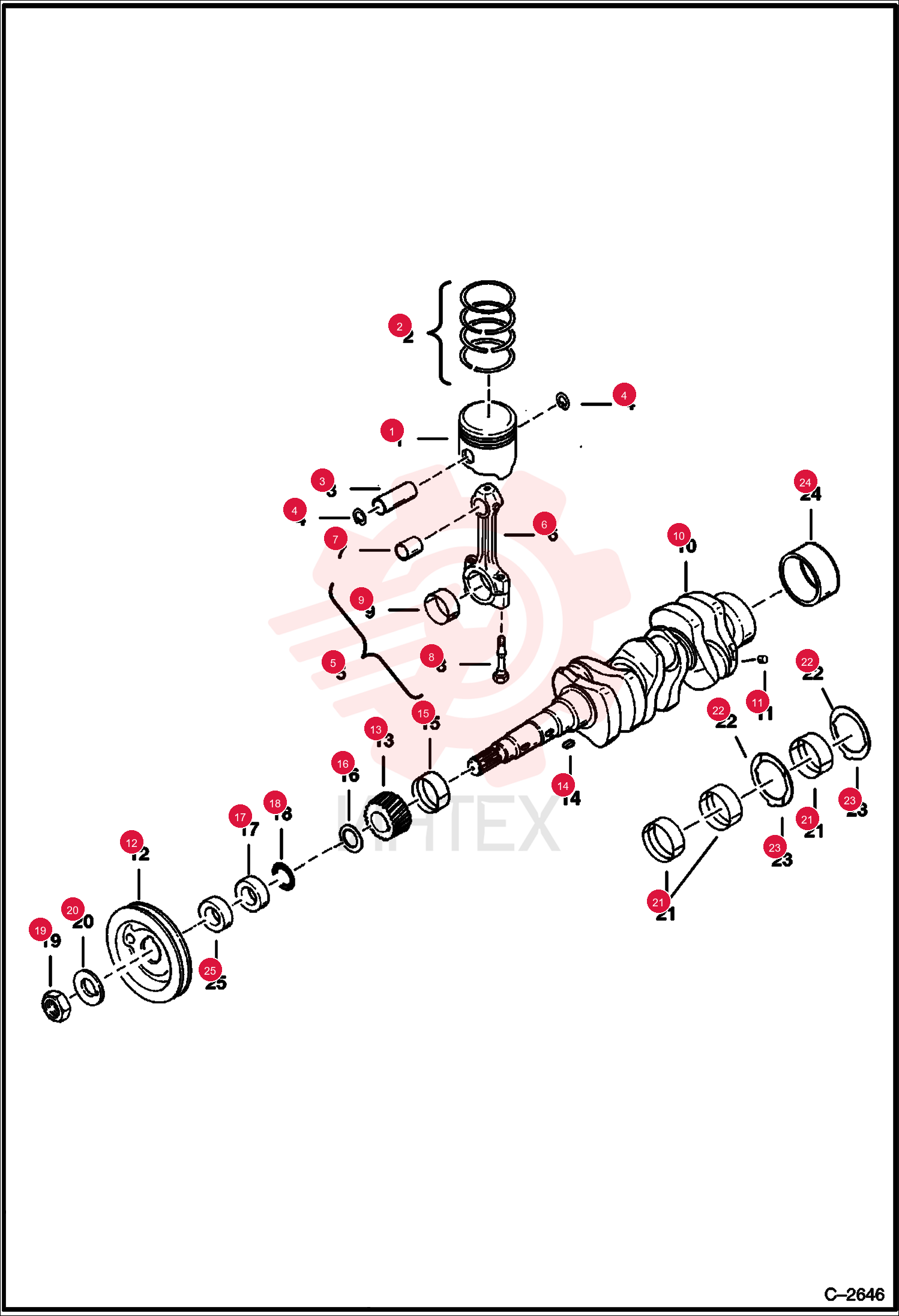

PISTON 6599988

PISTON 6599988

PISTON 6599988

1 6599988

  • 6599988 - PISTON
  • Std. - Piston only

2 6599916

  • 6599916 - PISTON
  • (.0197 in. 0.5 mm) Oversize Piston only

3 6599991

  • 6599991 - RING
  • piston (Std.) For one Piston

4 6599917

  • 6599917 - RINGS
  • piston (.0197 in. 0.5 mm)

5 6599917

  • 6599917 - RINGS
  • Oversize - For one Piston

6 3974215

  • 3974215 - PIN

7 3974216

  • 3974216 - RING

8 6660334

  • 6660334 - ROD ASSEMBLY
  • Ref. 6-9 - Was 6652629

9 6513621

  • 6513621 - BEARING
  • 1 Bushing only

10 6652630

  • 6652630 - BOLT
  • Was 3974220B

11 6660331

  • 6660331 - BEARING
  • rod - Std. - Was 6599021

12 6660332

  • 6660332 - BEARING
  • rod (.079 in. - 0.2 mm) - Was 6513619

13 6660333

  • 6660333 - BEARING
  • rod (.0157 in. - 0.4 mm) - Was 6599926

14 6652631

  • 6652631 - CRANKSHAFT
  • W/Ref. 11 & 24

15 6652633

  • 6652633 - Ball 1/4"
  • must be installed before using crankshaft

16 6630008

  • 6630008 - PULLEY

17 6598981

  • 6598981 - GEAR

18 3974226

  • 3974226 - KEY

19 6660329

  • 6660329 - BEARING
  • main (0.2 mm) - Was 6513607

20 6660330

  • 6660330 - BEARING
  • main (0.4 mm) - Was 6513610

21 6660328

  • 6660328 - BEARING
  • main - std. - Was 3974231B

22 6598979

  • 6598979 - SLINGER OIL

23 6630197

  • 6630197 - COLLAR

24 3966521

  • 3966521 - O'RING

25 3DM20

  • 3DM20 - NUT
  • Was 3974229

26 3974230

  • 3974230 - WASH

27 7023260

  • 7023260 - ВКЛАДЫШИ КОРЕННЫЕ (STD) 6670412
  • BOBCAT

28 6670412

  • 6670412 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • BOBCAT

29 1526123480

  • 1526123480 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • KUBOTA

30 1527423480

  • 1527423480 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • KUBOTA

31 1569423480

  • 1569423480 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • KUBOTA

32 1686123480

  • 1686123480 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • KUBOTA

33 MS60010

  • MS60010 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • AUTOWELT

34 6660336

  • 6660336 - ВКЛАДЫШИ КОРЕННЫЕ (-0.20mm)
  • BOBCAT

35 1526123930

  • 1526123930 - ВКЛАДЫШИ КОРЕННЫЕ (-0.20mm)
  • KUBOTA

36 1527423910

  • 1527423910 - ВКЛАДЫШИ КОРЕННЫЕ (-0.20mm)
  • KUBOTA

37 1569423930

  • 1569423930 - ВКЛАДЫШИ КОРЕННЫЕ (-0.20mm)
  • KUBOTA

38 MS60011

  • MS60011 - ВКЛАДЫШИ КОРЕННЫЕ (-0.20mm)
  • AUTOWELT

39 6660337

  • 6660337 - ВКЛАДЫШИ КОРЕННЫЕ (-0.40mm)
  • BOBCAT

40 1526123940

  • 1526123940 - ВКЛАДЫШИ КОРЕННЫЕ (-0.40mm)
  • KUBOTA

41 1527423920

  • 1527423920 - ВКЛАДЫШИ КОРЕННЫЕ (-0.40mm)
  • KUBOTA

42 1569423940

  • 1569423940 - ВКЛАДЫШИ КОРЕННЫЕ (-0.40mm)
  • KUBOTA

43 MS60012

  • MS60012 - ВКЛАДЫШИ КОРЕННЫЕ (-0.40mm)
  • AUTOWELT

44 6652636

  • 6652636 - ПОЛУКОЛЬЦА УПОРНЫЕ ВЕРХНИЕ (STD)
  • BOBCAT

45 1526123530

  • 1526123530 - ПОЛУКОЛЬЦА УПОРНЫЕ ВЕРХНИЕ (STD)
  • KUBOTA

46 1526123533

  • 1526123533 - ПОЛУКОЛЬЦА УПОРНЫЕ ВЕРХНИЕ (STD)
  • KUBOTA

47 TW60040

  • TW60040 - ПОЛУКОЛЬЦА УПОРНЫЕ ВЕРХНИЕ (STD)
  • AUTOWELT

48 6513613

  • 6513613 - BEARING
  • thrust (+0.2 mm) 1/2 Thrust Washer

49 6513615

  • 6513615 - BEARING
  • thrust (+0.4 mm) 1/2 Thrust Washer

50 7000492

  • 7000492 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD) 6652637
  • BOBCAT

51 1526123540

  • 1526123540 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD)
  • KUBOTA

52 1526123543

  • 1526123543 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD)
  • KUBOTA

53 1526123544

  • 1526123544 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD)
  • KUBOTA

54 TW60050

  • TW60050 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD)
  • AUTOWELT

55 6513616

  • 6513616 - BEARING
  • thrust (+0.4 mm)(1/2 Thrust Washer)

56 6698149

  • 6698149 - WASHER
  • THRUST SIDE
  • thrust - (+0.2 mm) 1/2 thrust washer - Was 6513614

57 3986830

  • 3986830 - SLEEVE

58 6631475

  • 6631475 - SEAL
