Главная
/
Бренды
/
Bobcat
/
443
/

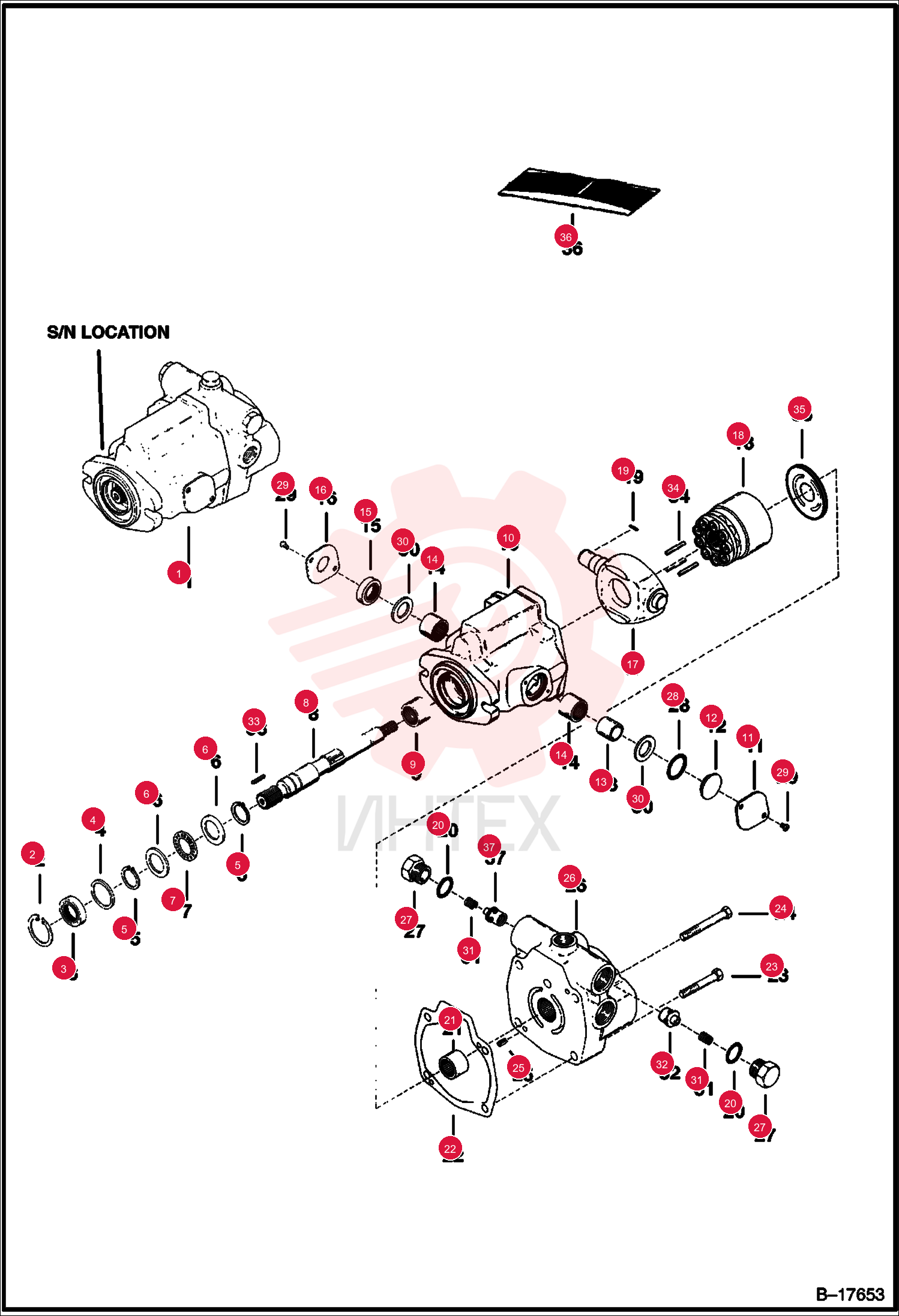

PUMP 6670853 (1)

PUMP 6670853 (1)

PUMP 6670853 (1)

1 6670853

  • 6670853 - PUMP
  • New - 70145-LBG-02 - Pulley end of pump - Pumps are gray in color

2 661415

  • 661415 - SNAP RING

3 6598875

  • 6598875 - WASHER

4 710776

  • 710776 - RING
  • RETAINER

5 6598878

  • 6598878 - RACE

6 3292657

  • 3292657 - BEARING
  • thrust

7 851239

  • 851239 - BEARING

8 6598887

  • 6598887 - COVER

9 6648789

  • 6648789 - COVER

10 6598883

  • 6598883 - RACE

11 654387

  • 654387 - BEARING

12 6598886

  • 6598886 - COVER

13 6598892

  • 6598892 - CAM
  • yoke

14 6598893

  • 6598893 - ROTAT.KIT

15 6630170

  • 6630170 - KEY

16 654386

  • 654386 - BEARING

17 17C532

  • 17C532 - BOLT 5

18 17C540

  • 17C540 - BOLT

19 214028

  • 214028 - PIN

20 6667997

  • 6667997 - BACKPLATE
  • back - W/Ref. 21

21 6598877

  • 6598877 - PLUG
  • W/Ref. 20

22 25K40108

  • 25K40108 - O RING 10

23 6598881

  • 6598881 - SCREW

24 6598876

  • 6598876 - WASHER

25 6598882

  • 6598882 - SPRING

26 6598890

  • 6598890 - SEAT

27 6598880

  • 6598880 - KEY

28 6654126

  • 6654126 - PIN

29 6667998

  • 6667998 - PLATE

30 6598896

  • 6598896 - KIT
  • SEAL
  • Ref. 2
  • 3
  • 5
  • 15
  • 20
  • 22 & 28

31 6632063

  • 6632063 - VALVE
  • RELIEF
  • 3400 PSI
