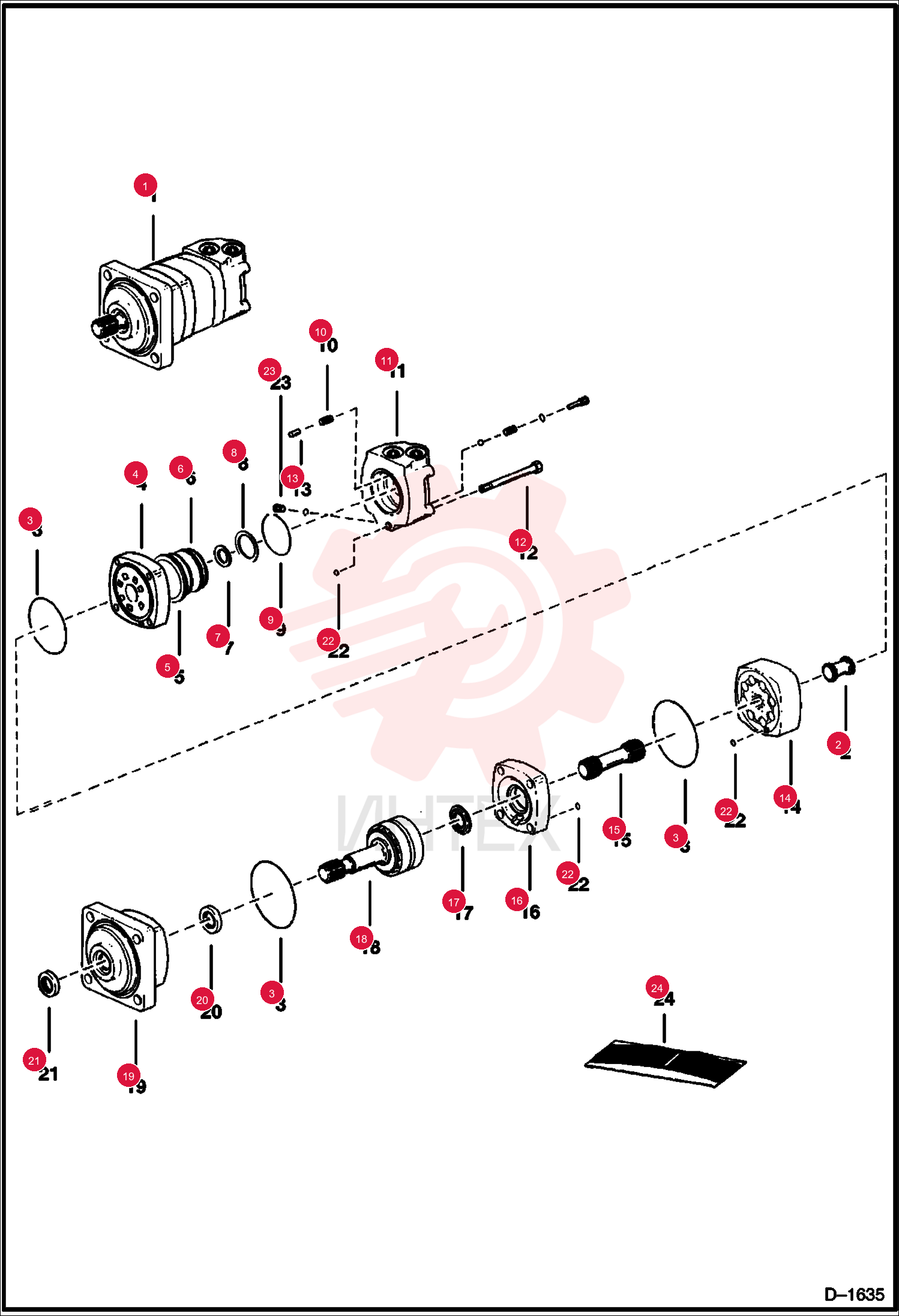

MOTOR, DRIVE HYD 6632177 (1)

MOTOR, DRIVE HYD 6632177 (1)

MOTOR, DRIVE HYD 6632177 (1)

1 6632177

  • 6632177 - MOTOR
  • DRIVE HYD

2 1992084

  • 1992084 - DR VALVE

3 6632287

  • 6632287 - 6656368
  • Valve

4 6632288

  • 6632288 - VALVE

5 6630027

  • 6630027 - PLATE
  • balancing

6 1992088

  • 1992088 - SPRING

7 6632348

  • 6632348 - HOUSING
  • W/Ref. 23 & 24

8 6632349

  • 6632349 - BOLT

9 1992102

  • 1992102 - PIN

10 6632347

  • 6632347 - GEROLER

11 6630032

  • 6630032 - SHAFT
  • DRIVE

12 6632286

  • 6632286 - PLATE
  • WEAR
  • wear

13 6632345

  • 6632345 - SHAFT ASSEMBLY
  • W/Shaft

14 6632346

  • 6632346 - HOUSING

15 1992104

  • 1992104 - PLUG
  • W/O-Ring

16 6648973

  • 6648973 - KIT
  • SEAL
  • Ref. 3
  • 7-9
  • 17 & 20-22 - Was 6630079
