Bobcat
/
443
/

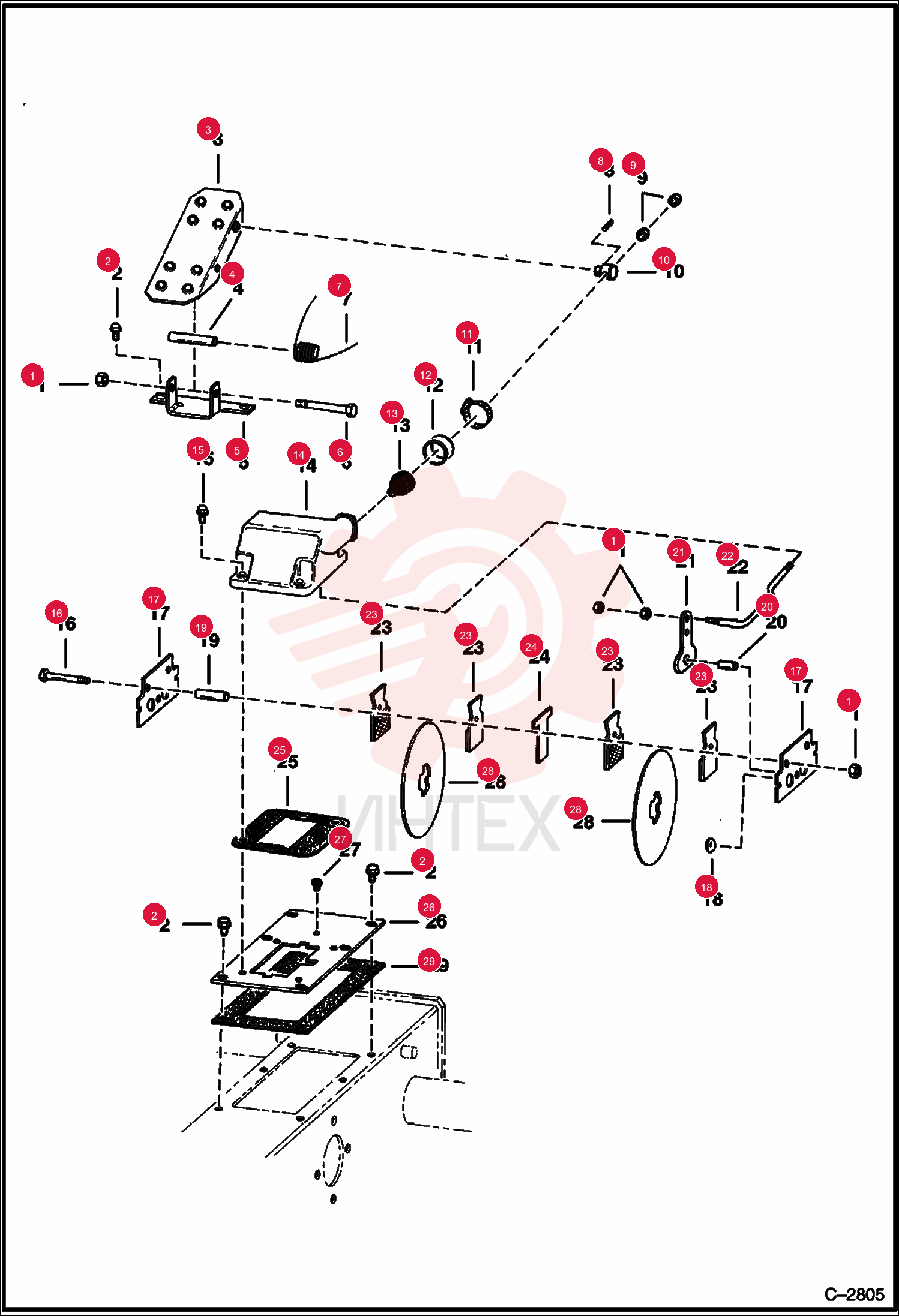

NUT PRETRQ HEX LOCK 85D6 (1)

NUT PRETRQ HEX LOCK 85D6 (1)

NUT PRETRQ HEX LOCK 85D6 (1)

1 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

2 84G3716

  • 84G3716 - SCREW THD ROLLING TT

3 6563792

  • 6563792 - PEDAL

4 6564389

  • 6564389 - BUSHING

5 6563793

  • 6563793 - MOUNT

6 17C664

  • 17C664 - BOLT

7 6598800

  • 6598800 - SPRING

8 14J2512

  • 14J2512 - PIN 5

9 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

10 6563178

  • 6563178 - PIVOT

11 42H32

  • 42H32 - HS CLAMP5

12 6565117

  • 6565117 - TUBE

13 6531388

  • 6531388 - COVER
  • Was 6563794

14 84G3728

  • 84G3728 - SCREW THD ROLLING TT

15 17C652

  • 17C652 - BOLT

16 6563789

  • 6563789 - PLATE

17 6563786

  • 6563786 - CAM

18 6564390

  • 6564390 - BUSHING

19 14J3713

  • 14J3713 - PIN

20 6598483

  • 6598483 - LEVER

21 6563790

  • 6563790 - LINKAGE

22 6513603

  • 6513603 - PAD
  • BRAKE

23 6592880

  • 6592880 - SHIM BRK
  • .0179 (
  • 45 mm)

24 6563787

  • 6563787 - SHIM
  • .0329 (
  • 83 mm)

25 6531389

  • 6531389 - SEAL
  • Was 6563788

26 6563791

  • 6563791 - COVER

27 6558506

  • 6558506 - PLUG

28 6559206

  • 6559206 - DISC
  • BRAKE
  • Was 6529272

29 6593418

  • 6593418 - GASKET
