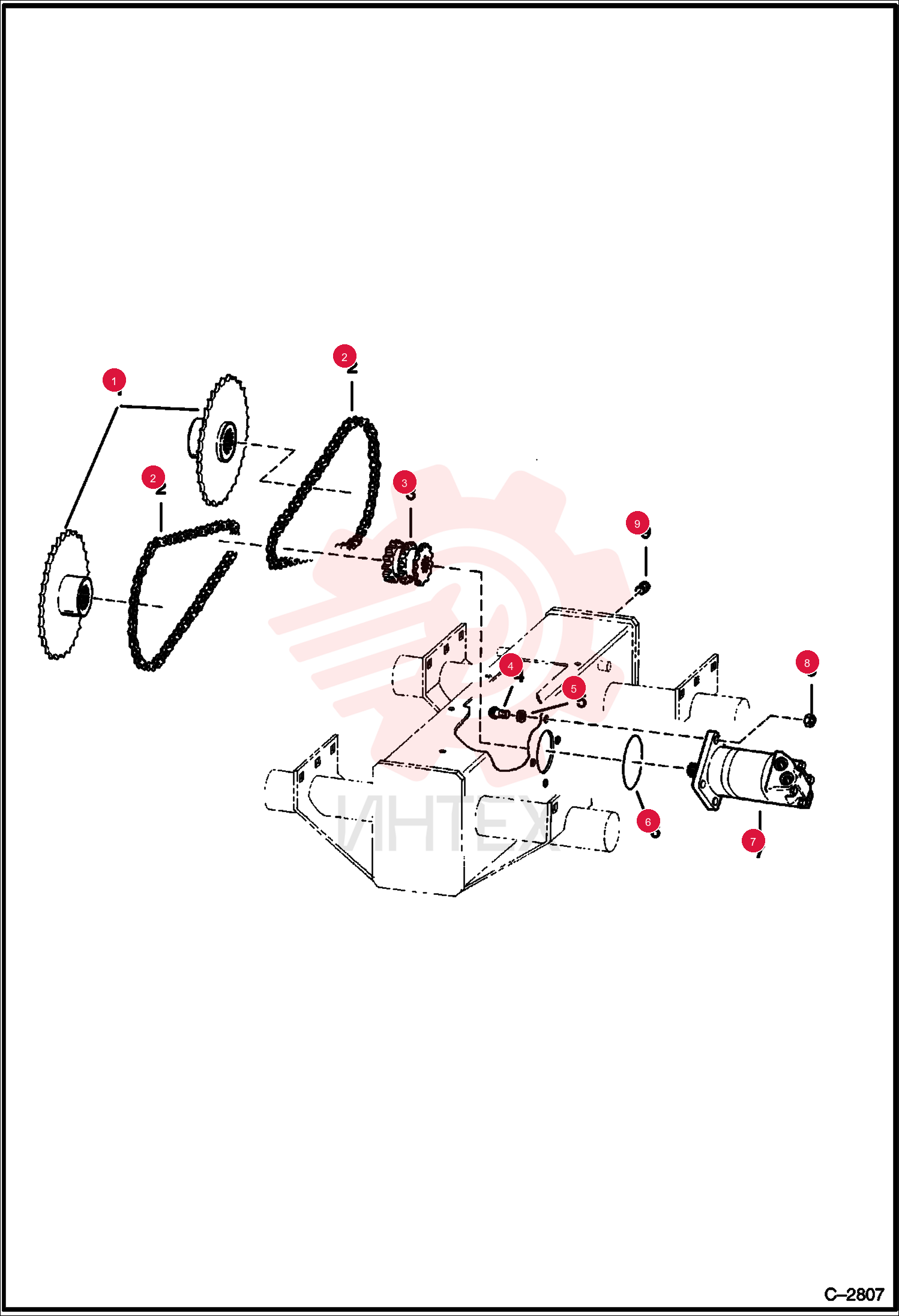

SPROCKET MACH S70 7134079 (1)

SPROCKET MACH S70 7134079 (1)

SPROCKET MACH S70 7134079 (1)

1 7134079

  • 7134079 - SPROCKET MACH S70
  • Was 6563798

2 7101393

  • 7101393 - CHAIN DRIVE
  • Tsubaki - endless - 60HS

3 6690989

  • 6690989 - CHAIN
  • Tsubaki - W/link

4 6515191

  • 6515191 - LINK
  • connector - Diamond - Use W/ 7101393 chain

5 6691089

  • 6691089 - LINK
  • connector - Tsubaki - Use W/ 6690989 chain

6 6564739

  • 6564739 - SPROCKET

7 6564741

  • 6564741 - BOLT WHEEL

8 6564740

  • 6564740 - WASHER

9 25K40400

  • 25K40400 - O RING 10

10 64D8

  • 64D8 - NUT

11 6731121

  • 6731121 - PLUG RECESSED PIPE
  • Was 11F12
