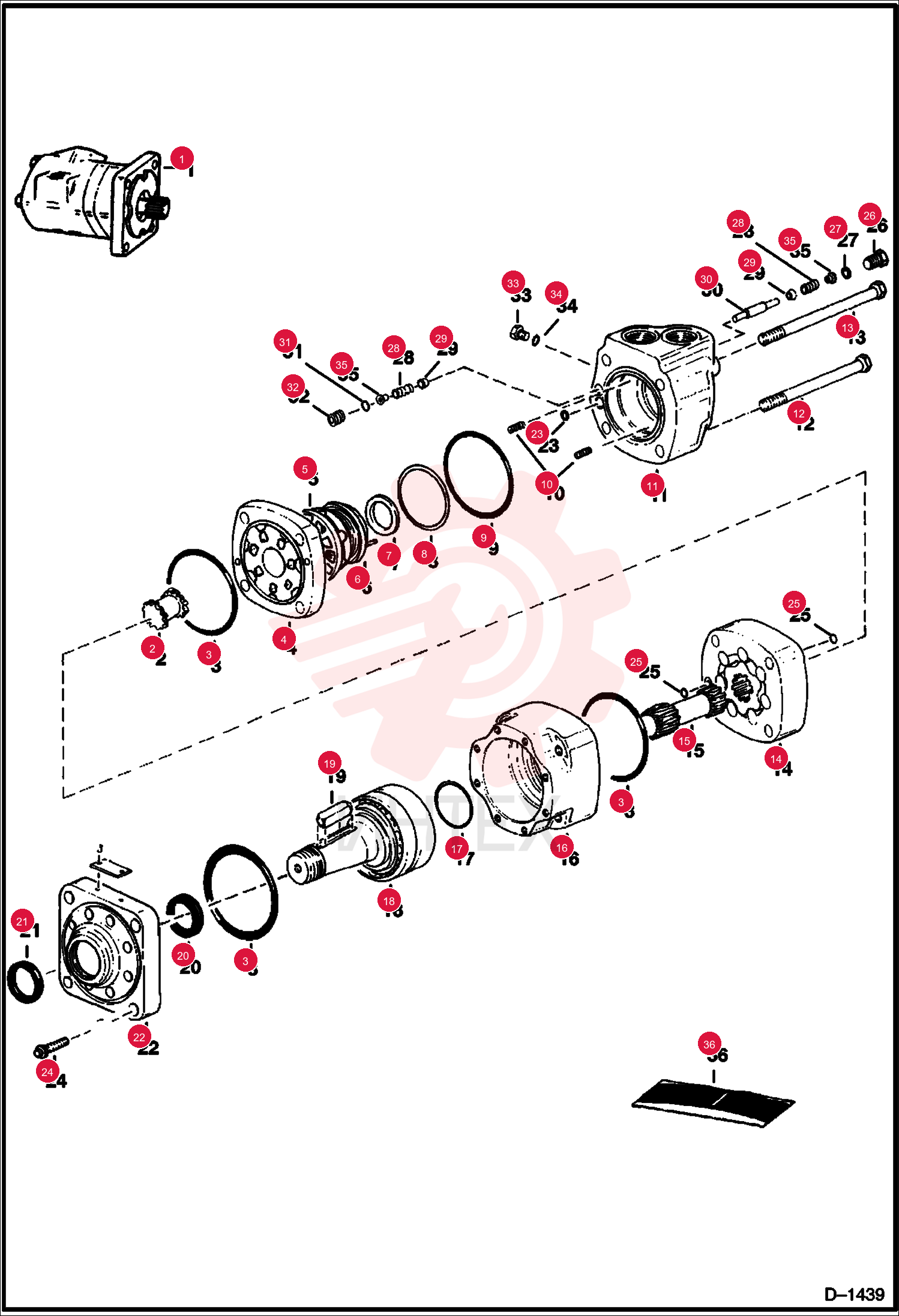

MOTOR, DRIVE HYD 6599718 (2)

MOTOR, DRIVE HYD 6599718 (2)

MOTOR, DRIVE HYD 6599718 (2)

1 6599718

  • 6599718 - MOTOR
  • DRIVE HYD
  • New

2 6630245REM

  • 6630245REM - MOTOR
  • REMAN HYD
  • remanufactured - Was 6630245

3 6513506

  • 6513506 - DRIVE

4 6513505

  • 6513505 - PLATE
  • valve

5 6513507

  • 6513507 - VALVE

6 6630042

  • 6630042 - PLATE
  • balancing

7 6190121

  • 6190121 - SPRING

8 6599605

  • 6599605 - HOUSING
  • valve

9 18C788

  • 18C788 - BOLT

10 18C792

  • 18C792 - BOLT

11 6513504

  • 6513504 - GEROLER

12 6630373

  • 6630373 - SHAFT

13 6513501

  • 6513501 - HOUSING
  • bearing

14 6630088

  • 6630088 - SHAFT ASSEMBLY
  • drive

15 6630089

  • 6630089 - KEY

16 6630087

  • 6630087 - COVER
  • FRONT
  • front

17 94G516

  • 94G516 - BOLT 5

18 47K5

  • 47K5 - PLUG
  • W/Ref. 27

19 79K6

  • 79K6 - O RING 10

20 6513533

  • 6513533 - SPRING

21 6513532

  • 6513532 - POPPET

22 6513510

  • 6513510 - PISTON

23 58K012

  • 58K012 - O-RING 10

24 47K2

  • 47K2 - PLUG
  • W/Ref. 34

25 79K3

  • 79K3 - O RING 10

26 6561218

  • 6561218 - SLEEVE

27 7010366

  • 7010366 - KIT
  • SEAL
  • Ref. 3
  • 7 - 9
  • 17
  • 20
  • 21
  • 23 & 25 - Was 6632040
