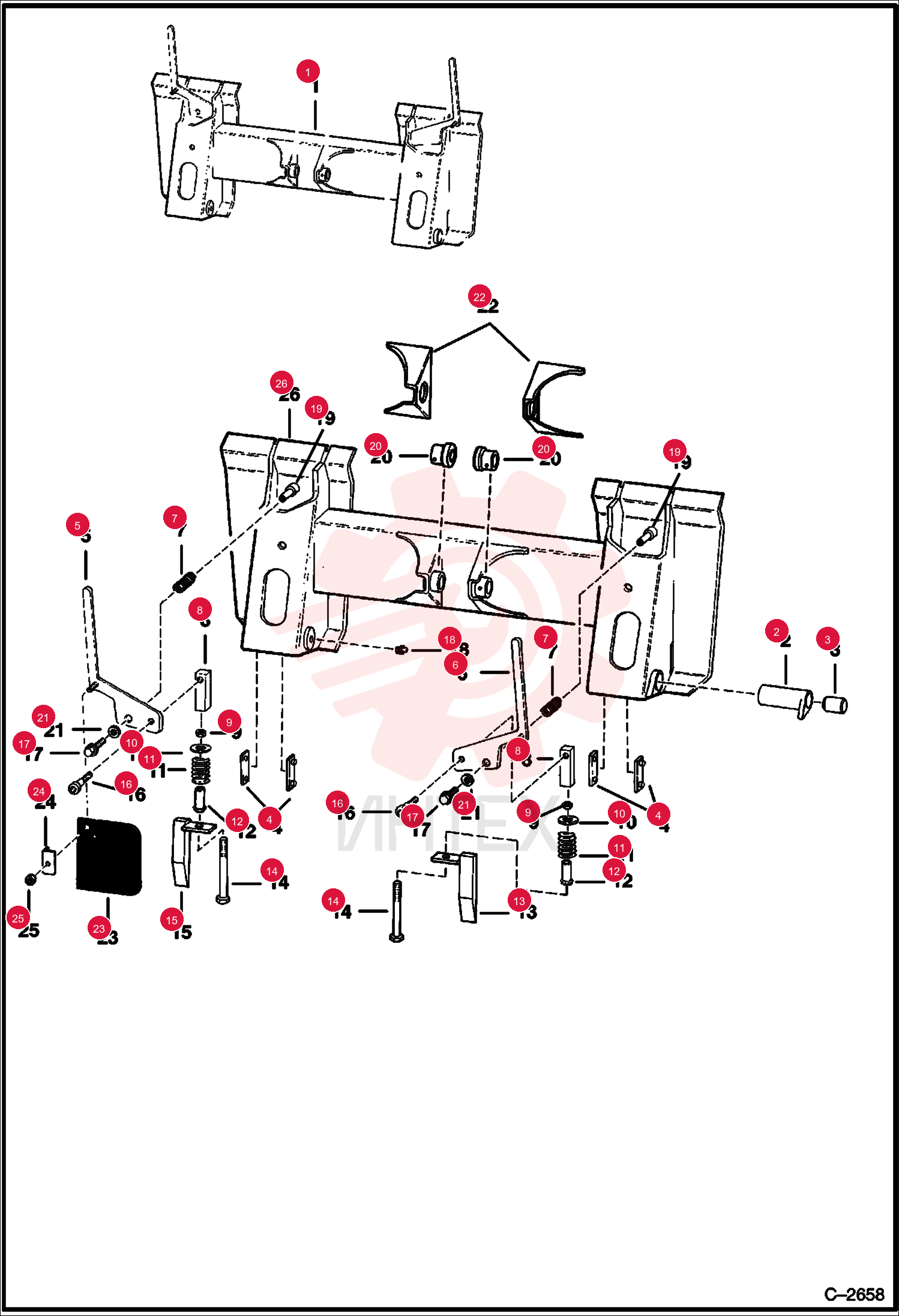

BUSHING 6567114 (2)
1 6567114
- 6567114 - BUSHING
- W/Ref. 3
2 6562067
- 6562067 - BUSHING
- PRESS FIT
3 6562026
- 6562026 - INSERT 5
4 6563106
- 6563106 - LEVER
- L.H. - Was 6579698
5 6563107
- 6563107 - LEVER
- RH - 6579697
6 6704453
- 6704453 - SPRING COMPRESSION
- Was 6503387
7 6565186
- 6565186 - BLOCK
- BOB-TACH WEDGE
- Use W/17C-884 Bolt Only
8 7D8
- 7D8 - NUT 5
9 1303141
- 1303141 - SPACER
10 6578253
- 6578253 - SPRING
- COMPRESSION
- Was 6562018
11 6562019
- 6562019 - GUIDE
12 6565189
- 6565189 - WEDGE
- RH
13 17C880
- 17C880 - BOLT
- 1/2" x 5"(127mm) long
14 17C884
- 17C884 - BOLT
- 1/2" x 5-1/4" (133
- 35mm) long - Use W/6565186 Block
15 6565190
- 6565190 - WEDGE
- LH
16 38C810
- 38C810 - BOLT
- Shoulder - Was 661846B
17 35C610
- 35C610 - BOLT 5
18 743332
- 743332 - FITTING
- GREASE 5
19 6562013
- 6562013 - STUD
20 6562642
- 6562642 - BUSHING
- WELD-ON
- Weld On
21 619021
- 619021 - WASHER
22 6563103
- 6563103 - COVER
- rubber
23 6563108
- 6563108 - ANGLE 5
24 85D6
- 85D6 - NUT PRETRQ HEX LOCK
