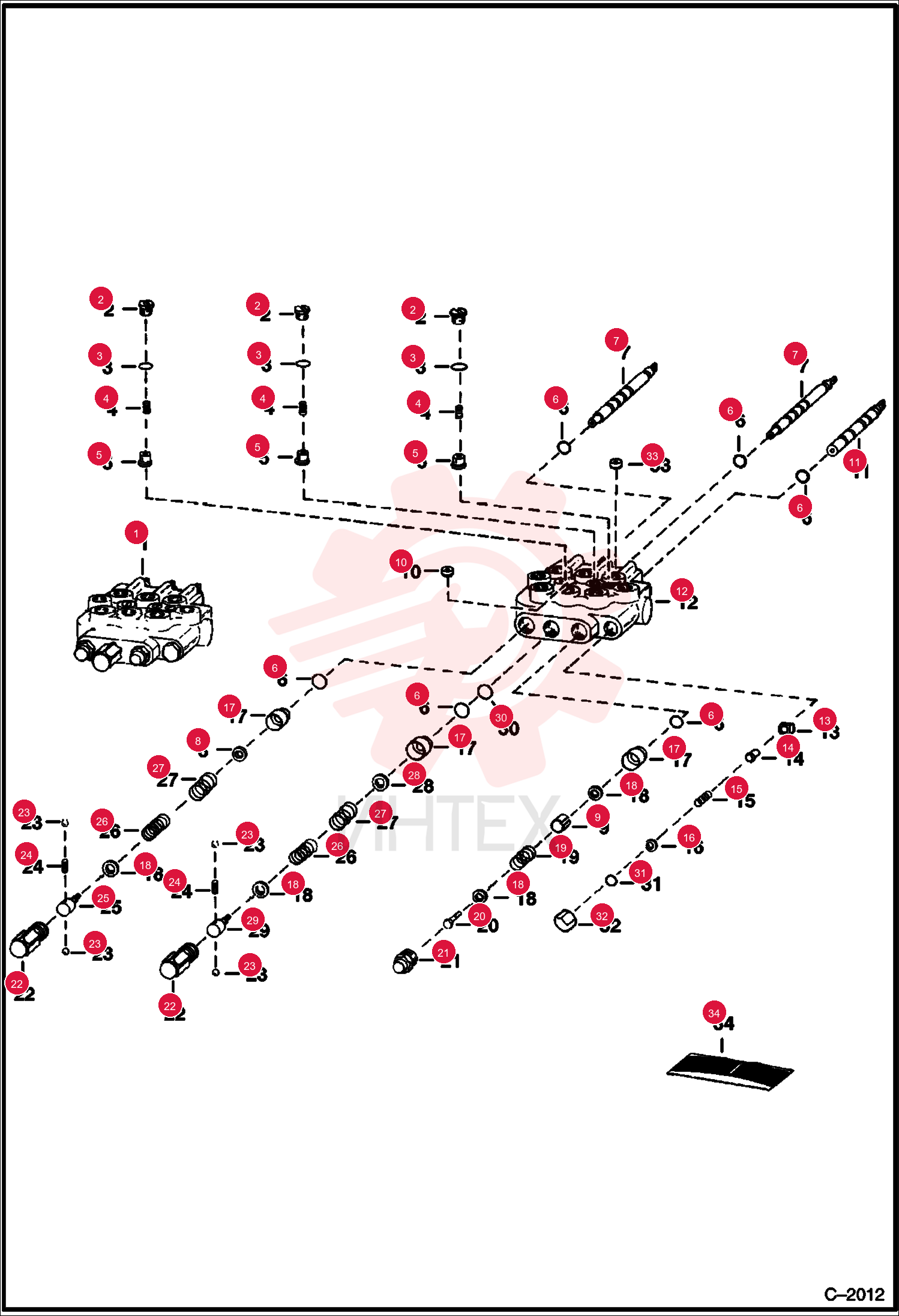

VALVE 6562031 (2)

VALVE 6562031 (2)

VALVE 6562031 (2)

1 6562031

  • 6562031 - VALVE
  • hydraulic

2 6632473

  • 6632473 - PLUG
  • W/Ref. 3 - Was 947754B

3 58K112

  • 58K112 - O RING 10

4 1550482

  • 1550482 - SPRING

5 4149071

  • 4149071 - PLUNGER L

6 6510804

  • 6510804 - WASHER

7 6512249

  • 6512249 - ORIFICE

8 6598214

  • 6598214 - SEAT

9 6598212

  • 6598212 - POPPET

10 6598210

  • 6598210 - SPRING

11 6598211

  • 6598211 - SHIM

12 6510809

  • 6510809 - BUSHING

13 5290338

  • 5290338 - WSH

14 6510858

  • 6510858 - SPRING

15 6511039

  • 6511039 - SCREW
  • spool

16 6510811

  • 6510811 - CAP

17 6510810

  • 6510810 - CAP

18 949093

  • 949093 - BALL

19 6510806

  • 6510806 - SPRING

20 6514705

  • 6514705 - SCREW
  • spool detent

21 6510807

  • 6510807 - SPRING

22 6512250

  • 6512250 - SPRING

23 6511034

  • 6511034 - WASHER

24 6511038

  • 6511038 - SCREW
  • spool detent

25 6598213

  • 6598213 - CAP

26 6599591

  • 6599591 - ORIFICE
  • 0.1015

27 6598220

  • 6598220 - SEAL KIT
  • Ref. 3
  • 6
  • 30 & 31
