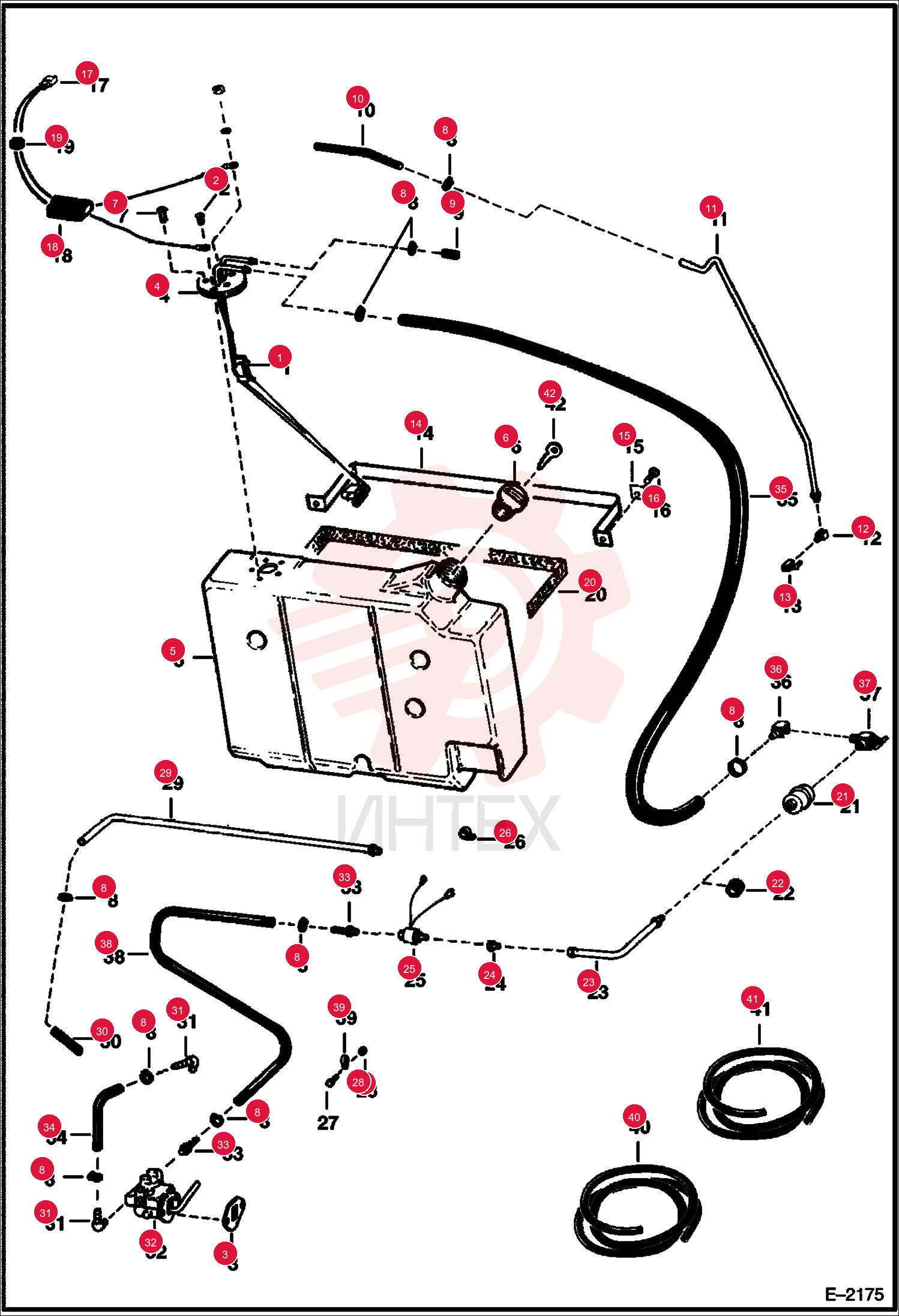

SENDER 6563210 (2)

SENDER 6563210 (2)

SENDER 6563210 (2)

1 6563210

  • 6563210 - SENDER
  • Fuel - includes gasket

2 85G1010

  • 85G1010 - SCREW

3 6512203

  • 6512203 - GASKET
  • Was 6599163

4 6630972

  • 6630972 - GASKET

5 6632468

  • 6632468 - FUEL CAP

6 6662770

  • 6662770 - CAP
  • LOCK
  • locking-Code PK510 - W/Ref. 42

7 85G1008

  • 85G1008 - SCREW

8 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

9 62F4

  • 62F4 - ELBOW

10 6562553

  • 6562553 - VALVE

11 6562559

  • 6562559 - BAND

12 6559447

  • 6559447 - WASHER

13 84G3716

  • 84G3716 - SCREW THD ROLLING TT

14 6560117

  • 6560117 - WIRE

15 6562606

  • 6562606 - SEAL

16 742876

  • 742876 - GROMMET

17 6591273

  • 6591273 - STRIPBULK
  • Was 6563233

18 6512106

  • 6512106 - FILTER
  • FUEL

19 6515603

  • 6515603 - GROMMET

20 6559152

  • 6559152 - TUBE

21 7024822

  • 7024822 - SOLENOID
  • FUEL
  • Was 6559117

22 30H18

  • 30H18 - CLAMP

23 17C412

  • 17C412 - BOLT 5

24 85D4

  • 85D4 - NUT 5

25 6515156

  • 6515156 - ELBOW

26 6598432

  • 6598432 - PUMP
  • FUEL

27 6513421

  • 6513421 - CONNECTOR

28 6598753

  • 6598753 - ELBOW

29 6512138

  • 6512138 - VALVE

30 30H54

  • 30H54 - CLIP

31 6577822

  • 6577822 - HOSE BULK
  • sold per foot - Was 6562515

32 6577821

  • 6577821 - HOSE
  • BULK
  • sold per foot - Was 672221

33 6654374

  • 6654374 - 2 KEYS
  • Code GC020

34 6587458

  • 6587458 - KEY CAP FUEL 2
  • Code PK510
