Bobcat
/
540
/

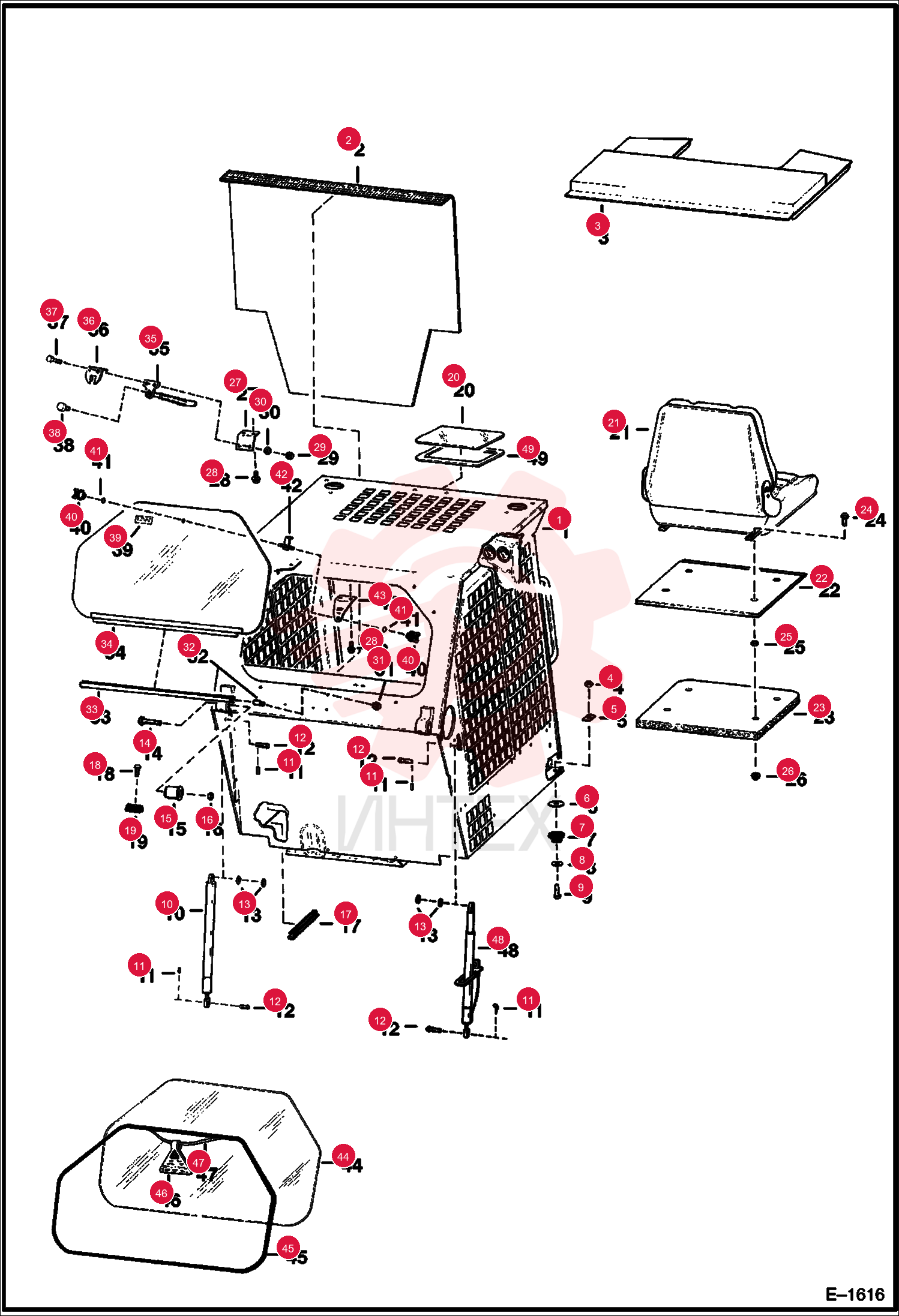

INSULATION 6576494

INSULATION 6576494

INSULATION 6576494

1 6576494

  • 6576494 - INSULATION
  • Was 6568179

2 6565373

  • 6565373 - INSULATION

3 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

4 6553709

  • 6553709 - WASHER RECTANGULAR

5 6543321

  • 6543321 - WASHER

6 6560633

  • 6560633 - DAMPER
  • VIBRATION

7 6515817

  • 6515817 - WASHER

8 17C840

  • 17C840 - BOLT

9 6700171

  • 6700171 - CYLINDER
  • GAS
  • W/O lock - Also Order 6675257 clevis - Was 6700000

10 6631418

  • 6631418 - RING RUE

11 6567743

  • 6567743 - PIN

12 6567604

  • 6567604 - SPACER

13 17C1056

  • 17C1056 - BOLT

14 6562602

  • 6562602 - BUSHING ISOLATOR
  • rubber

15 83D10

  • 83D10 - NUT 5

16 6555351

  • 6555351 - SEAL BULK/FT 15
  • bulk - sold per foot

17 84G2516

  • 84G2516 - SCREW THD ROLLING TT
  • Was 61G000416B

18 6568475

  • 6568475 - STOP

19 6705735

  • 6705735 - WINDOW TOP CAB
  • top - Use W/Ref. 49

20 6701986

  • 6701986 - WINDOW
  • TOP
  • top - not Use W/Ref. 49 - Was 6563391

21 6577439

  • 6577439 - INSULATION
  • Was 6567903

22 6577273

  • 6577273 - INSULATION
  • Was 6567902

23 35C516

  • 35C516 - SCREW HEX HD W/F GR5

24 61D5

  • 61D5 - NUT HEX FINISHED GR5

25 83D5

  • 83D5 - LKNUT HEX FLG GR8

26 6568540

  • 6568540 - MOUNT W L

27 84G3112

  • 84G3112 - SCREW THD ROLLING TT

28 50D10

  • 50D10 - LOCKNUT

29 25E10

  • 25E10 - WASHER FLAT PLAIN

30 59D4

  • 59D4 - NUT LOCK HEX PT

31 6576513

  • 6576513 - BOLT
  • Was 6630927

32 6630926

  • 6630926 - HINGE

33 6630925

  • 6630925 - WINDOW

34 85G1014

  • 85G1014 - SCREW

35 6571529

  • 6571529 - KNOB

36 58K109

  • 58K109 - O RING 10

37 6571532

  • 6571532 - BRACKET

38 6571533

  • 6571533 - MOUNT

39 6704891

  • 6704891 - WINDOW REAR
  • Was 6703021

40 6658352

  • 6658352 - MOULDING
  • bulk - sold per foot

41 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

42 6554149

  • 6554149 - CORD
  • bulk - sold per foot - Also Order Ref. 46 (6731478 exit tag)

43 6664351

  • 6664351 - MOULDING
  • Use W/cab headliner & Ref. 20 (6705735 window)

44 6665012

  • 6665012 - SEAL RUBBER
  • Use W/O cab headliner & Ref. 20 (6705735 window)
